AudioControl Three.1 - Wiring Examples; 4-Channel Amp and Subwoofer Wiring; Speaker Level Input Wiring

In-Dash
tm
THREE.1
Owner’s Enjoyment Manual
11
Four channel and subwoofer amplifier Using a factory installed source unit

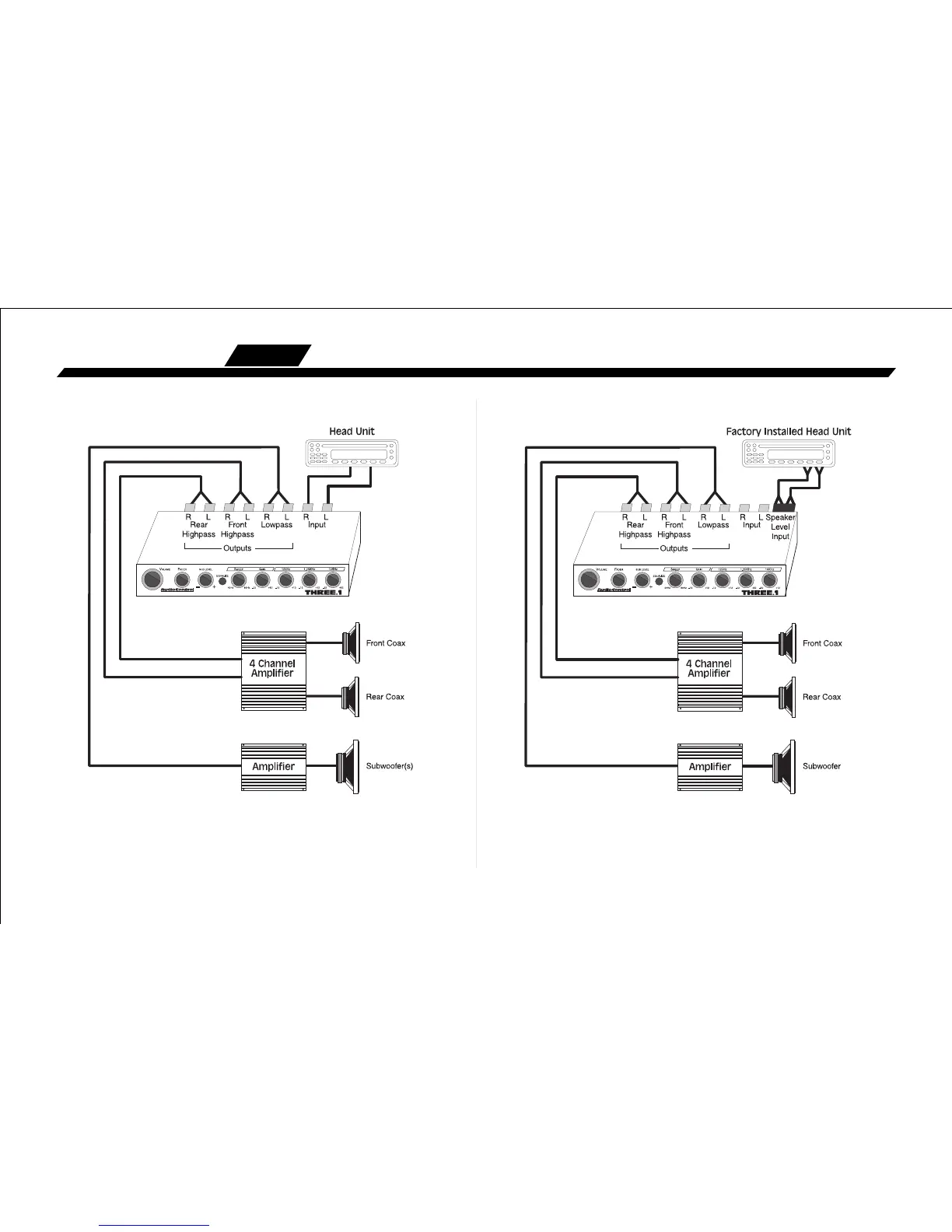

Figure 7: THREE.1 source unit, 4 channel amp and sub amplifier
Figure 8: THREE.1 with speaker level, 4 channel amp and sub amplifier
