Owner’s Enjoyment Manual
10
C. THREE.1 Audio Wiring
Planning: As you may already have guessed, there are
numerous ways to configure the THREE.1 in your audio
system. Spend a little quality time planning out your system
and even sketching it out on paper if you can. The following
diagrams are just a few of the possibilities.

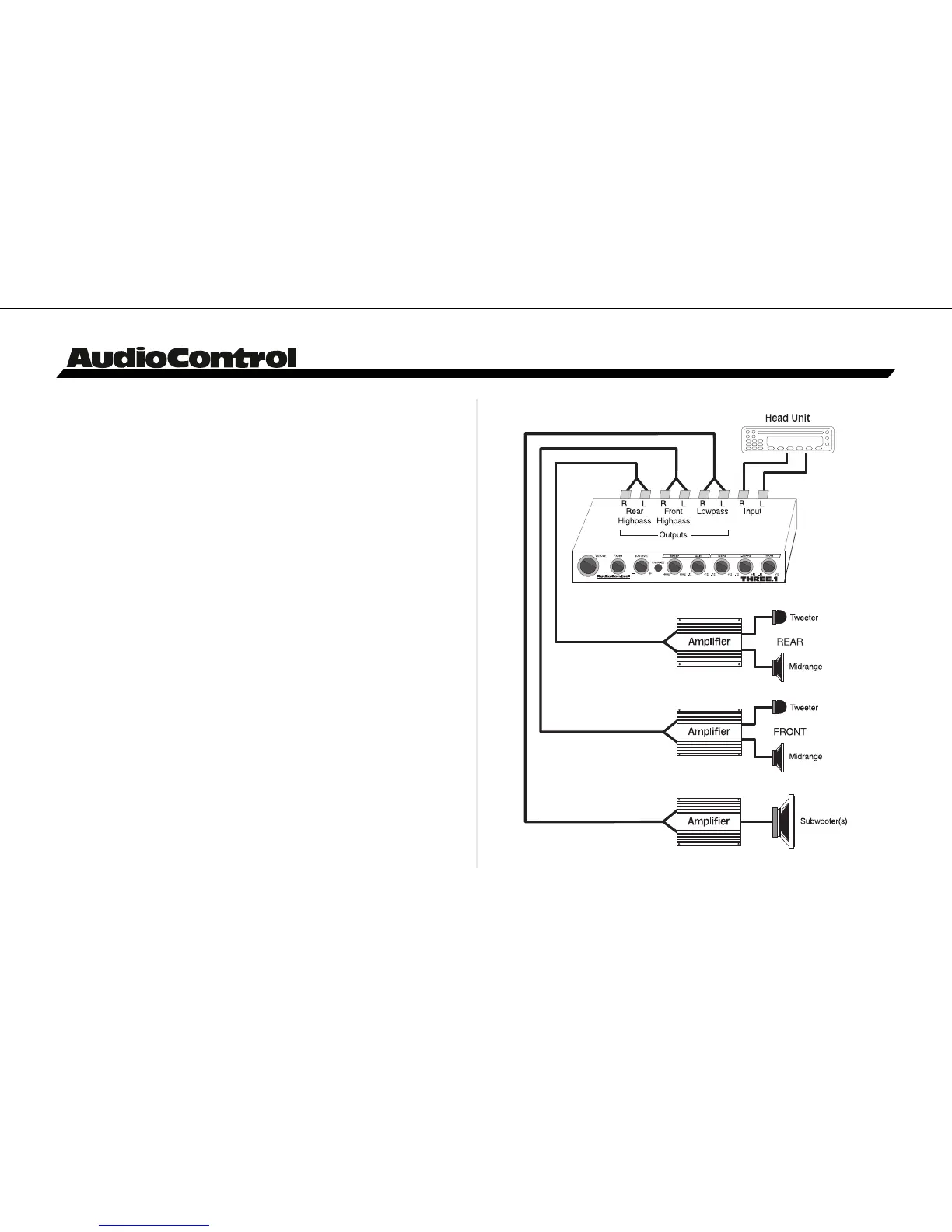

Figure 6: THREE.1 with source unit and three amplifiers
Front, rear and subwoofer amplifier
