AudioEngine N22 Setup Guide

(i~ audioengine

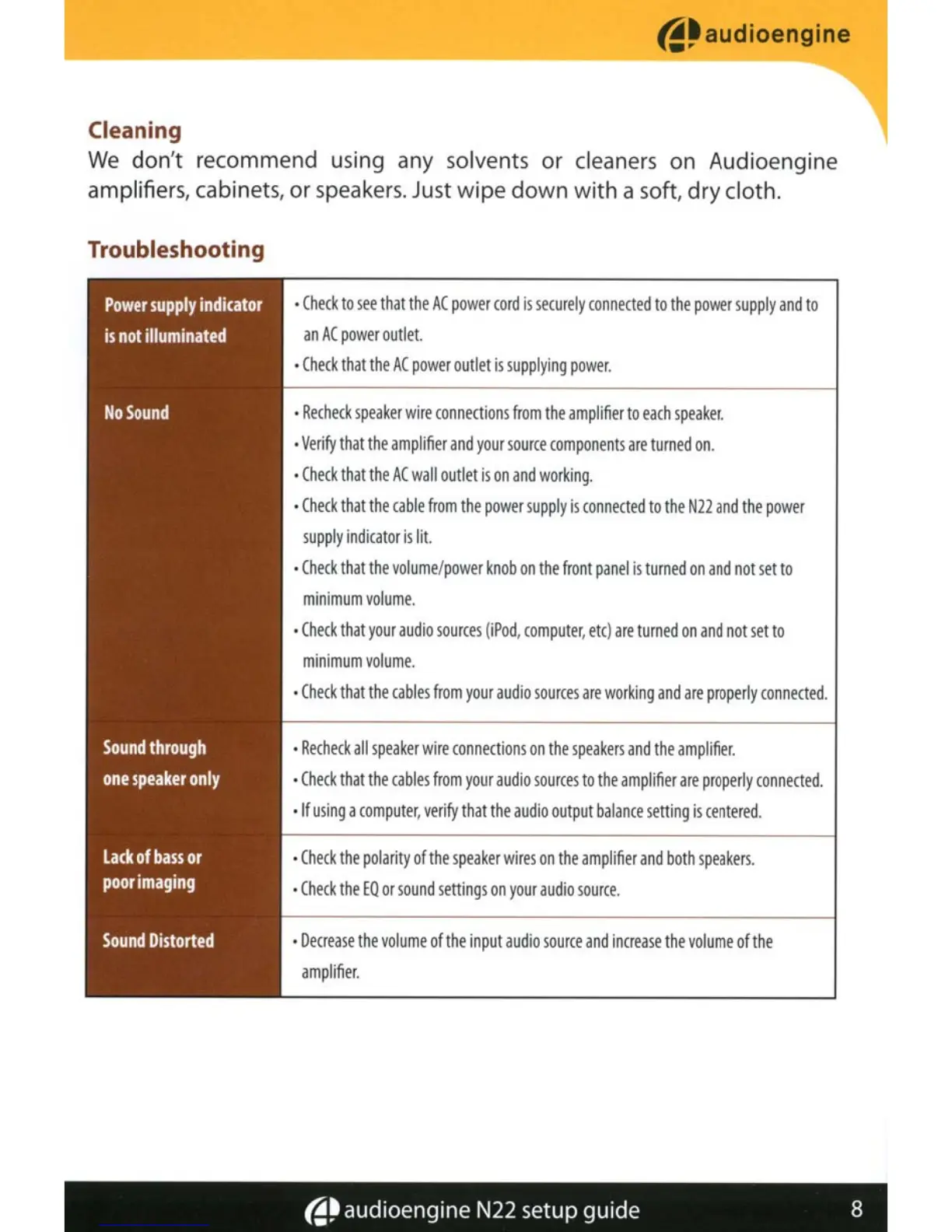

Cleaning
We don't recommend using any solvents or cleaners on Audioengine
amplifiers, cabinets, or
speakers. Just wipe down with a soh, dry cloth.
Troubleshooting
• Check to see that the AC power cord is securely connected to the power supply and to
an AC power outlet.
• Check that the AC power outlet is supplying power.
• Recheck speaker wire connections from the amplifier to each speaker.
• Verify that the amplifier and your source components are turned on.
• Check that the AC wall outlet is on and working.
• Check that the cable from the power supply is connected to the N22 and the power
supply indicator is lit.
• Check that the volume/power knob on the front panel is turned on and not set to
minimum volume.
• Check that your audio sources (iPod, computer, etcl are turned on and not set to
minimum volume.
• Check that the cables from your audio sources are working and are properly connected.
• Recheck all speaker wire connections on the speakers and the amplifier.
• Check that the cables from your audio sources to the amplifier are properly connected.
·If using a computer, verify that the audio output balance setting is centered.
• Check the polarity of the speaker wires on the amplifier and both speakers.
• Check the EQ or sound settings on your audio source.
• Decrease the volume of the input audio source and increase the volume of the
amplifier.
~~audioengine N22 setup guide 8

AudioEngine N22 Specifications

General

Amplifier class	A/B
Input sensitivity	410 mV
Audio output channels	- channels
Peak power per channel	1800 W
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.02 %
AC (power) in	Yes
USB 2.0 ports quantity	1
Speakers connectivity type	RCA
Purpose	-
Product color	Black
Volume control	Rotary
Cables included	AC, Audio (3.5mm), RCA
Connectivity technology	Wired & Wireless
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Package weight	4600 g

Weight and Dimensions

Depth	140 mm
Width	70 mm
Height	180 mm
Weight	1600 g
