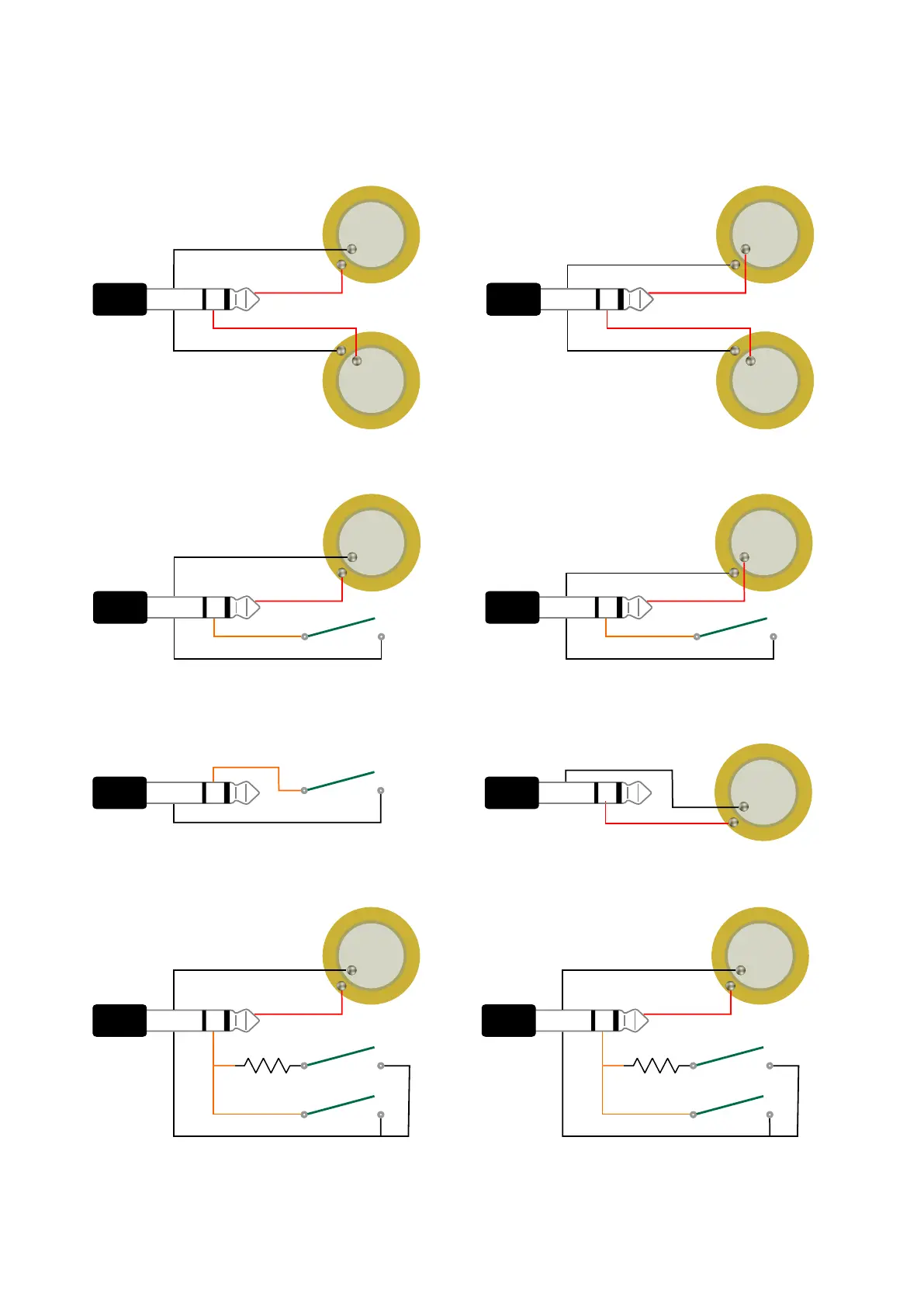

Drum Pad Wiring Diagrams
eDRUMin Manual Page 47 of 49
Drum Head
Drum Rim
Polarity of rim piezo
doesn't matter
Dual Piezo Pad
(Yamaha Style)
Dual Piezo Pad
(Roland Style)
Drum Head
Drum Rim
Polarity of rim piezo
doesn't matter
Piezo / Switch Pad
(Roland Style)
Drum Head
Piezo / Switch Pad
(Yamaha Style)
Drum Head
Roland 3-Zone Ride Bell Input Metal 3-Zone Ride Bell Input
Drum Head
Drum Rim
Polarity of rim piezo
doesn't matter
Dual Piezo Pad
(Yamaha Style)
Edge Switch
Yamaha 3-Zone Cymbal
10k
Bell Switch
Rim Right
Yamaha 3-Zone Pad
10k
Rim Left
