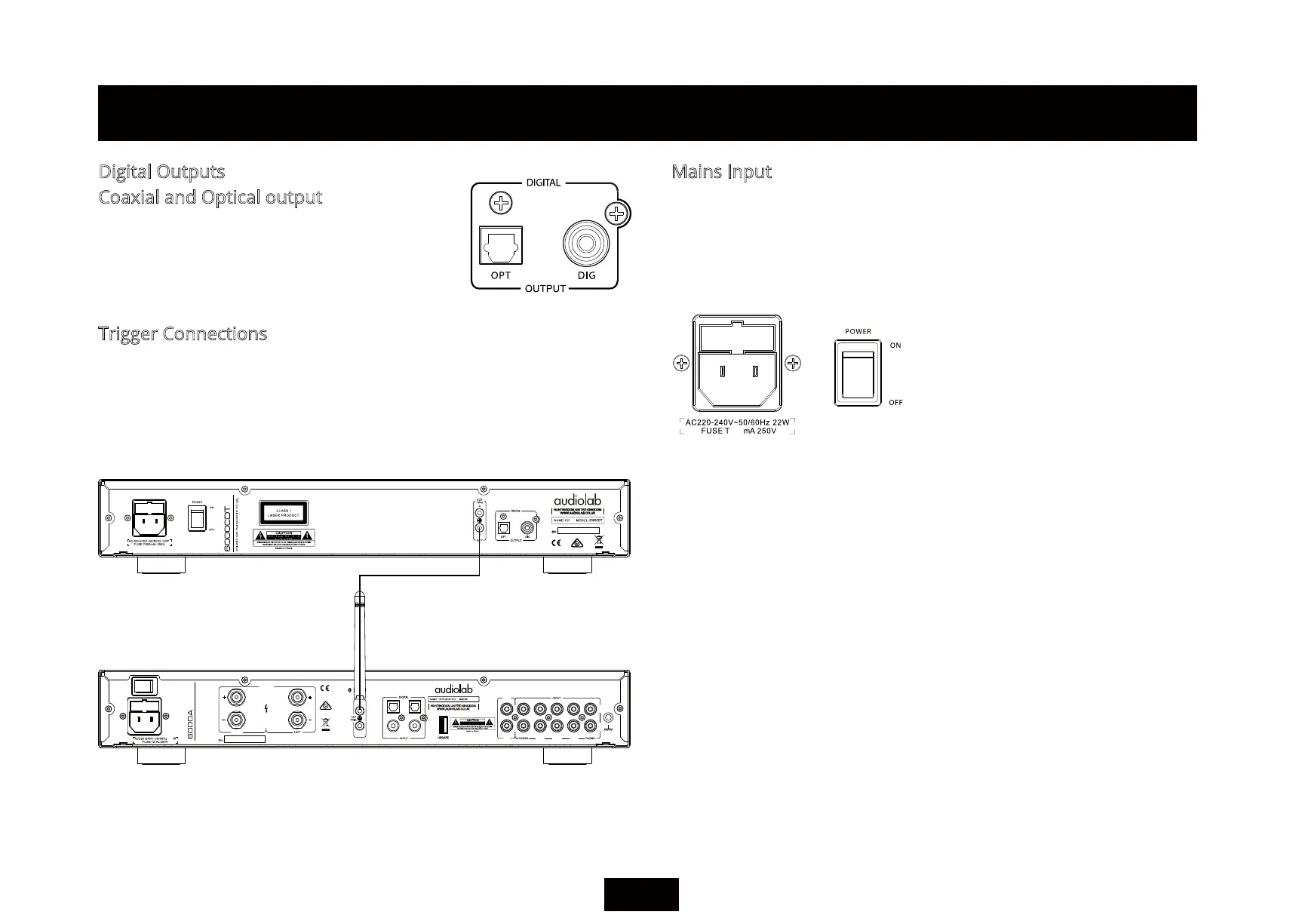

Trigger Connections
Page 5
5: Connections
Mains InputDigital Outputs
Coaxial and Optical output
P
ON
OF F
IN
RE
OUT
AUX 3 AUX 2 AU X1
L
R
RIG HT
OU TPU T
OU T
DESIGNE
D
AND
E
NGIN
E
E
R
ED IN
THE U.
K..
DI
G1
DI
G2
OP T1 OP T2
600 0A
330
One Coaxial and one Optical SPDIF digital output. Connect a
suitable Digital coaxial (fully screened) interconnect or optical
cable from the appropriate SPDIF output of the 6000CDT to
the input of a DAC or digital input on your amplifier or
preamplifier.
Audiolab 6000CDT has a pair of trigger connections on the rear panel that can activate 6000A’s
or any other source’s trigger input. If you have a 6000 system, we advise connecting the
triggers. This will enable all 6000 units to be brought in and out of standby using the trigger
connections. To connect to your control unit, you will need a cable with one end to match the
trigger output of the control unit and other terminating in a 3.5mm jack plug. For Audiolab
6000series, this will be a 3.5mm to 3.5mm interconnect.
Before connecting the 6000CDT to the mains supply make sure that all the other connections to
your system have been properly and securely made. Make sure the ON/OFF switch on the
6000CDT is switched off. Switch the mains supply off at the wall socket, and then, using the cable
supplied, connect the socket on the back of your 6000CDT to an AC supply outlet. The 6000CDT
is now ready for operation.
630

Audiolab 6000CDT Specifications

General

Transport Type	Slot-loading
Digital Outputs	1 x Coaxial, 1 x Optical
Power Consumption	15W
Disc Compatibility	CD, CD-R, CD-RW
Output Impedance	75 Ohms
Sampling Rate	44.1 kHz
Standby Power Consumption	<0.5W
Frequency Response	20Hz - 20kHz
