Audiolab DSP-2600 - Output Gain Setting

DSP-2600
P.
10
ENGLISH VERSION
2.SignalSourceSetting:
Example
1. Press OUT1 channel for 3 seconds till the yel-
low light display, into EditStatus of OUT1.

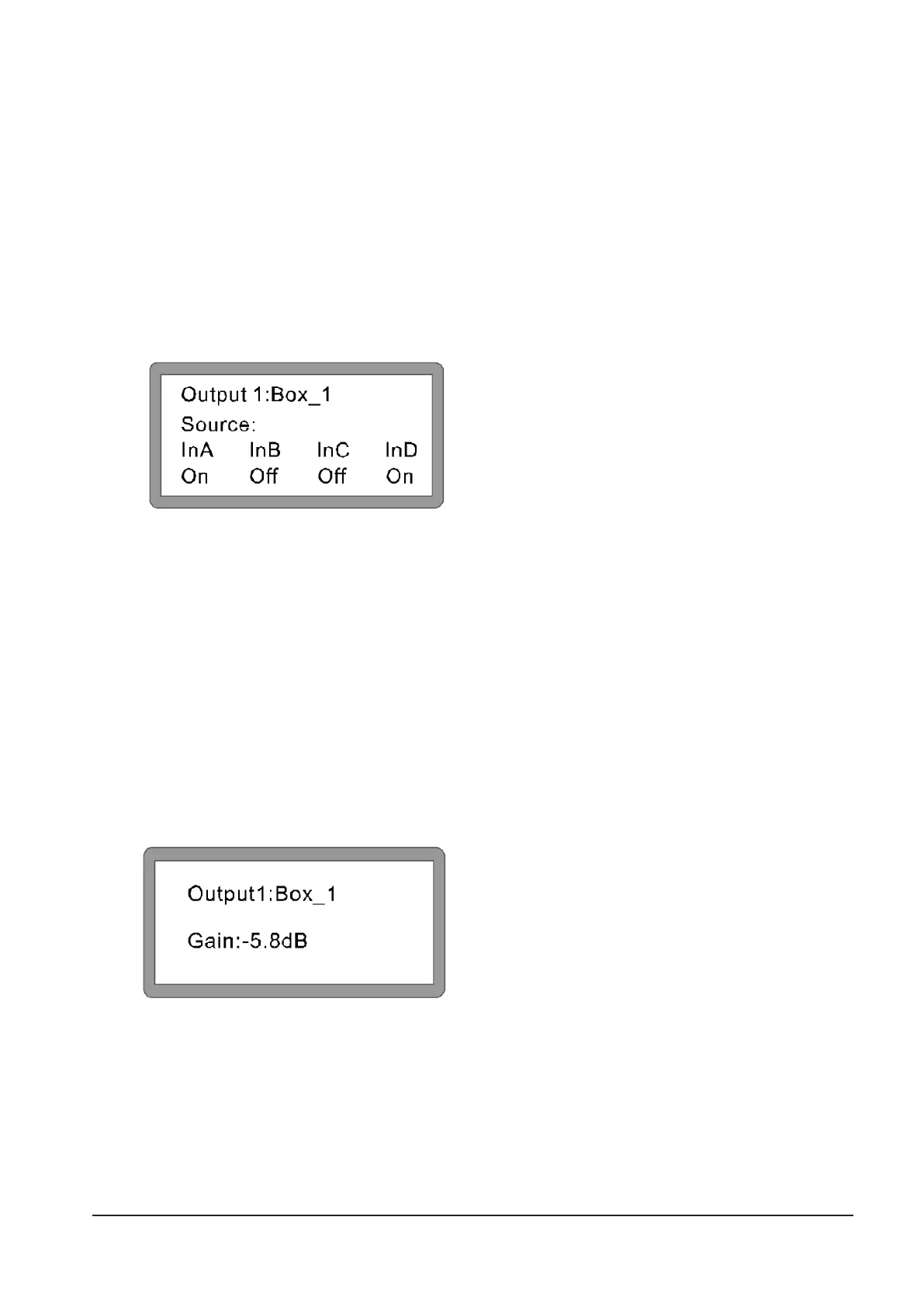

Displaynext:
2. Turn the rst knob “PARA” to select ON or
 OF, then press ENTER to conrm.
3.OutputGainSetting:
 ParameterGain, adjust range: -40.0dB-+15.0dB,
Step pitch is 0.1dB. Each channel has unat-
tached gain control.
Example
1. Press OUT1 channel for 3 seconds till the yel-
low light display, into EditStatus of OUT1.
2. Press “<BACKor“NEXT>”, switch to Gain.
3. Turn the rst knob of “PARA” to change the value.
(Turn the knob clockwise, the value increases:
Turn the knob withershins, the value decreases.)
Displaynext:
