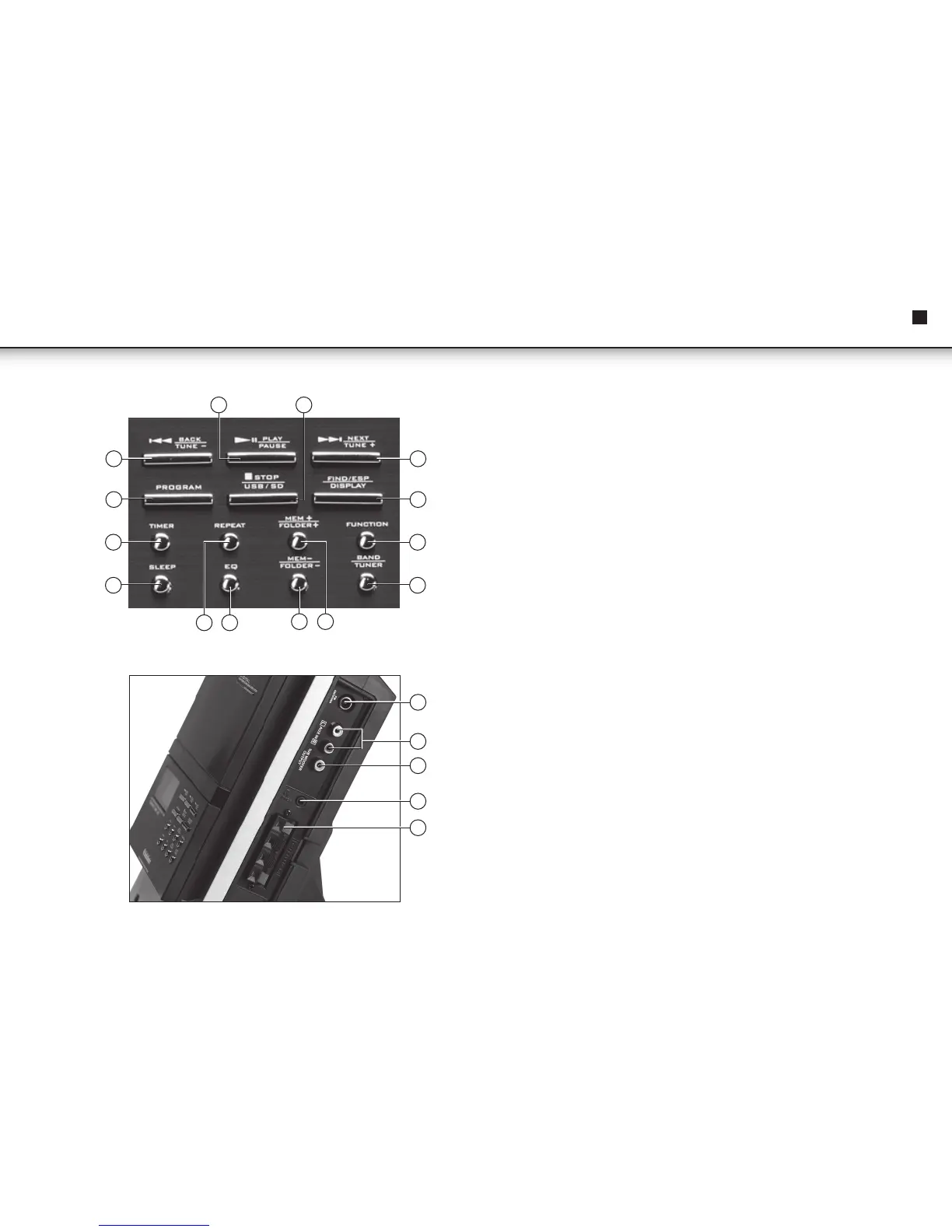

LOCATION OF CONTROLS
1. Stands (for speakers)
2. Speakers (left & right)
3. Desk stand (for main unit)
4. USB socket
5. SD-card socket
6. CD/ clock/ radio digital multifunction display
7. CD door (motorized)
8. CD program key
9. CD back/ tune-down key
10. CD play/ pause key
11. CD next/ tune-up key
12. CD stop/ USB/ SD-card key
13. Find/ ESP/ display key
14. Function key
15. Tuner/ band key
16. Volume up key
17. Volume down key
18. Open/ close key
19. Timer key
20. Sleep key
21. CD repeat key
22. EQ (equalizer) key
23. Mem (+) / folder + key
24. Mem ( ) / folder key
25. Remote control sensor
26. On/ Off key
27. FM wire antenna
28. Audio line in socket [aux] (left & right)
29. Sub woofer output
30. Headphone jack
31. Speaker-out socket (left & right)
32. Back up battery compartment (behind the unit)
33. AC-cord & plug
