AudioSource EQ 200 - AudioSource EQ 200 Specifications; Technical Performance Data

AudioSource@

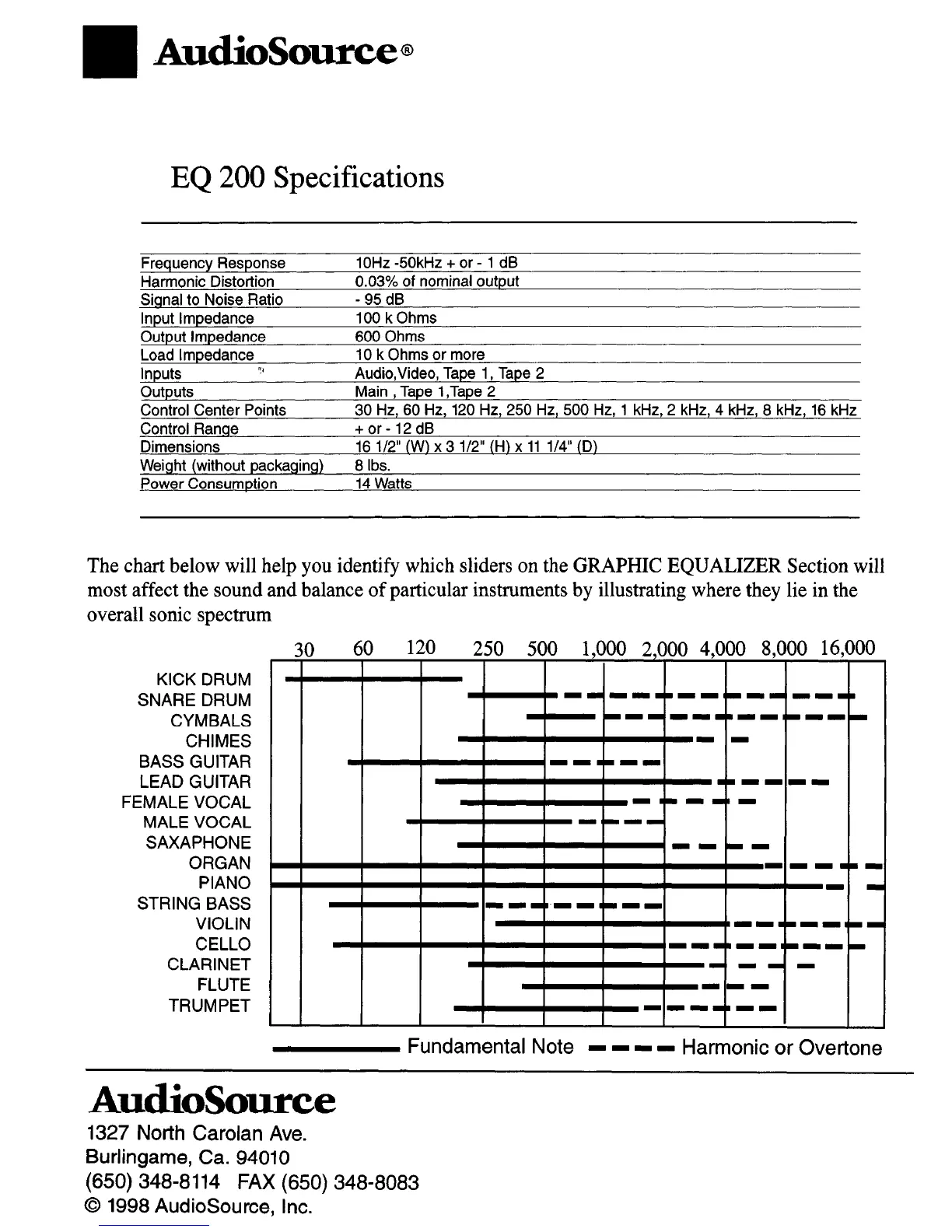

EQ 200 Specifications
Frequency Response
10Hz -5OkHz + or - 1 dB
Harmonic Distortion
0.03% of nominal output
Signal to Noise Ratio
-95dB
Input Impedance
100 k Ohms
Output Impedance 600 Ohms
Load Impedance
10 k Ohms or more
Inputs
“I
Audio,Video, Tape 1, Tape 2
outputs Main , Tape 1 ,Tape 2
Control Center Points 30 Hz, 60 Hz, 120 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz
Control Range
+or-12dB
Dimensions
16 l/2” W x 3 l/2” H x 11 l/4” D
Weight (without packaging) 8 Ibs.
Power Consumption 14 Watts
The chart below will help you identify which sliders on the GRAPHIC EQUALIZER Section will
most affect the sound and balance of particular instruments by illustrating where they lie in the
overall sonic spectrum
KICK DRUM
SNARE DRUM
CYMBALS
CHIMES
BASS GUITAR
LEAD GUITAR
FEMALE VOCAL
MALE VOCAL
SAXAPHONE
ORGAN
PIANO
STRING BASS
VIOLIN
CELLO
CLARINET
FLUTE
TRUMPET
1 60 120 250 500 1,000 2,000 4,000 8,000 16,
I I I I I I I I
Fundamental Note
- - - - Harmonic or Overtone
AudioSource
1327 North Carolan Ave.
Burlingame, Ca. 94010
(650) 348-8114 FAX (650) 348-8083
0 1998 AudioSource, Inc.
