L. Connecting to other Electronic Equipment
1. Connecting to a TV or another monitor ( Refer to Figure 4)
a. Set the AV In/Out Switch to the “Out” Position.
b. Connect one end of the audio/video cable’s black (1/8” plug) plug
into the unit’s DVD AV jack and connect the other end to the AUDIO
INPUT jacks on your TV or Monitor using the AV adapter cable (white
= left audio channel, red = right audio channel, yellow = video).

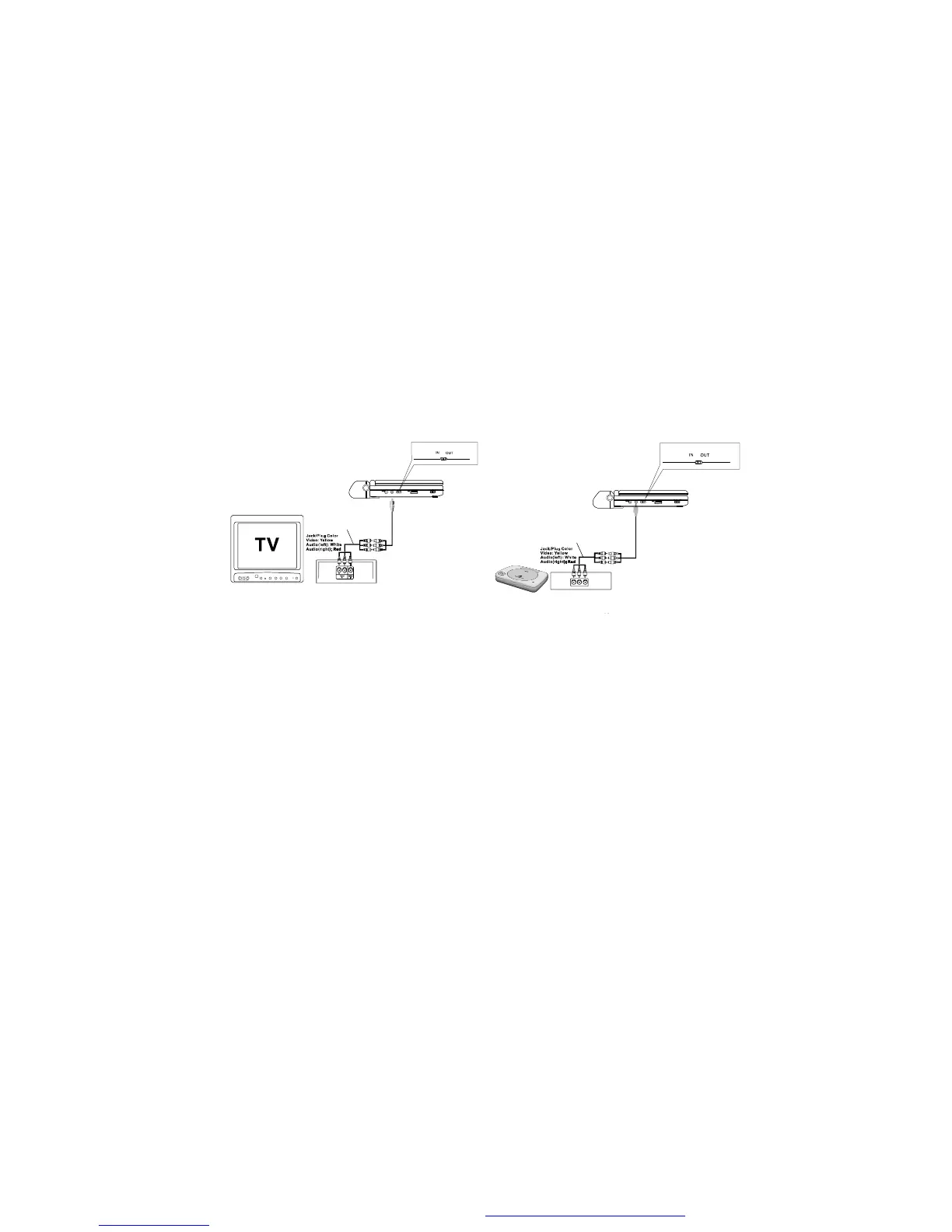

Figure 4
2. Connecting to a Game or Camcorder (Refer to Figure 4)
a. Set the AV In/Out Switch to the “In” Position.
b. Connect one end of the audio/video cable’s black (1/8” plug) plug
into the unit’s DVD AV jack and connect the other end to the AUDIO
Output jacks on your Camcorder or other DVD using the AV adapter
cable (white = left audio channel, red = right audio channel, yellow =
video).
Note: Do not connect an AV signal source with the AV jack when the
AV In/Out Switch is set to the “Out” position.
3. Headphones
Optional wired headphones may be used with the unit. Simply plug in
the headphones to either Headphone 1 jack* or Headphone 2 jack on
the right side of the DVD. ( Refer to Figure 5.)
NOT SUPPLIED
NOT SUPPLIED
