Audison DRC AB - Installation and Operation Overview; Device Dimensions and Connection Diagram; DRC AB Button Functions

DRC AB
User’s manual
SRC
MEM
HOW TO INSTALL
HOW TO CONNECT
SRC
MEM
OK
SRC
MEM
NO
DRC/ACLink cable (provided)
Bi-adhesive tape

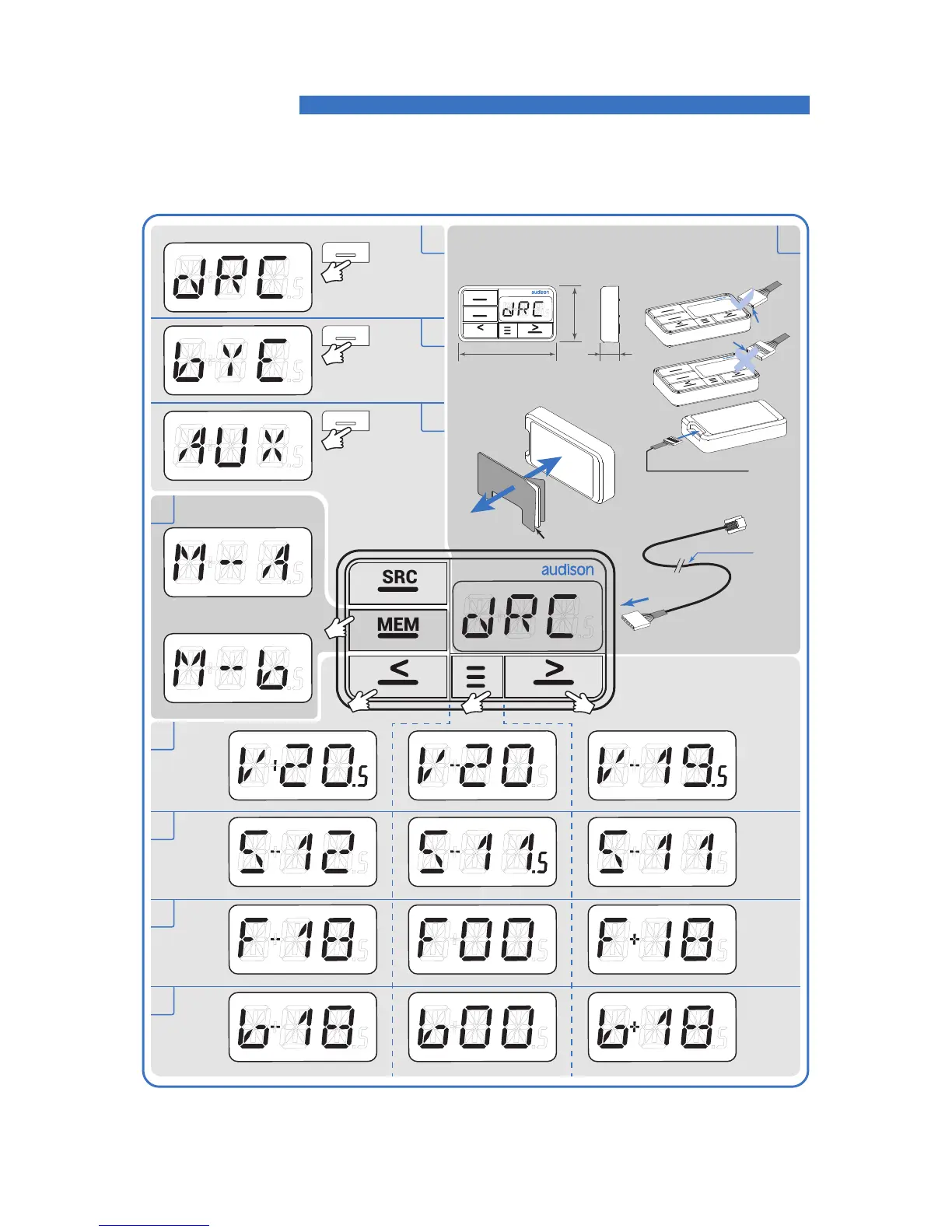

EXTERNAL DIMENSIONS
63 mm / 2.48 in
36 mm / 1.4 in
12 mm / 0.47 in
SRC
MEM
5
6
7
8
9
SRC
SRC
SRC
Power ON
press shortly
Power OFF
press 3 sec.
Change INPUT
press 1 sec.
Change Memory
press shortly
Memory A
Memory B
4,5 m / 177.17 in
Volume -
Sub Volume -
Fader Front
Balance Left
Sub Volume +
Fader Rear
Balance Right
Fader 0
Balance 0
Sub Volume
Volume +
Volume
2 1
3
4
INSTALLATION / OPERATION
