The Universal Sound
LRx 1.1k
Owner’s manual

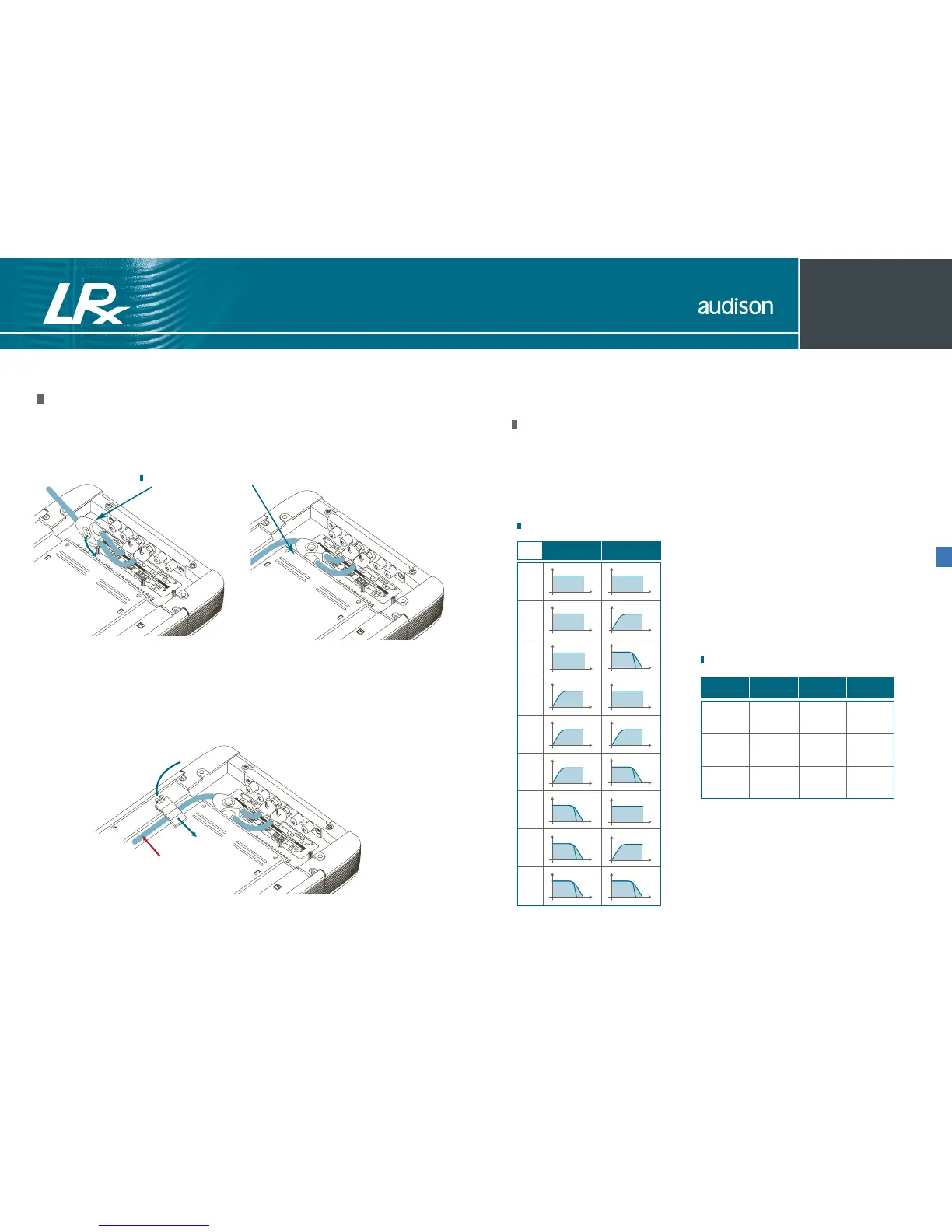

How to run the cables under the amplifier
If you use CONNECTION Audison interconnects, attach Y BLOCK on one of the mounting
pins of the amplifier after plugging in RCA connectors.
Route the cable in the proper location and secure it with the supplied clips.
To attach the clip, insert the tongue first, and then press until you hear a click.
CONNECTION Audison Y BLOCK
Configuration
LRx 1.1k
For setting the control panel switches properly, refer to the diagrams in the Filter section,
starting on page 52.
Filters configuration
Inputs/Outputs configuration
You can independently select a bypass, hi-pass
or lo-pass filter to be applied to the amplifier and
to PRE OUT output. If the amplifier and the PRE
OUT output are configured in the same way, both
will output the same signal and cut-off frequency
selected.
When the INPUT signal is stereo, you will have a
stereo signal in PRE OUT and BYPASS outputs.
Since the amplifier is mono, a Mix L+R will act on
the amplified output. If you use a mono signal as
input, the same signal will be output to PRE OUT
and BYPASS outputs.
