AUMA MATIC Operation Instructions
AUMA Actuators, Inc. USA
Actuator Operates Automatically as Soon as Power is Applied

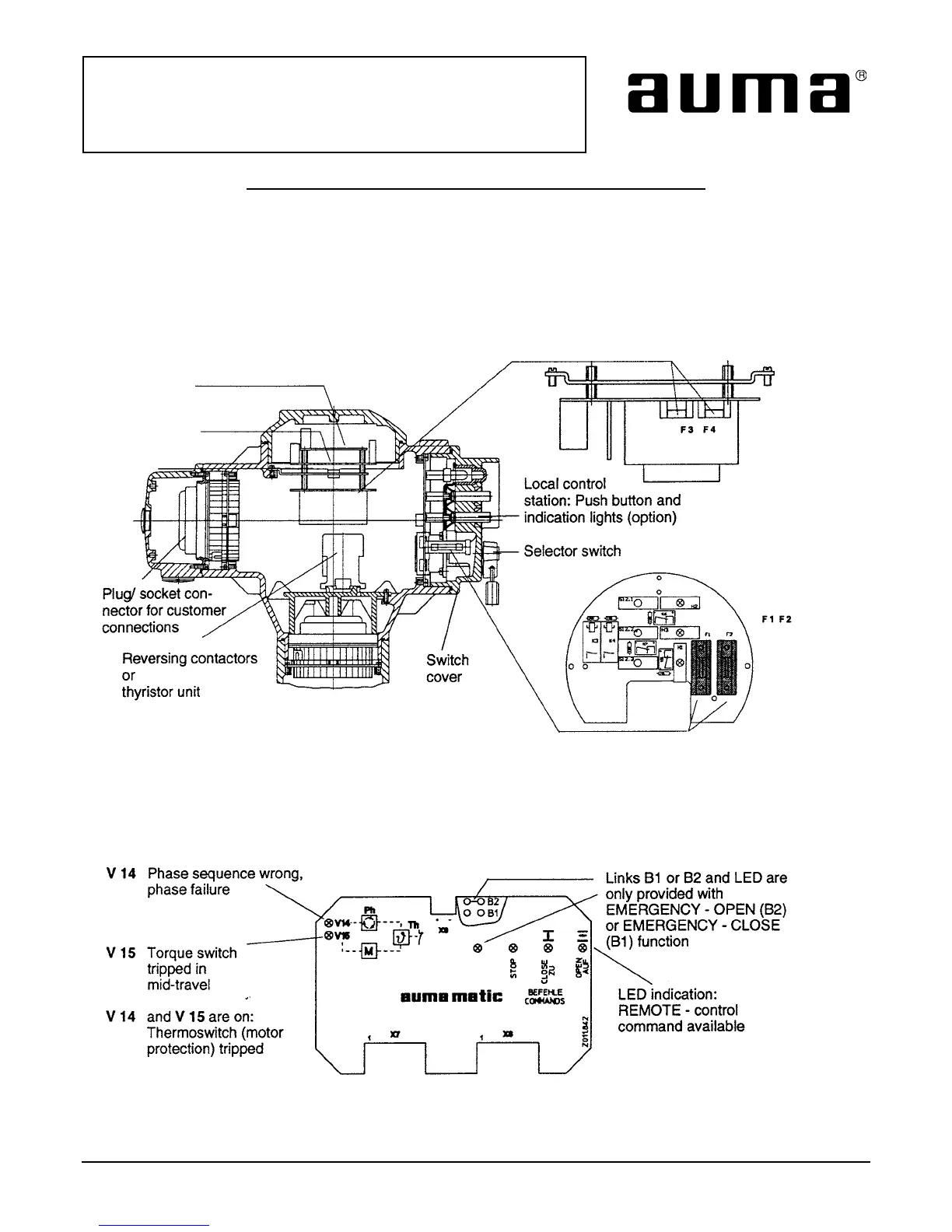

The AUMA MATIC with an interface board has an emergency override circuit which can be programmed to
operate the actuator open or closed. Programming is accomplished by adding or removing the appropriate
jumper at solder links B1 and B2--Jumper B1 for emergency closed, jumper B2 for emergency open.
Check the electrical drawing for correct emergency override circuit configuration. A normally closed contact in the
override circuit will, upon opening, force the actuator to the pre-programmed position. When the contact returns
to the normally closed position, the actuator will respond normally.
Interface Board
Logic Board
Power Supply
Monitor Control
Board
Interface Board
All information in this document is subject to change without notice.
ISSUE 02/02 Page 3 of 4 SE-SI-35-0001
