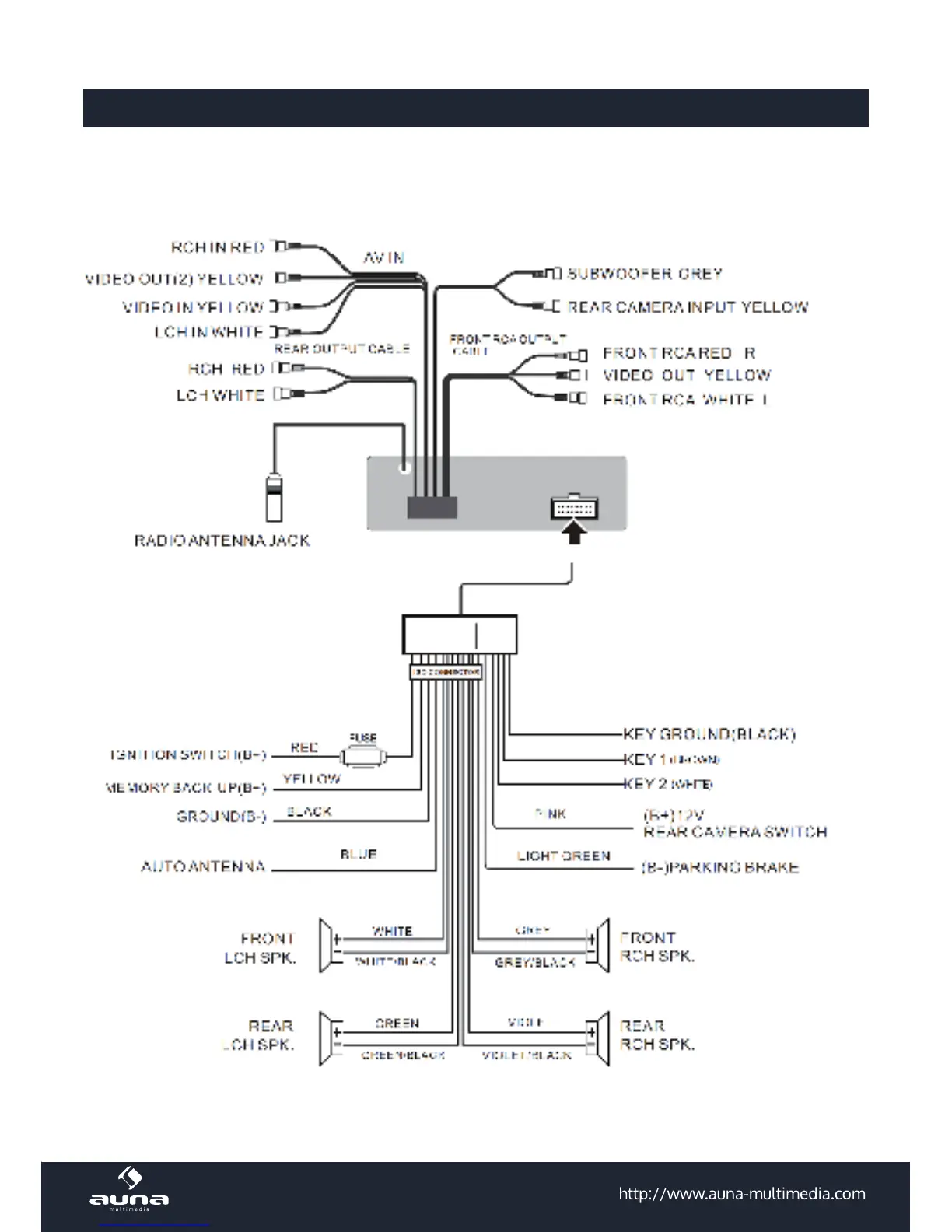

Connection Diagram
Note:
the earth connection cable (parking brake B-) must be connected in order for pictures to be played back to
the monitor. If the cable has not been correctly connected, the message “PARKING BRAKE” appears on the
monitor.
