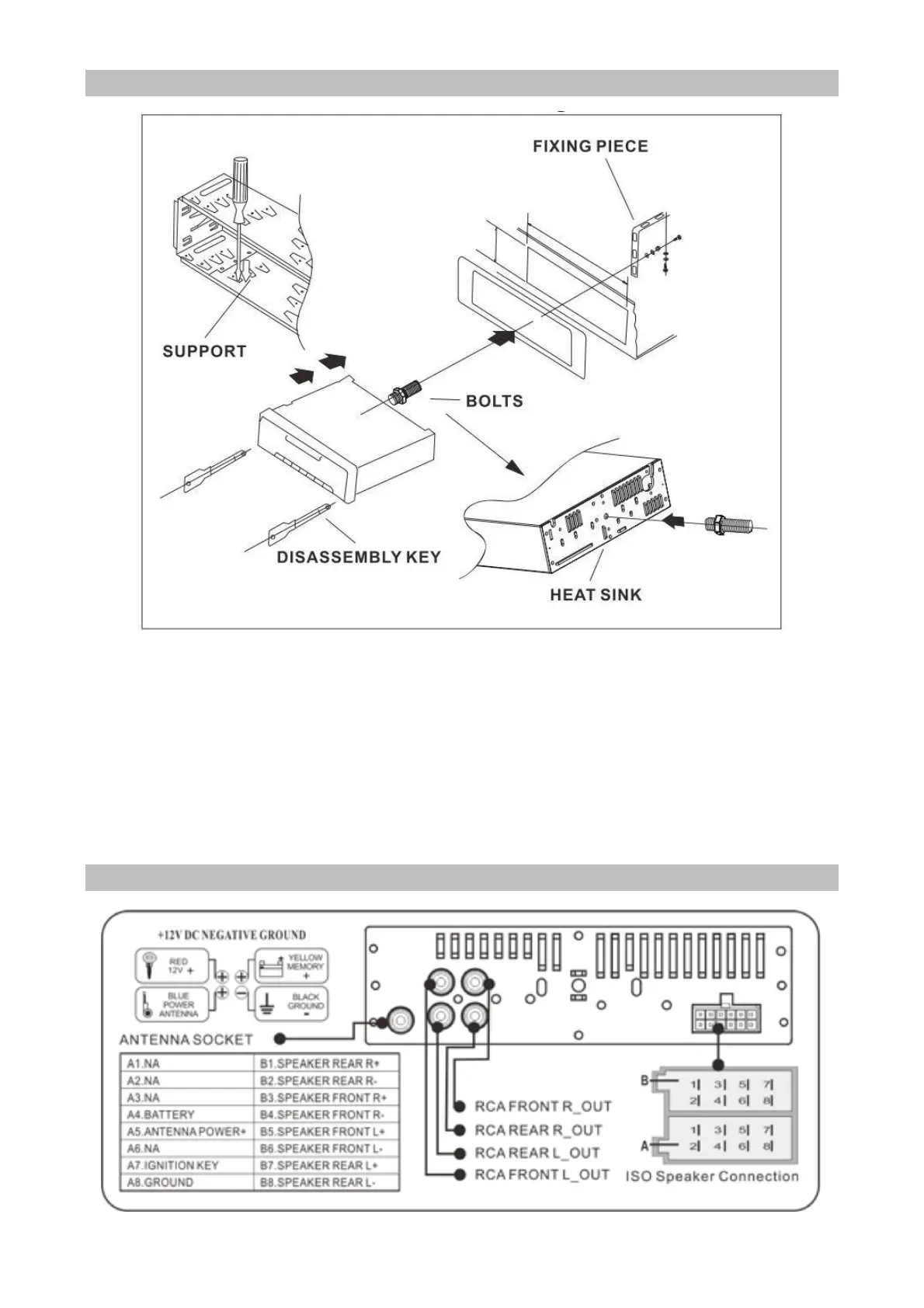

Install the main unit
1. Install the support on the instrument panel of the car, bend the clamp of
the support.
2. Connect the power wire and speaker wire, fix the fixing piece in the car.
3. Insert the antenna plug, push the main unit into the support, and tighten the fixing nut of the fixing
piece.
Insert two disassembly keys into the left and right gap, make the keys hook the main unit, pull out it
to remove the main unit from the support, then disassemble the connection wire and unplug the
antenna plug.
Wiring Diagram
