15
Initial Use

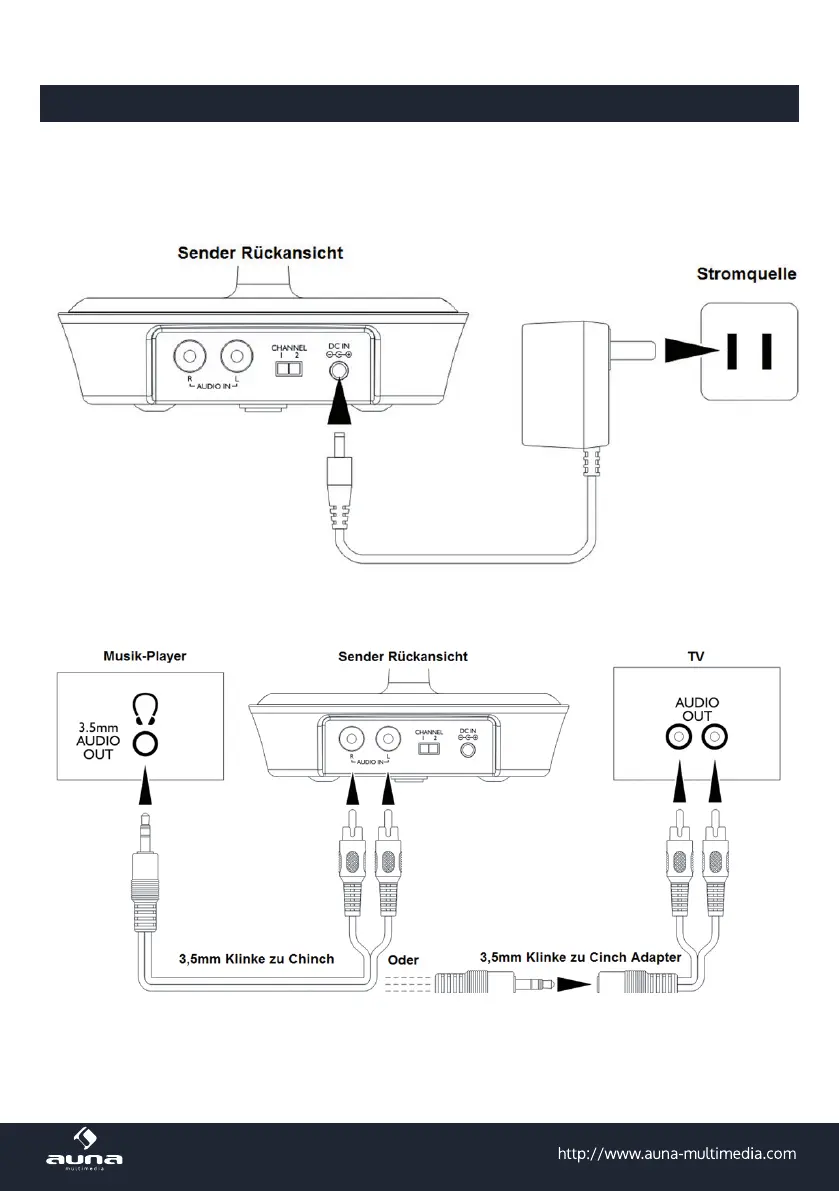

TRANSMITTER:
• Plug the supplied 8V AC/DC power adaptor in the DC jack located on the rear of the transmitter.
• Connect the supplied 8V AC/DC power adaptor to an electrical wall outlet. The Power LED then glows.
• The transmitter can be connected to audio output jack of TV, Monitor, VCR, Radio, CD, MP3/iPod, VCD
or DVD players with the cables provided.
Having nished the above simple wiring, Signal LED glows when the transmitter detects audio input signal
played from the source.
