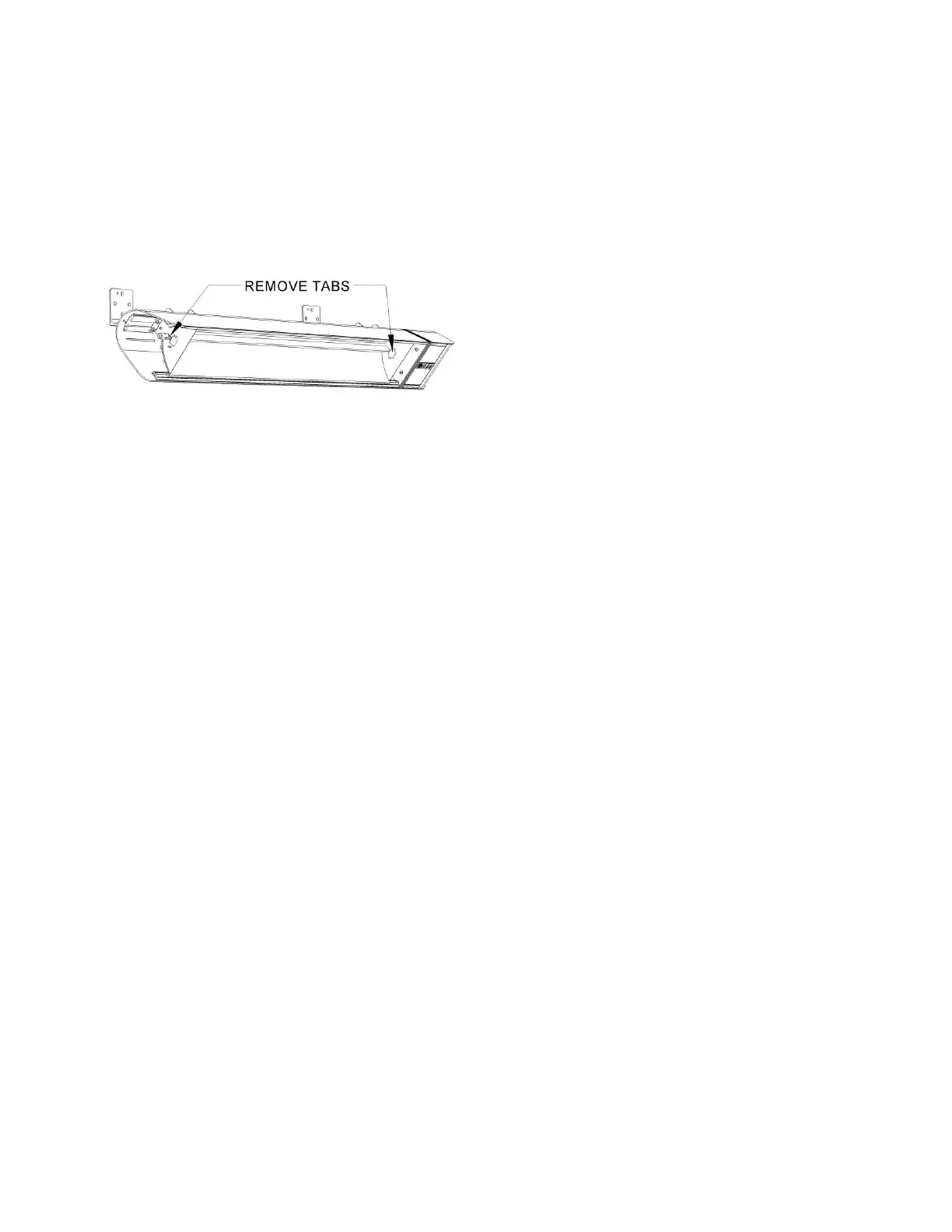

9. Bend the metal tabs to remove the small reflector
shield sheet metal parts. Hold on to these pieces.
This will allow you to slide the emitter into a bigger
cavity to remove it from the reflector and heater
body. Properly dispose of the broken or expired
emitter at your local recycling center.
10. Hold the new emitter by the ceramic ends or wear
clean dry gloves to prevent accidental contact with
the emitter surface. Fingerprints on the emitter
surface can lead to surface hot spots and reduced
emitter life. Position the new lamp inside the unit.
11. Insert the new emitter through the reflector
openings. Insert the Reflector Shields and bend the
tabs back into place. The Reflector Shields hold the
emitter in the correct position during operation. It
is important that they are re-installed during
emitter replacement.
12. Connect the new emitter to the terminals of the
heater; screw in the white plastic caps
13. Carefully replace the protective grille using the
screws removed in the previous steps.
