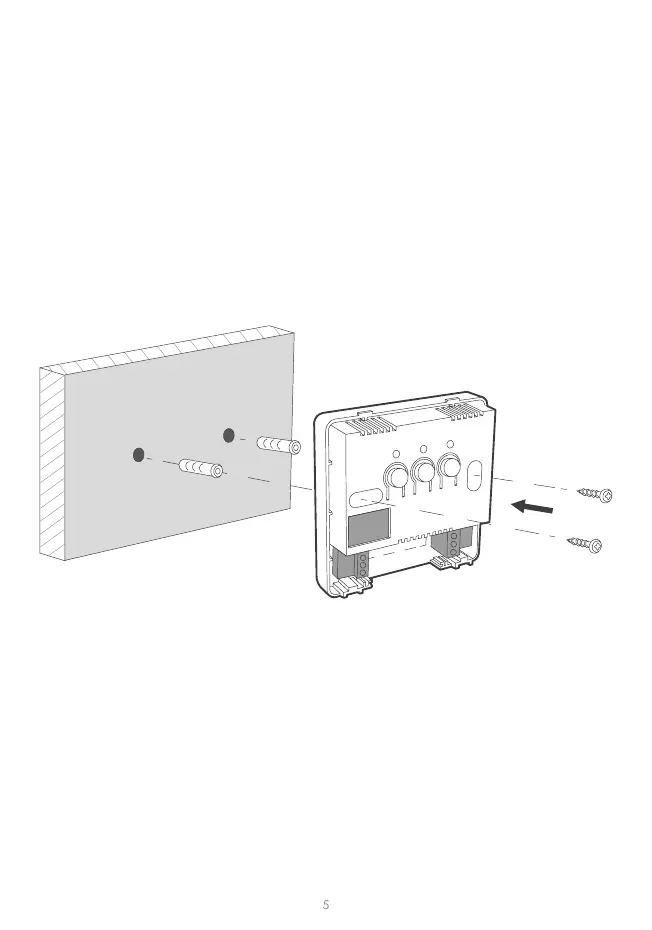

Fastening the AURATON RT receiver to a wall
In order to fasten the AURATON RT receiver on a wall:
NOTE: If the wall is wooden, there is no need to use wall plugs. In such a case, drill two
holes 2.7 mm in diameter instead of 5 mm, and screw the screws directly into the wood.
NOTE: The RT receiver cannot be placed in metal containers (e.g. an assembly box,
a metal enclosure of a heater) in order to not to interfere with its operaon.
1. Take o the covers from the front part of the controller
(see chapter “Installaon of the AURATON RT receiver”).
2. Mark the locaon of the holes for the fastening screws on the wall.
3. In the marked locaons, drill holes with diameters appropriate for the diameters
of the enclosed wall plugs (5 mm).
4. Put the wall plugs in the drilled holes.
5. Fasten the AURATON RT receiver to the wall using screws so that the receiver is well
fastened.
