AUSA C300H - Page 24

C300H / C300HI / C300H x4 / C300HI x4
C350H / C350HI / C350H x4 / C350HI x4
22

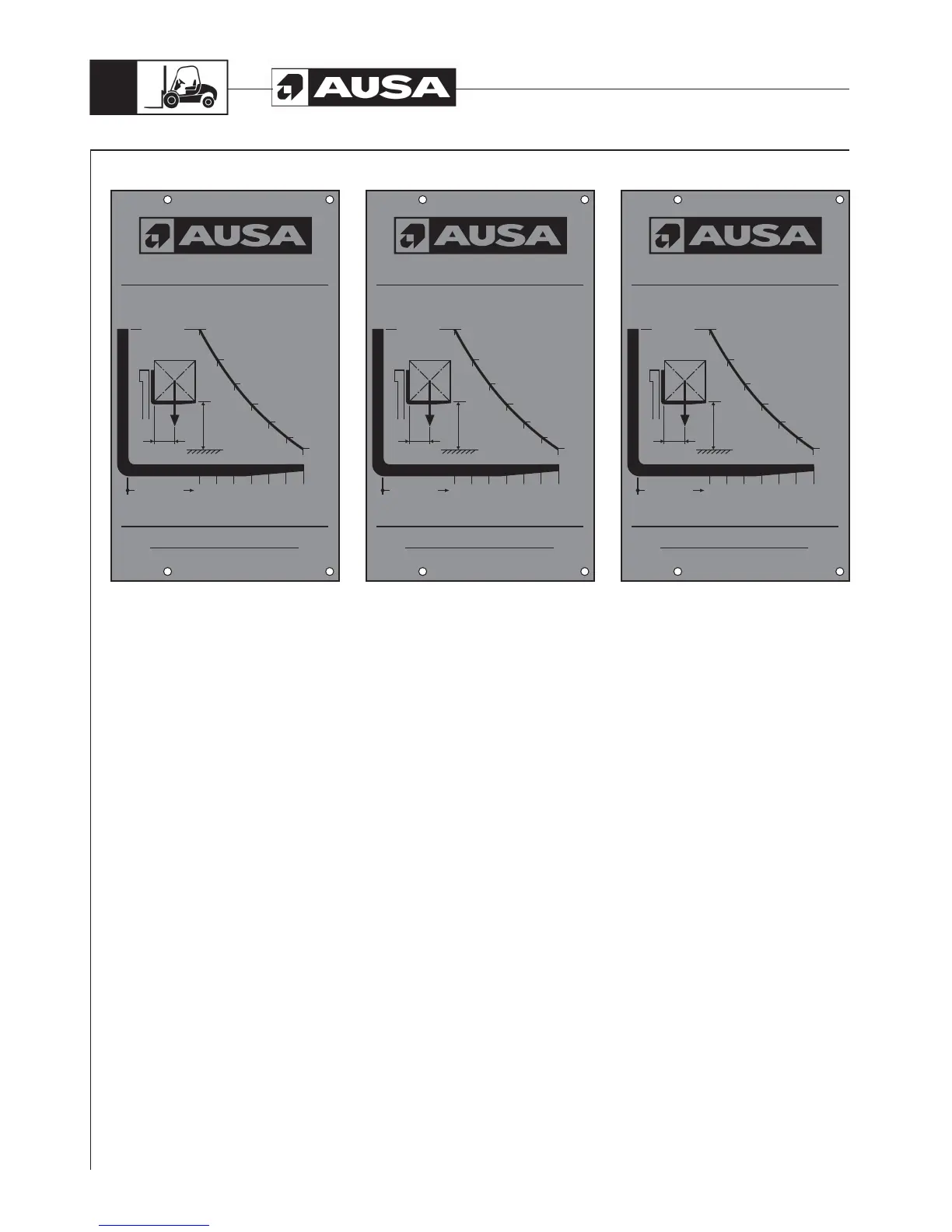

Load charts for C300H / C300H x4 front narrow axle and and quick attach fork carriage (24 in. load centre)
C300H / C300H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
13ft 1in
4.380
4.082
3.822
3.593
3.390
3.209
3.046
C300H / C300H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
12ft 5in
4.673
4.356
4.078
3.833
3.617
3.423
3.249
C300H / C300H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
10ft 10in
5.842
5.502
5.097
4.792
4.521
4.279
4.063
