AUSA C300H - Page 26

C300H / C300HI / C300H x4 / C300HI x4
C350H / C350HI / C350H x4 / C350HI x4
24

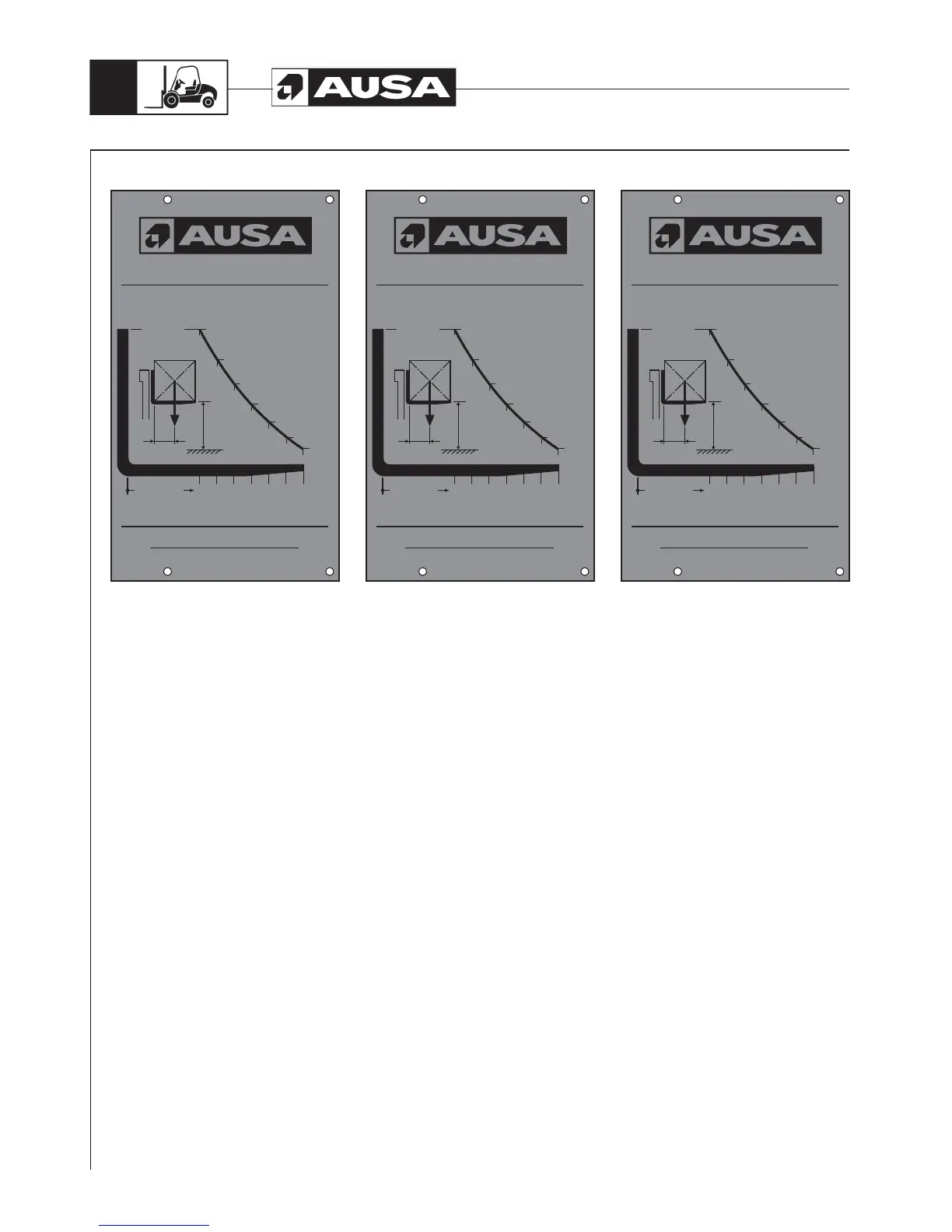

Load charts for C350H / C350H x4 front narrow axle (24 in. load centre)
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
13ft 1in
6.109
5.674
5.299
4.971
4.680
4.420
4.188
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
12ft 2in
6.516
6.053
5.652
5.299
4.991
4.715
4.468
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
10ft 10in
7.127
6.622
6.183
5.798
5.460
5.158
4.887
