AUSA C300H - Page 28

C300H / C300HI / C300H x4 / C300HI x4
C350H / C350HI / C350H x4 / C350HI x4
26

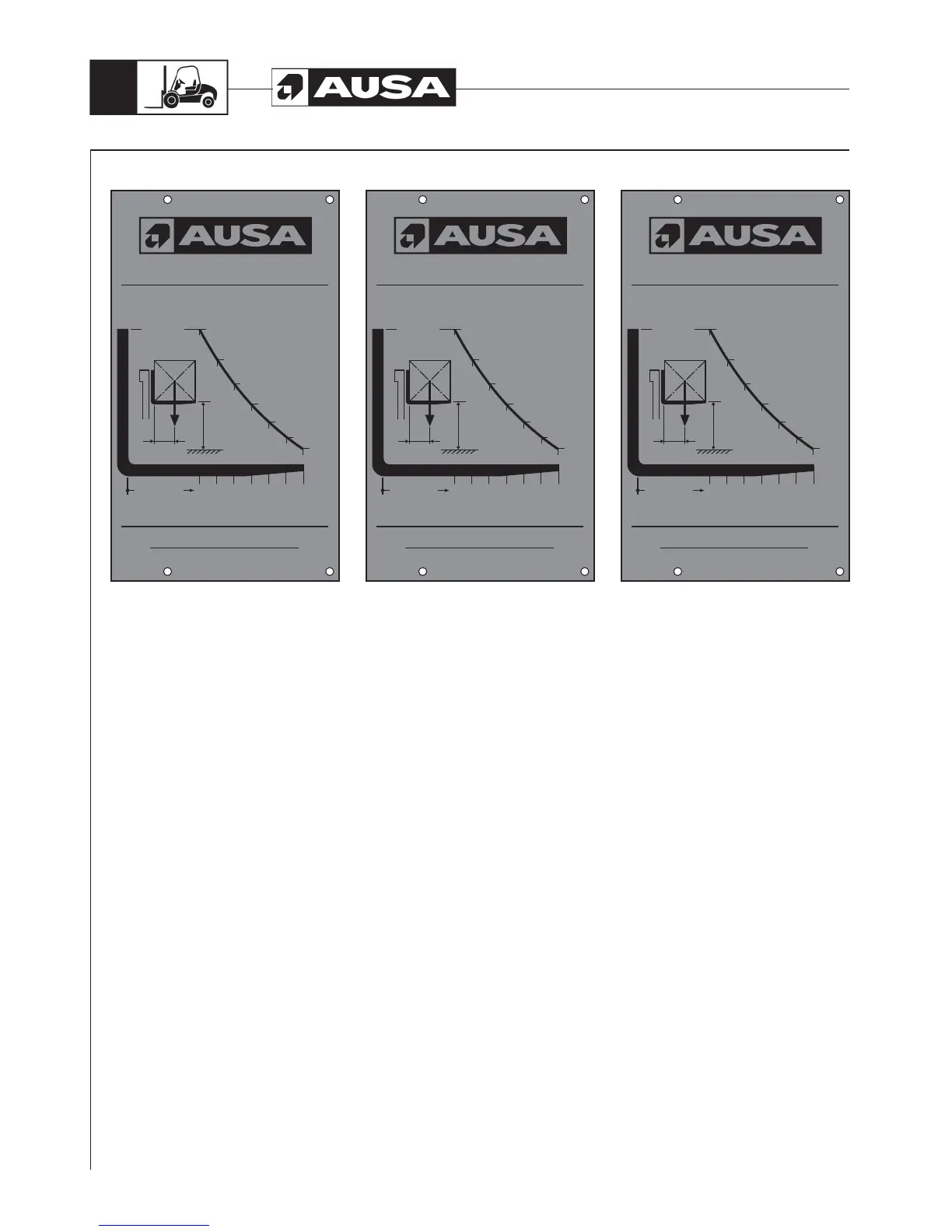

Load charts for C350H / C350H x4 front narrow axle and and quick attach fork carriage (24 in. load centre)
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
13ft 1in
5.842
5.443
5.097
4.792
4.521
4.279
4.063
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
12ft 2in
6.230
5.806
5.436
5.112
4.823
4.565
4.332
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
10ft 10in
6.814
6.351
5.945
5.590
5.275
4.993
4.739
