AUSA C300H - Page 32

C300H / C300HI / C300H x4 / C300HI x4
C350H / C350HI / C350H x4 / C350HI x4
30

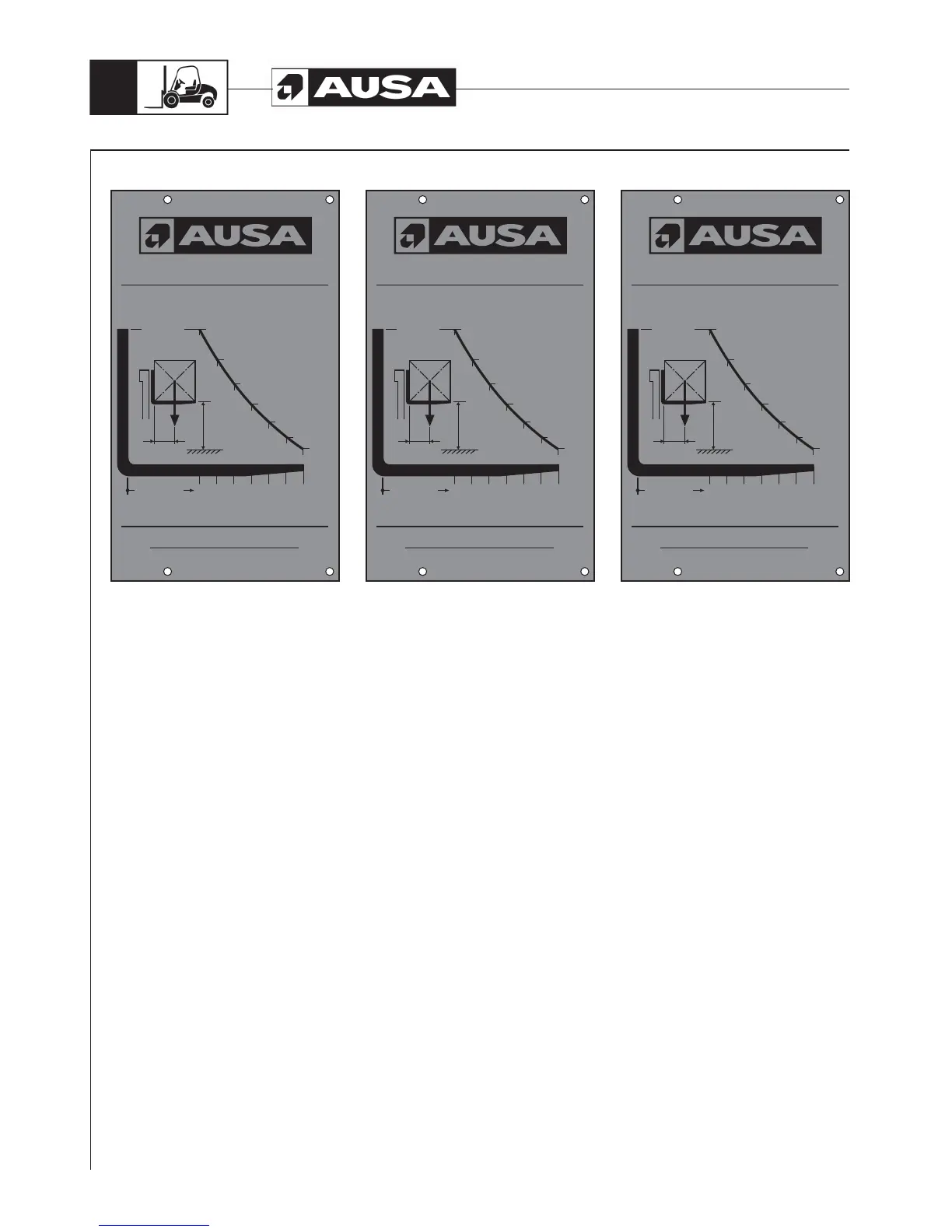

Load charts for C350H / C350H x4 front wide axle and and quick attach fork carriage (24 in. load centre)
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
22ft 5in
1.168
1.089
1.018
0.959
0.903
0.855
0.813
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
17ft 8in
3.115
2.903
2.718
2.555
2.411
2.281
2.167
C350H / C350H x4
08243 MANRESA (SPAIN)
43.01350.28
AUSA Center, S.L.U.
D = Load center extension from face of forks
D inches 24 28 32 36 40 44 48
D
G
G LBS
MAXIMUM FORKLIFT LOAD
ON LEVEL SURFACE
MODEL
10ft 10in
13ft 1in
12ft 2in
6.814
6.351
5.945
5.590
5.256
4.993
4.739
