C300H / C300HI / C300H x4 / C300HI x4
C350H / C350HI / C350H x4 / C350HI x4
65

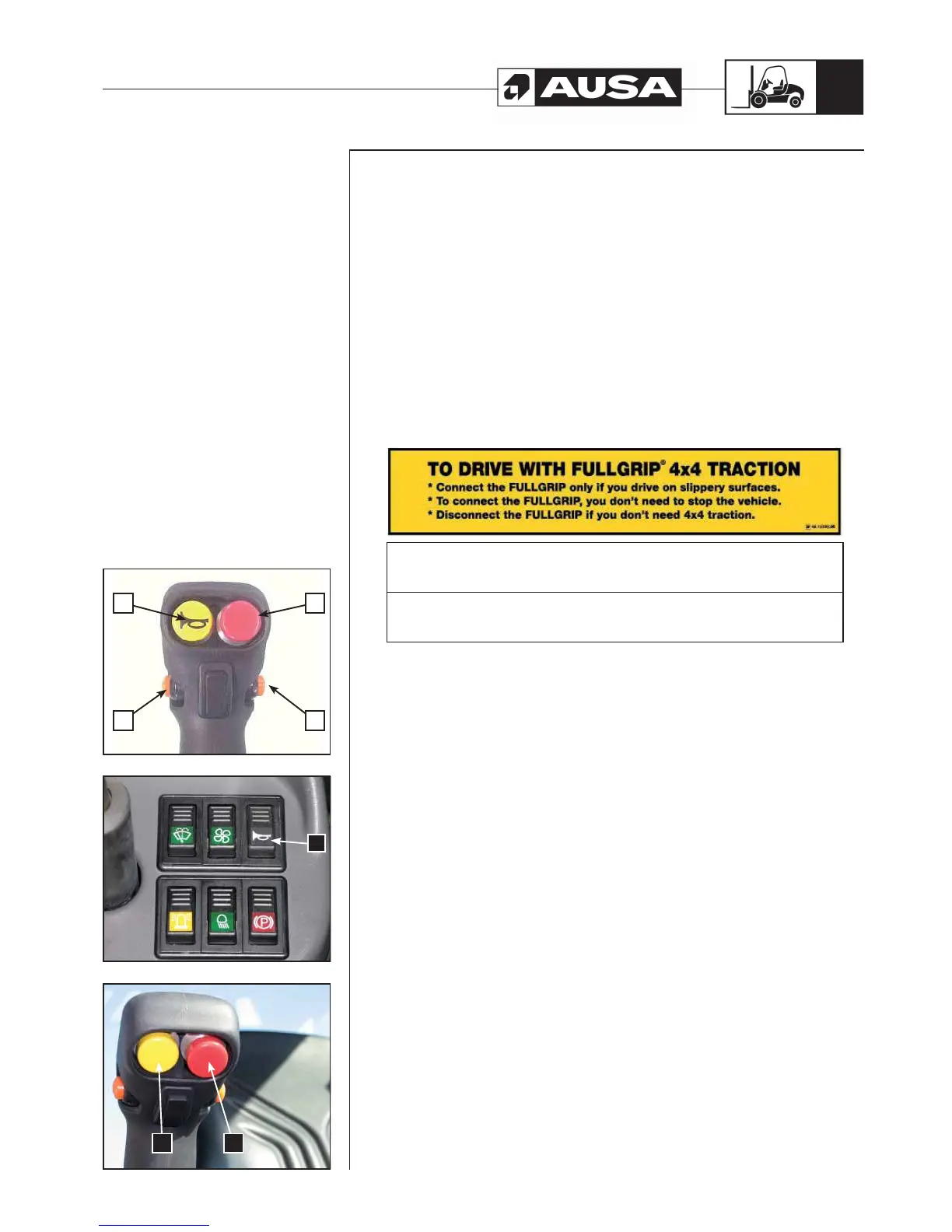

Horn (fig. 1, 2)
C300H / C300HI / C350H / C350HI
The horn is operated using the button (f) located on the right of the joystick.
C300H x4 / C300HI x4 / C350H x4 / C350HI x4
The horn is operated using the button (g) located on the upper right switch of the
instrument panel.
4x4 connection (FullGrip
®
System) (fig.3)
Connecting the 4x4
The 4x4 connects by pressing yellow switch (i) located underneath the joystick at the
right side.
Disconnecting the 4x4
The 4x4 disconnects just leaving yellow switch (i) on its rest position.
CAUTION
Do not connect the 4x4 traction at high speed
REMARK: Moreover, some models may differ from (fig. 3) and assemble a plastic
plug instead of red switch (h).
Controls
and instruments
(fig. 2)(fig. 3) (fig. 1)
f
6
h
5
i
h
g
