C300H / C300HI / C300H x4 / C300HI x4
C350H / C350HI / C350H x4 / C350HI x4
70

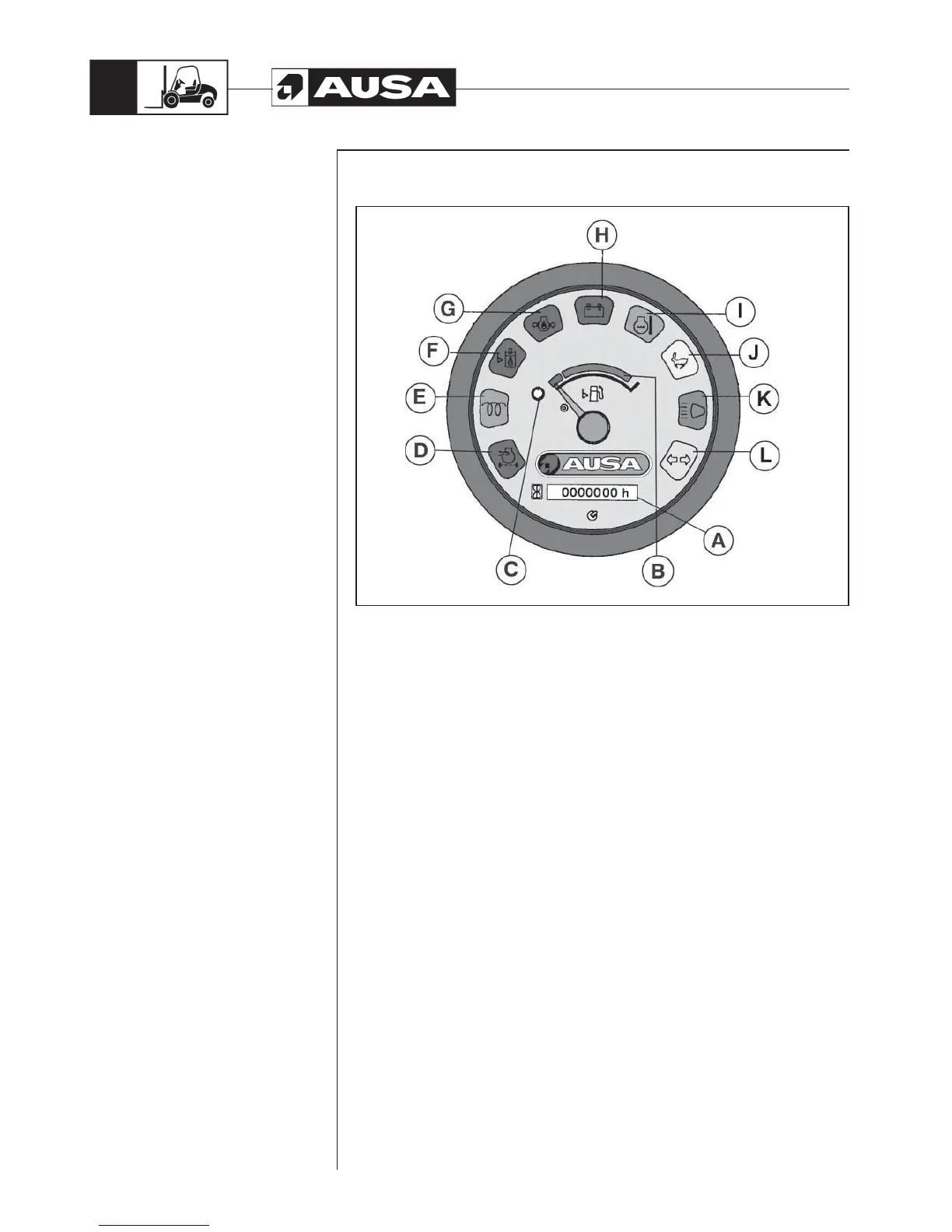

Multifunction instrument (fig. 1)
A- Hourmeter. This gauge indicates the total running time of the forklift engine to
enable servicing of the engine at proper intervals. (See MAINTENANCE CHART
for servicing frequency).
B- Fuel level. This gauge indicates the diesel fuel level in the tank.
C- Fuel reserve indicator lamp. This lights up when the level of fuel in the tank falls
into reserve.
D- Air filter warning lamp. When the air filter of the diesel engine becomes clogged
with dirt, this lamp will light. The air filter should be immediately cleaned or serviced.
E- Engine pre-heat indicator lamp. When this lamp glows it indicates that the
engine pre-heat plugs are in operation and heating the combustion chamber the
temperature required to start the engine.
F- Hydraulic oil level warning lamp. This lights up and emits an audible warning
when the hydraulic oil level is at the minimum level. Oil should be added to top up
the level to the correct level
G- Engine oil pressure warning lamp. When the ignition is on, this lamp lit and
turns off when the engine is running. If this lamp turns on emits an audible warning
while the engine is running, the engine must be stopped immediately to prevent
damages. Check the level and add oil if necessary.
H- Battery charge warning lamp. This lamp shows the condition of the battery
and indicates if the battery charge is too low or if the alternator is not charging properly.
Once the engine starts to run, this red lamp turns off If it remains lit, stop the engine
and determine the cause.
I- Engine temperature warning lamp. This gauge shows the temperature of
the coolant in the engine cooling system. When this lamp glows emits an audible
warning means that the engine is operating at high temperature which could
damage the engine. The engine should be stopped immediately to determine the
cause of the high temperature. It could be low coolant, debris in the radiator or a
thermostat, which does not operate correctly.
J- No application in this model
K- High beam indicator lamp (with lighting equipment) (). This lamp is lit
when high beams are selected.
L- Turn signal indicator lamp (with lighting equipment) (). This lamp will
blink indicating turn signals are operating.
(fig. 1)
Instrument Panel
and controls
