Austroflamm Xtra - 2 Installing Xtra

2 | Installing Xtra EN Xtra montieren
10
2 Installing Xtra
1
2

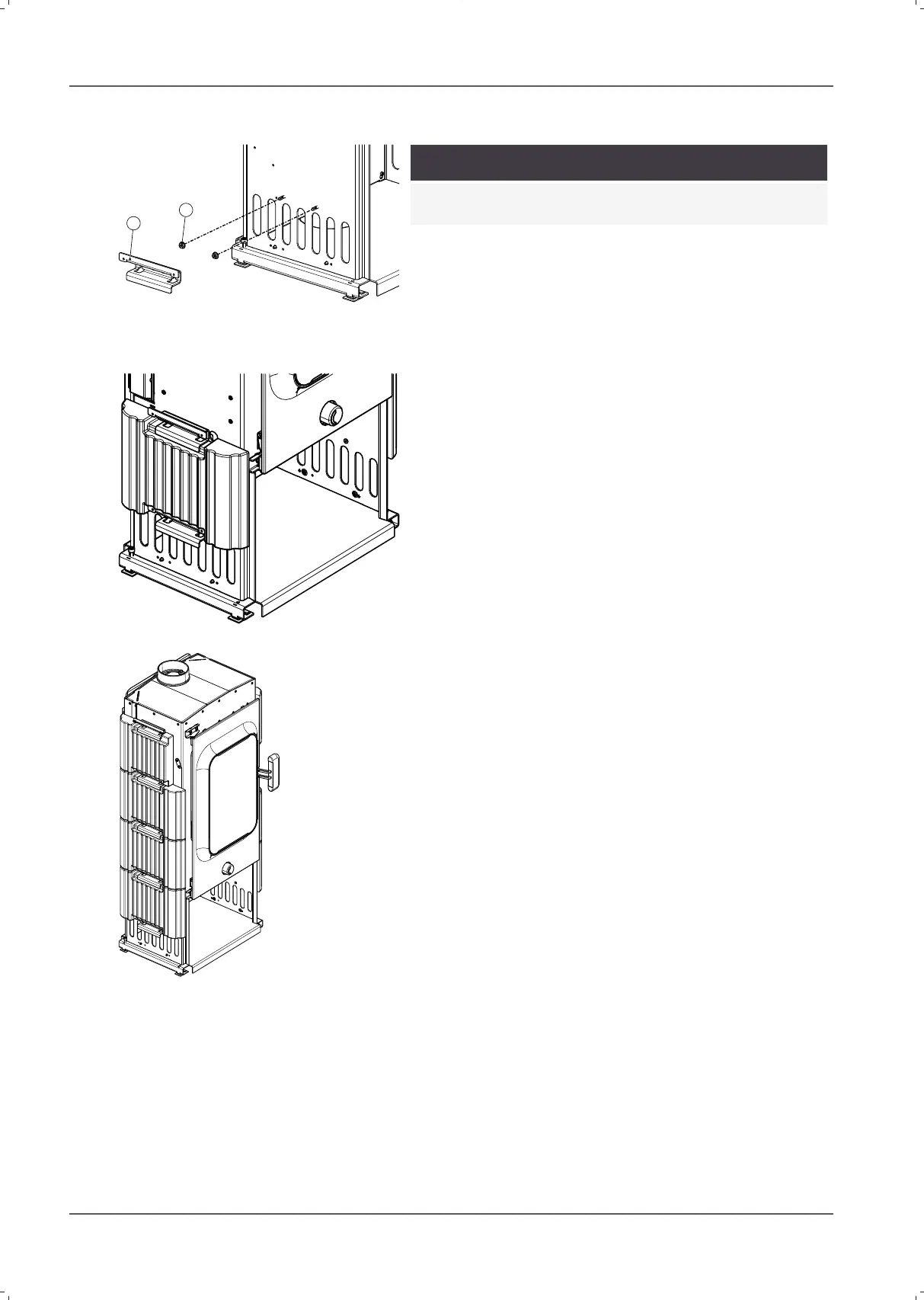

Fig.1: Installing the mounting
TIP
It is absolutely vital to start with the left-hand side. Other-
wise the stove may tip over!
ü Install the HMS bricks, always starting on the left side
from bottom to top.
1) Place two nuts (1) on the grub screws in the body.
2) After that the mounting (2) can be placed on the grub
screws from above and the nuts (1) can be tightened.
Fig.2: Placing brick on mounting
3) Now place the first (lowest) HMS brick on the mount
and then set the next mount on the grub screws.
Fig.3: Bricks installed on the left
4) Proceed as in steps 2, 3 and 4 for the remaining bricks
and install them.
ð Note that the top brick is narrower than the re-
maining bricks.
