3 Setting Single-phase Meters
This chapter describes how to set the single-phase meters: SDM230-Modbus V1 and
SDM230-Modbus V2.
3.1 Preparation
Make sure the meter and the Autel charger are properly connected in accordance with
the figures below: SDM230-Modbus V1 (Figure 1). SDM230-Modbus V2 (Figure 2).
NOTE
To avoid electric shock, cut off power prior to connecting the meter and the charger.

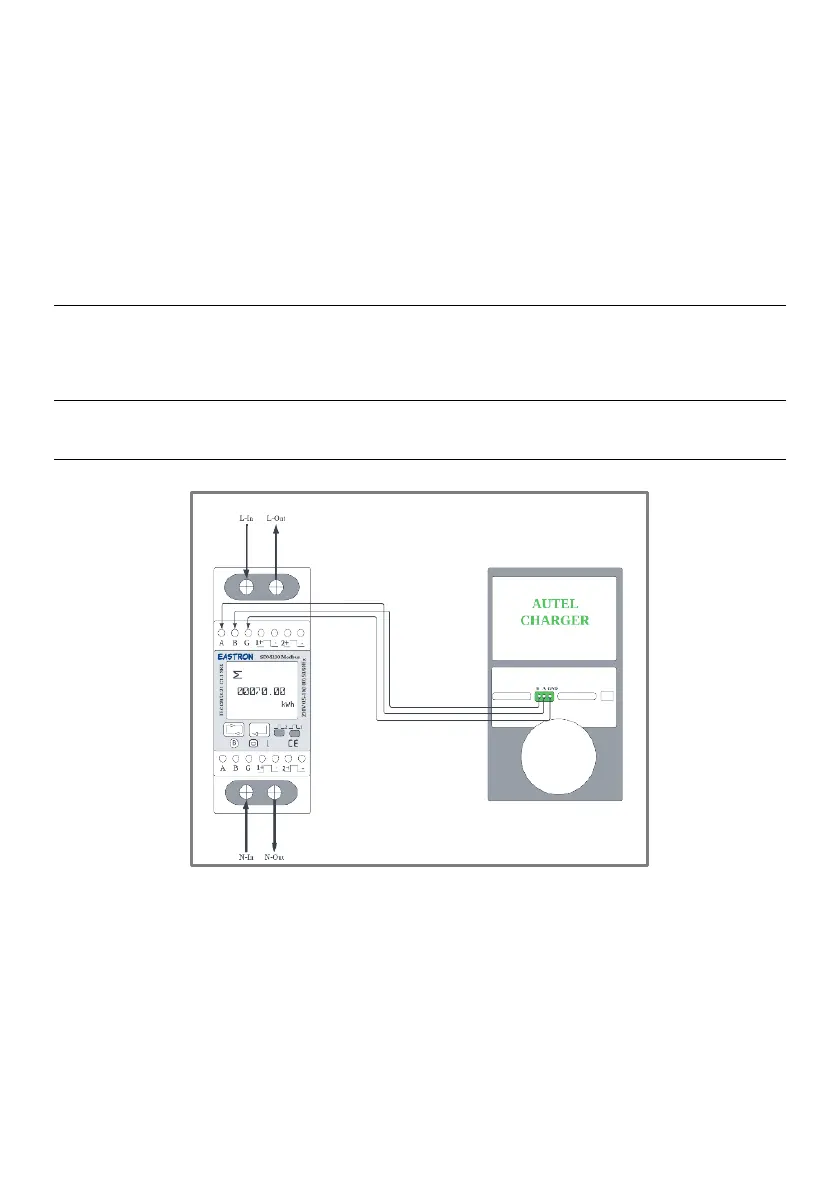

Figure 1
To Next Page
