Diagnostics Operations Diagnosis
29

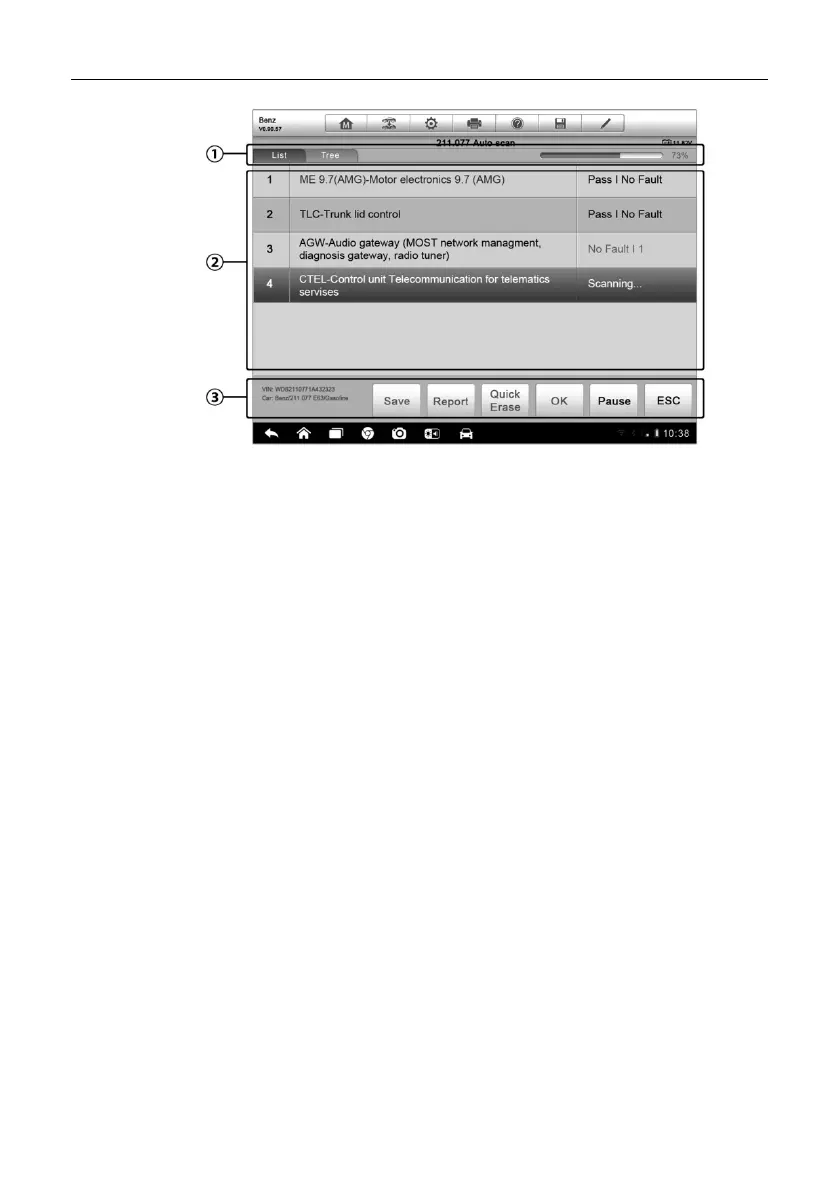

Figure 4-6 Sample Auto Scan Operation Screen
1. Navigation Bar
2. Main Section
3. Functional Buttons
Navigation Bar
1. List Tab – displays the scanned data in list format
2. Tree Tab – display the scanned data in system distribution diagram
format
3. Progress Bar – indicates the test progress
Main Section
A. List Tab
Column 1 - displays the system numbers
Column 2 - displays the scanned systems
Column 3 - displays the diagnostic marks indicating different conditions
of the test result:
-!-: Indicates that the scanned system may not support the code
reading function, or there is a communication error between the tester
