22

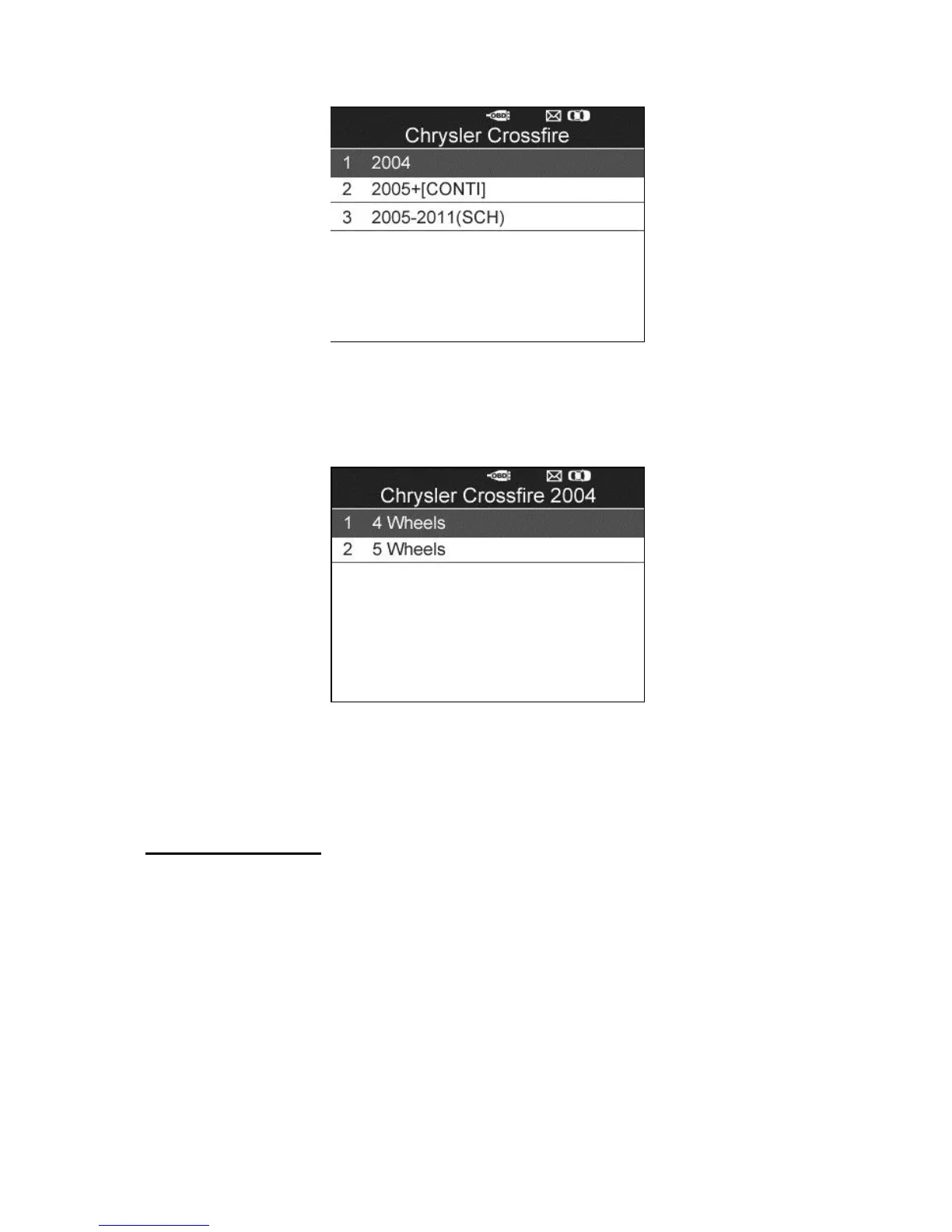

Select by Year:
Figure 4.3
4) For some vehicle types an option screen will show up to let users
choose between 4 Wheels and 5 Wheels test mode.
Figure 4.4
Depending on the test mode (All Wheels or One Wheel), results
are displayed in different manners.
All Wheels Mode
In this mode, a function menu screen will show up (Figure 4.5). Use
the UP/DOWN and LEFT/RIGHT scroll button to select a desired
wheel and press the TEST button to start sensor activation (Figure
4.6).
