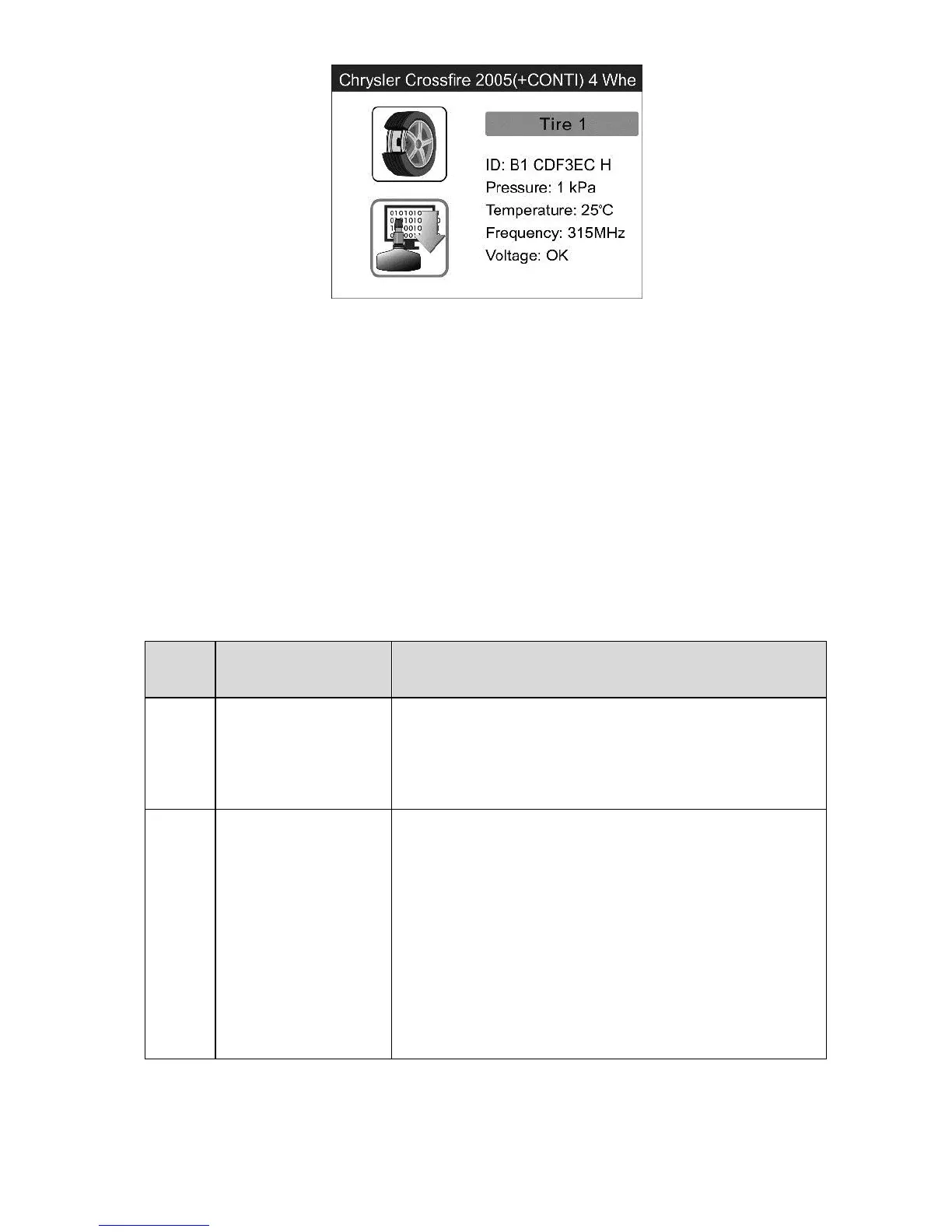

Figure 4.9
Once the first sensor test is completed, the screen will remain for 3
seconds for data viewing and then automatically switch to next sensor
test. Follow the same procedure for the other sensor tests.
Under One Wheel mode, the tool can save up to 10 TPMS sensor data
records at each time. Select the wheel icon and press Y button to view
all sensors’ information. Press the UP/DOWN and LEFT/RIGHT
scroll button to turn over data screens while viewing. If more than ten
records are stored, the latest record will overwrite the oldest record.
Table 1 Possible Results for Testing
Icon
Test Results
Description
√
Successful
Sensor Read
TPMS sensor is successfully activated and
decoded. The tool displays the sensor
information.
x
Failed Sensor
Read
If the search period expires and no sensor
is activated or decoded, it may be caused
by wrong sensor fitting or
non-functioning sensor. The tool then
displays a message “No sensor detected”.
In this case, repeat testing to confirm the
TPMS failure.
