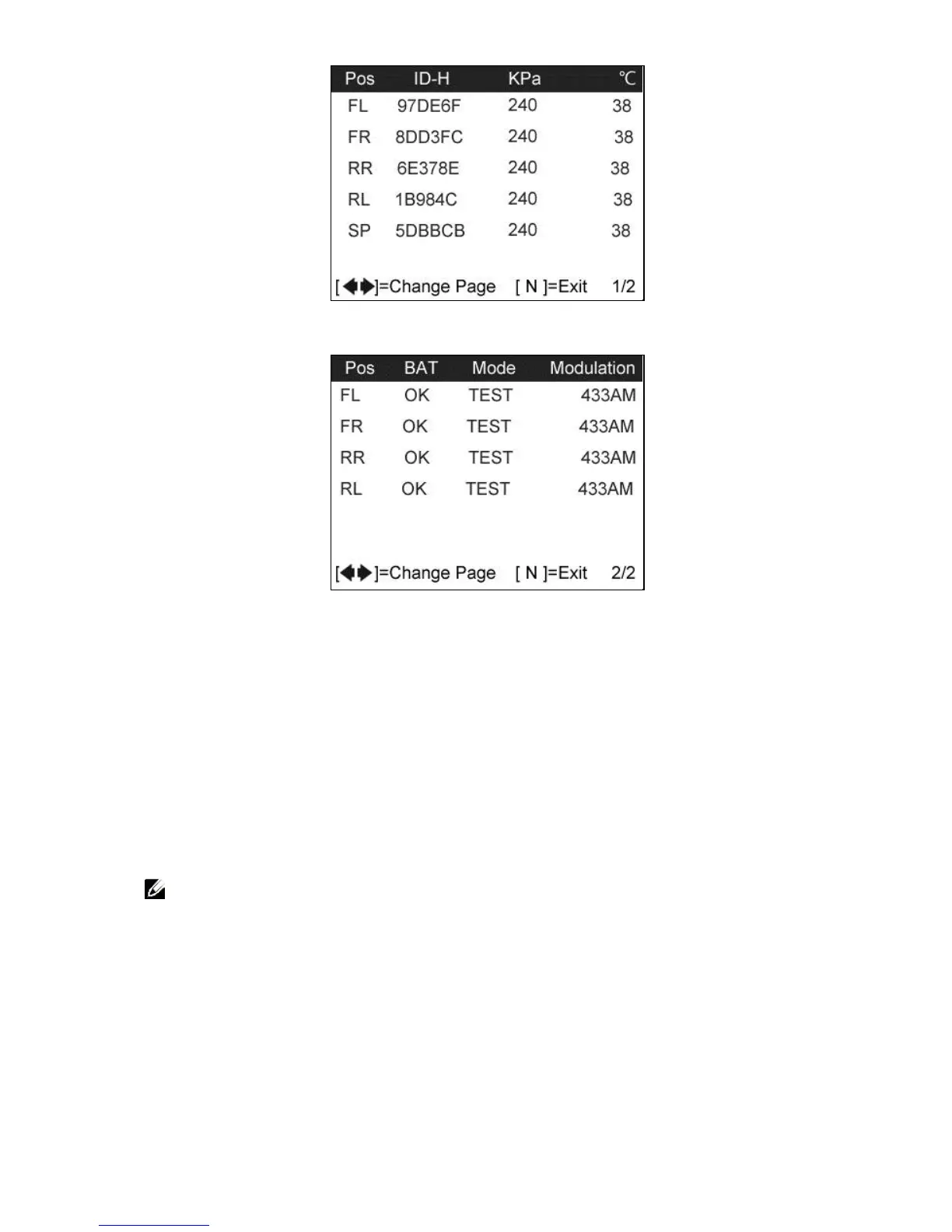

Figure 4.13
Figure 4.14
[Pos] – Indicates the wheel sensor position.
[ID-H/D] – Shows sensor ID data.
[kPa/Psi/Bar] – Indicates tire pressure.
[°C/°F] – Indicates tire temperature.
[BAT] – Indicates battery condition.
[Mode] – Defines tire sensor working mode or status.
[Modulation] – Indicates sensor signal amplitude.
NOTE: Different ID format, pressure and temperature units will
display at the title bar according to the device’s system setting,
please refer to 3.8 System Setting for detailed instruction.
Select by Latest Test
This function allows you to review the last tested sensor data and
activate the sensor by using the wave signal of the latest trigger event,
