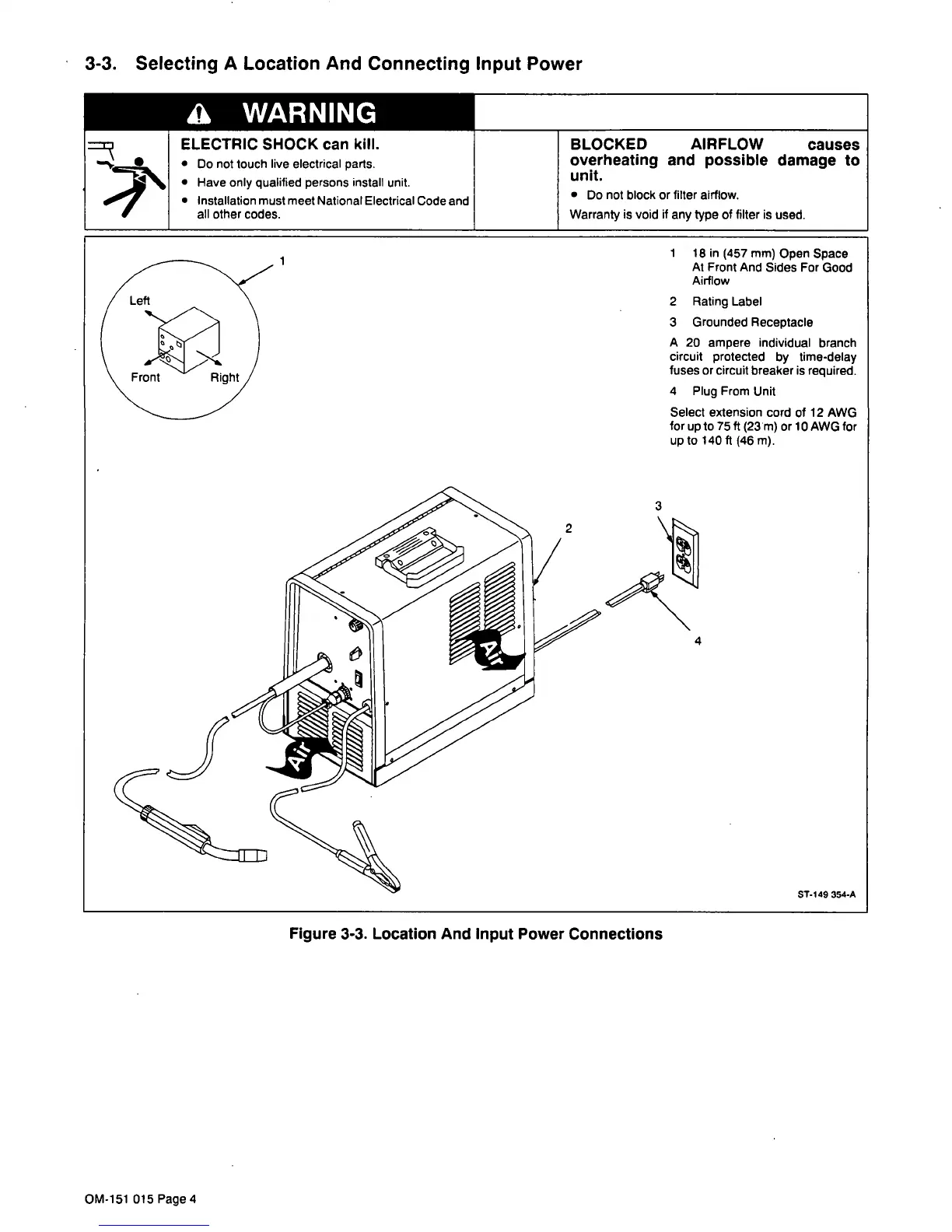

AUTO ARC 120 - LOCATION AND INPUT POWER CONNECTION

3-3.
Selecting
A
Location And
Connecting
Input
Power
A
WARNING
ELECTRIC
SHOCK
can
kill.

Do
not
touch
live electrical
parts.

1-lave
only
qualified
persons
install
unit.

Installation
must meet
National Electrical Code
and
all other codes.
BLOCKED
AIRFLOW
causes
overheating
and
possible
damage
to
unit.

Do
not
block
or
filter airflow.
Warranty
is void
if
any
type
of filter
is
used.
1
18
in
(457
mm) Open Space
At
Front And Sides For
Good
Airflow
2
Rating
Label
3
Grounded
Receptacle
A
20
ampere
individual branch
circuit
protected
by time-delay
fuses
or
circuit
breaker is
required.
4
Plug
From
Unit
Select
extension cord
of
12
AWG
for
up
to
75
ft
(23 rn)
or
10 AWG for
up
to
140
ft
(46
m).
3
2
4
Figure
3-3.
Location
And
Input
Power
Connections
5T-149
354-A
OM-151
015
Page4
