OM-157 066 Page 18

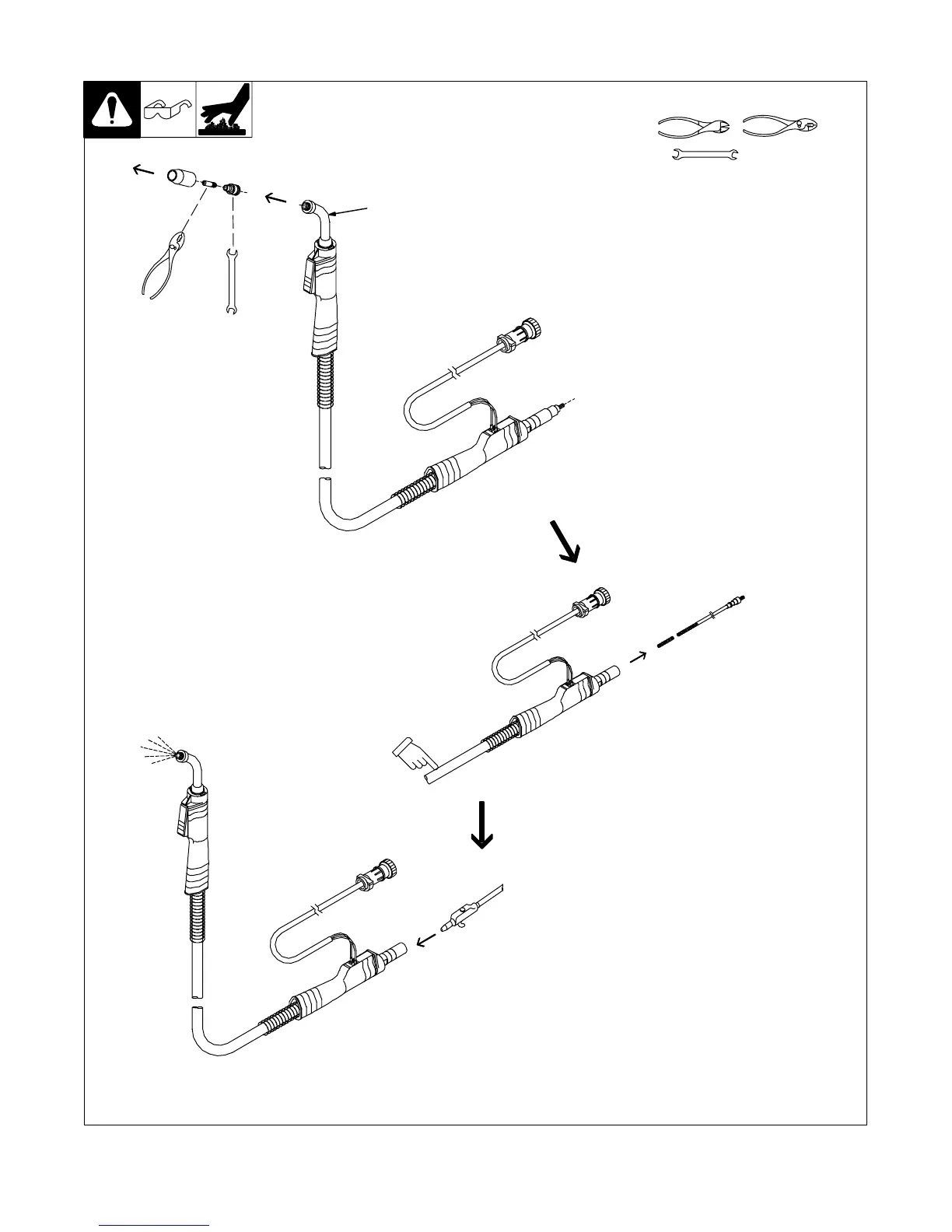

4-6. Cleaning Or Replacing Gun Liner
Ref. ST-800 797-C
3/8 in
To Reassemble Gun:
Insert new liner.
Install and tighten wire outlet guide.
Cut liner off 3/4 in (20 mm) (3/8 in
[9.5 mm] for aluminum) from head
tube.
Install adapter, contact tip, and
nozzle.
Lay gun cable out straight
before installing new liner.
Head tube
3/8 in
Remove liner.
Remove nozzle, contact tip,
adapter, and wire outlet guide.
Blow out gun casing.
Y Disconnect gun first.
Tools Needed:
To Next Page
