AUTO SKEW SNIPE 2 - Caravan;Motorhome Installation; Required Installation Space

ENGLISH - 14
Please allow that there is enough space around SNIPE2 for at antenna section to complete
a full 360° scan of the sky and return to the HOME position.
8. Caravan/Motorhome Installation

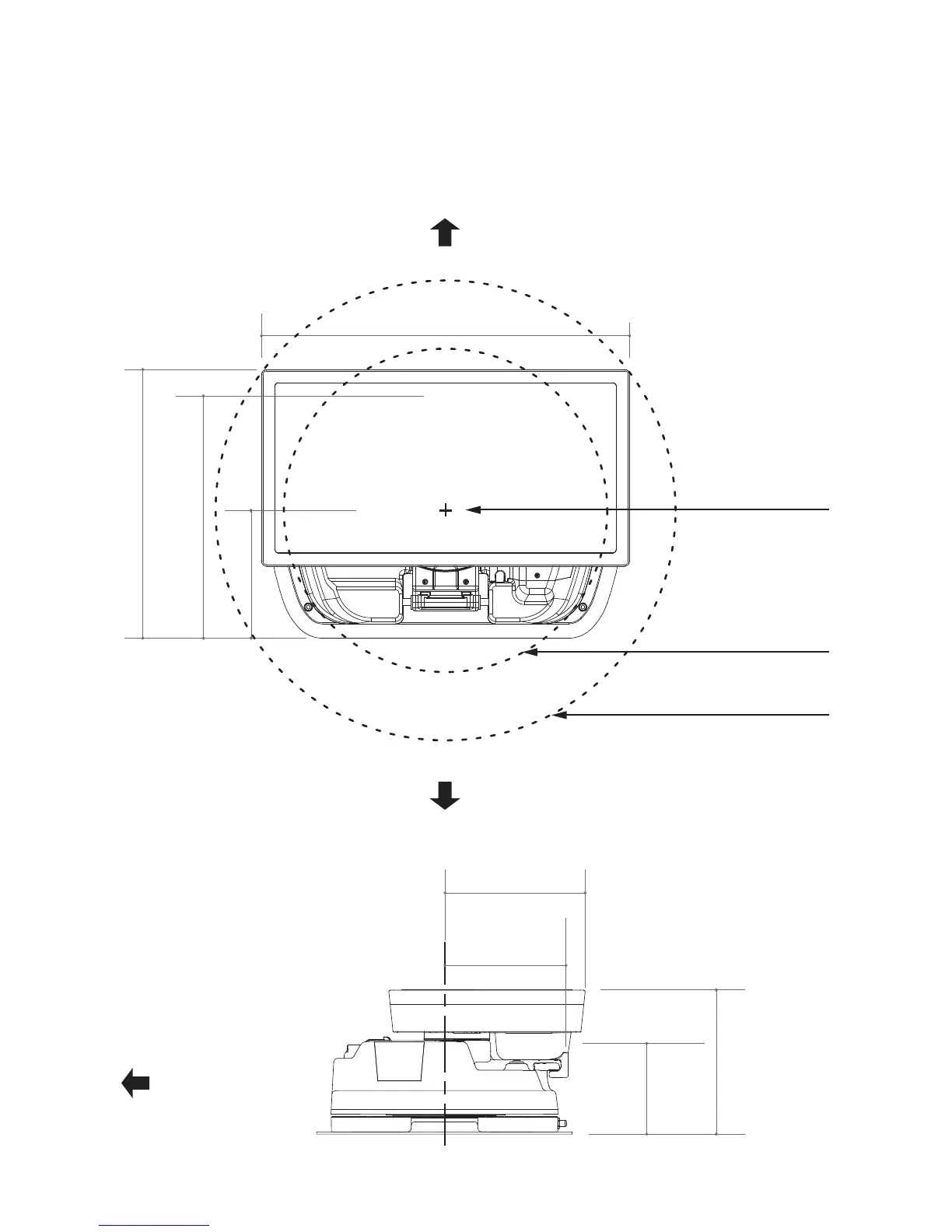

8-1 . Required space for SNIPE2
Driving direction
Driving direction
Vehicle rear
B : Radius 32cm
up to a height 19.4cm
A : Radius 22.5cm
up to a height 12.9cm
Center of
the rotation unit
51.5cm
17.8cm
33.8cm
37.5cm
19.4cm
19.6cm
12.9cm
16.9cm
