ENGLISH - 15
※ Mounting plate direction
Silicone
Receiver cables
Allen wrench
Controller bracket
Controller cable
Controller
Friction tape
M6 × 15(8) , M4 × 16(2) , M4 ×20(10)
Mounting plate
Cigarette lighter adaptor (Power input cable)
Cleaner
Power drill
2mm drill bit, over 20mm drill bit
Cable holder & gland

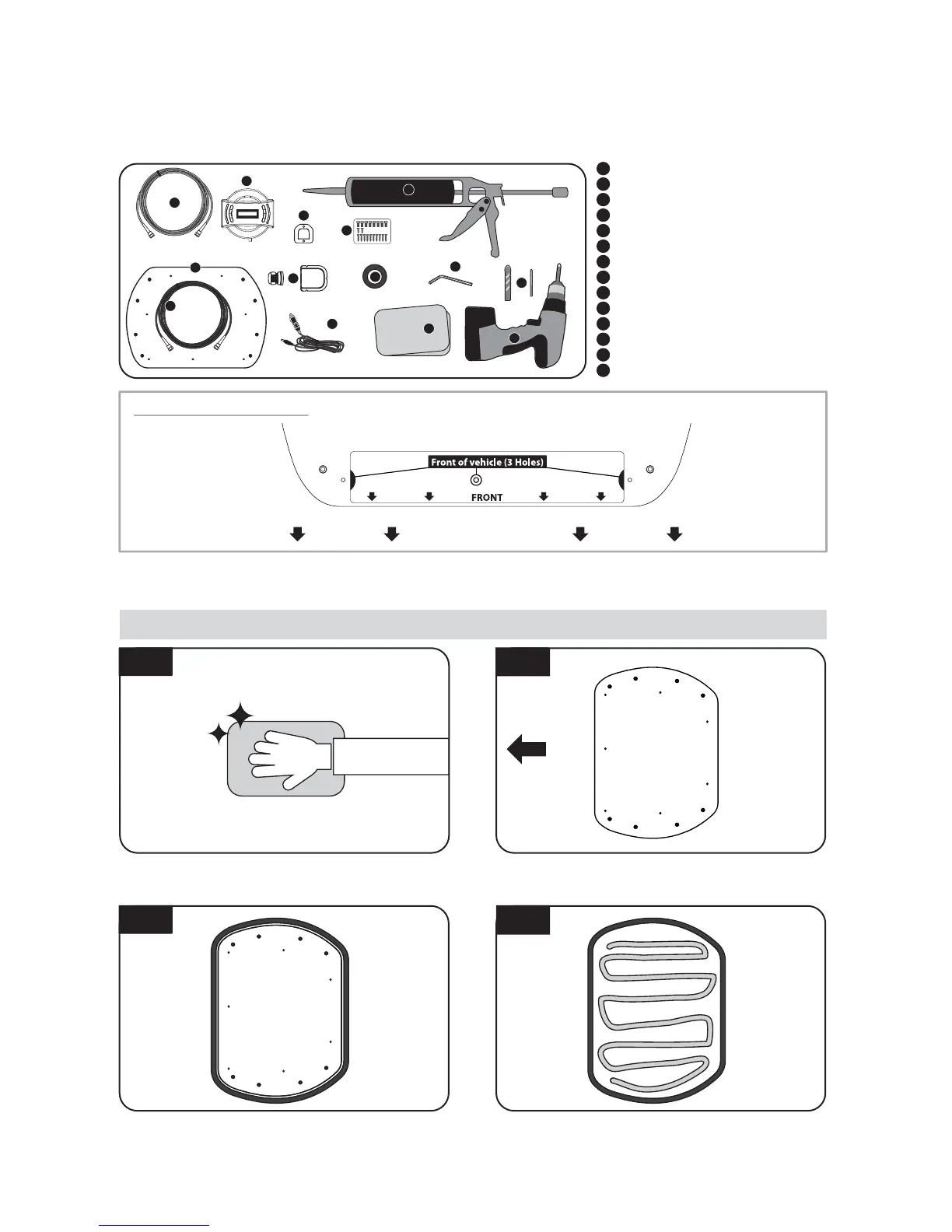

8-2. Equipment for installation
8-3. Instruction for installation
A. Mounting plate installation on a vehicle roof
1
3
2
4
6
7
10
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
8
12
13
14
Put aside the mounting plate to apply silicone
within the attached tape line but leave 2cm
inward gap from the line
Attach friction tape outside of the mounting
plate by 5mm away from the plate edges
A-4
A-2
FRONT
Clean the surface with cleaner
A-3
A-1
Locate mounting plate in the center of the
vehicle roof
5
9
Driving direction
To Next Page
