ENGLISH - 6
3. Operating Instruction

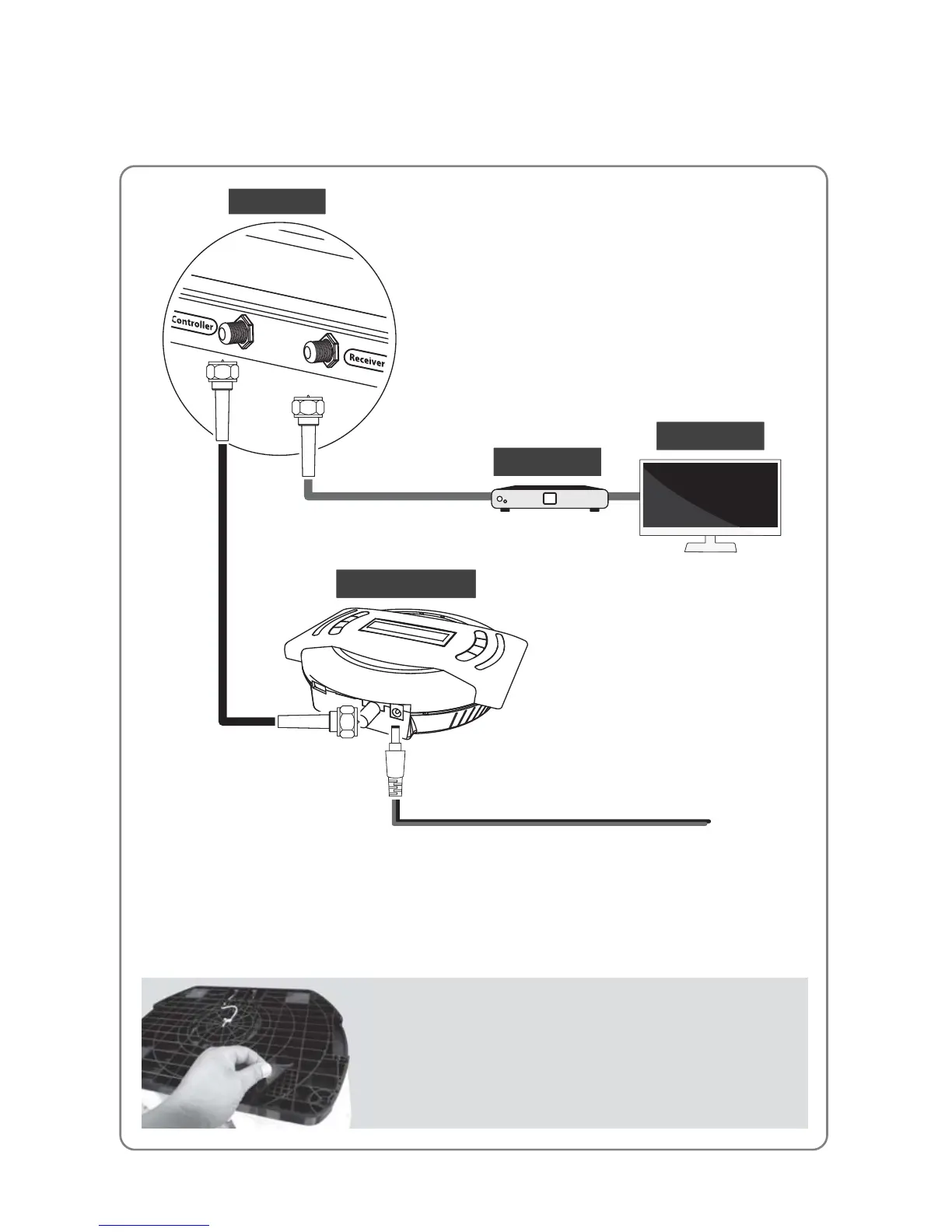

3-1. Connection diagram
Portable use
Attach four(4) base pads to the bottom of antenna
base.
Cigarette lighter adaptor or Power input cable
Receiver cable
(Grey color)
Controller cable
(Black color)
MAIN UNIT
RECEIVER
TV
CONTROLLER
Use black controller cable to connect the antenna to the controller.
Controller cable looks similar to the receiver cable but has dierent color and
labeling. Please check the labels to use the correct cable for the job.
Please ensure the cables that are supplied are used and not modied in anyway.
