NOTE: Actual application may vary slightly from illustrations.

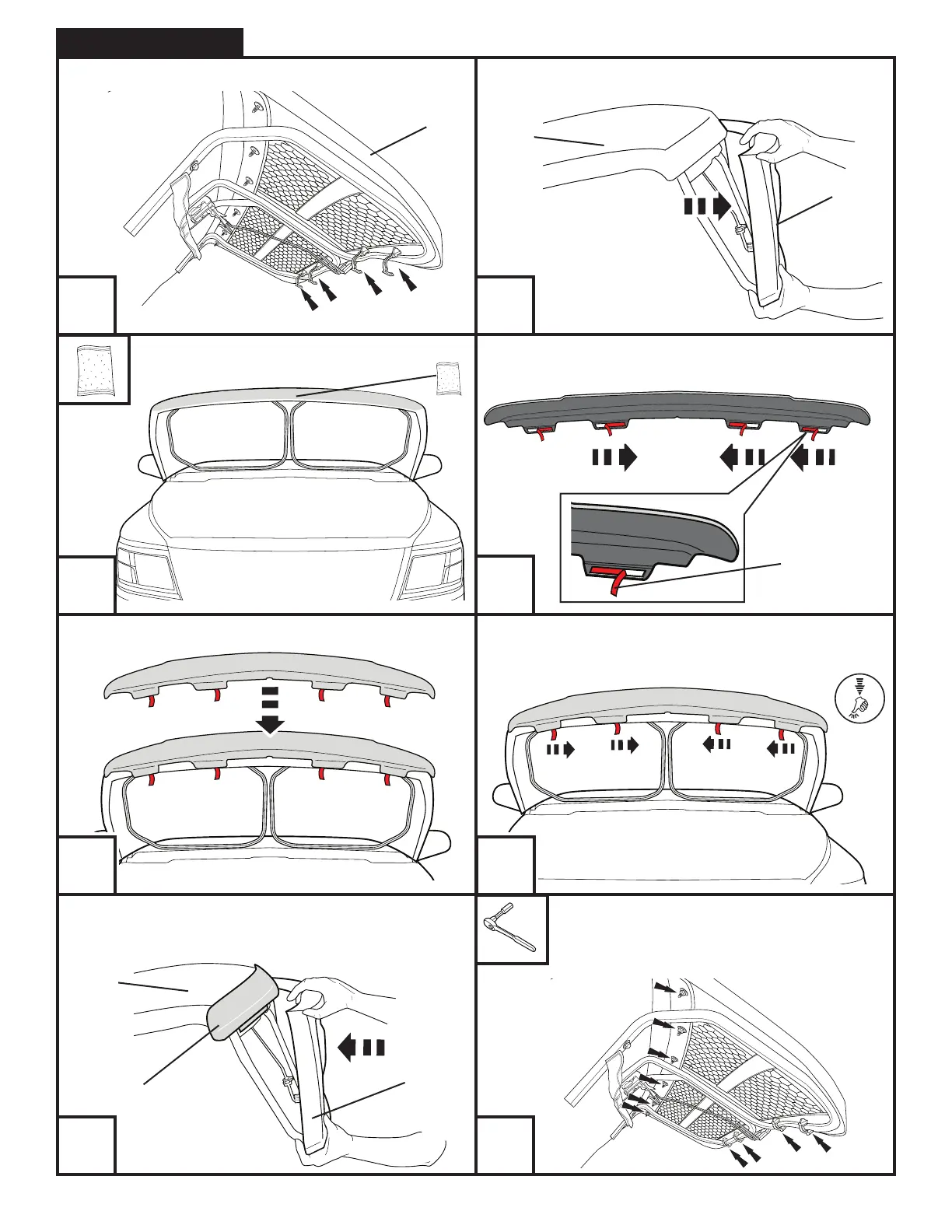

Installation Steps
Page 2 of 3
3
4
5
7
9
Expose 2 inches (5 cm) of tape liner on each of the flanges of the
hood shield. Ensure that free ends of tape are accessible.
6
8
Align hood shield with hood edge.
10
Unsnap (4) fasteners along the bottom of the grill
Lower the hood slightly, and carefully remove the grill
off the hood and set aside.
grill
grill
hood
Remove remaining tape liner by pulling on free ends. Press
firmly on flanges to ensure adhesion of tape to hood surface.
Free ends
Carefully set the grill back into place on the hood. The
hoodshield should be BETWEEN the grill and the hood.
grill
hood
hoodshield
Secure the grille to the hood by snapping the (4) previ-
ously removed fasteners back in place on the bottom
of the grill. Replace (6) previously removed nuts to
secure the top of the grill.
Clean the leading edge of the hood with a soft
cloth.
To Next Page
