Page 3 of 3
11 12
14
13
Close hood. Apply (4) bump ons to hood and
fender surfaces,
NOTE: Actual application may vary slightly from illustrations.

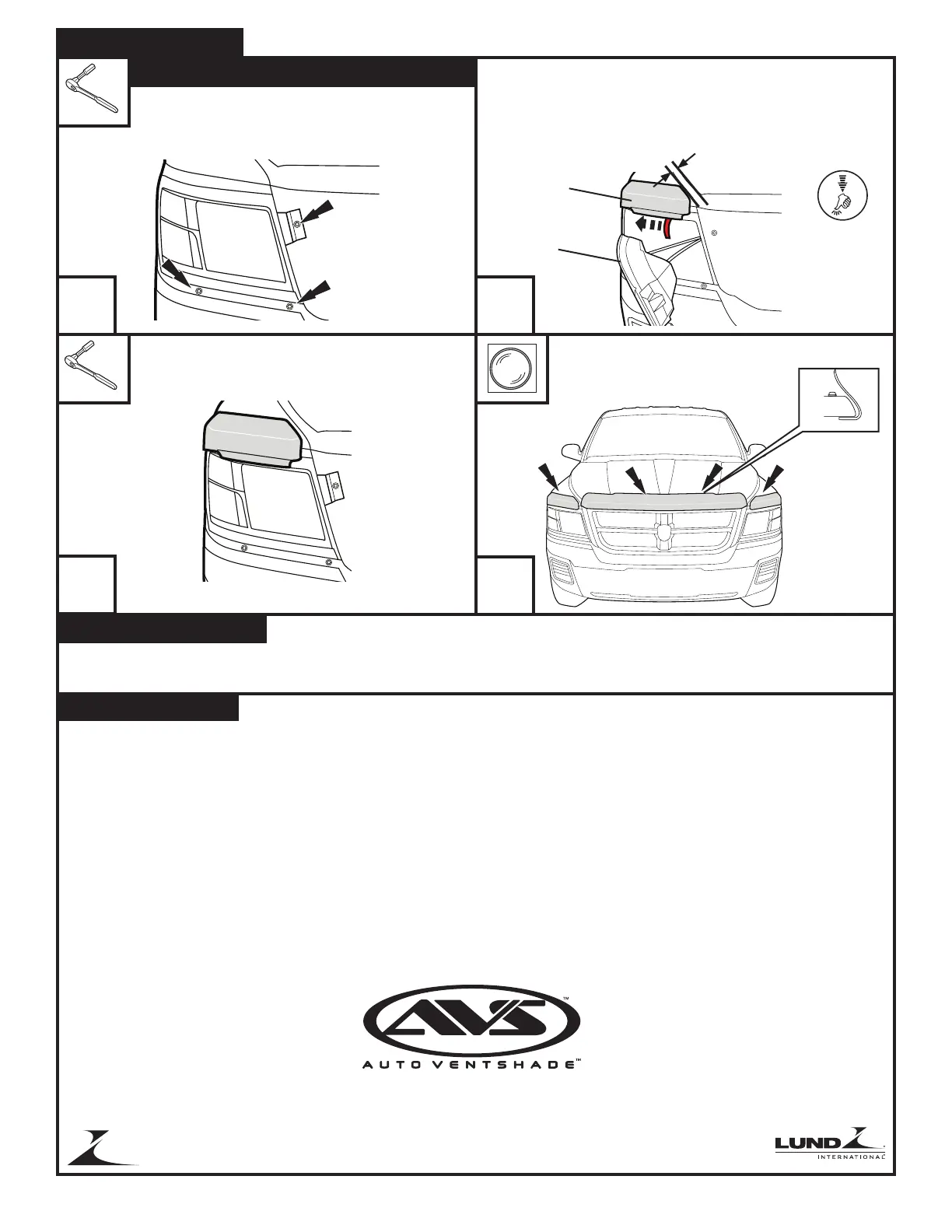

Installation Steps
Carefully disengage the headlight assembly. Close hood and per-
form a trial fit, positioning hood shield to allow a 1” gap between
edge of hood shield and the closed hood. Repeat Steps 5-7
above to attach the eyebrow hoodshield to the fender.
hoodshield
headlight
assembly
Raise hood, and reinstall the headlight assembly. The
hoodshield should be BETWEEN the fender and the head-
light assembly.
With the hood still raised, use an 8mm socket with
extension to remove (3) nuts used to retain the pas-
senger side headlight.
NOTE: Repeat to install drivers side eyebrow hoodshield.
