AUTODA AD2017D - 3.2 Control Panel Operation

10
CO
M
Common End of Relay
Output
OU1
Three Output Ports with Two
Types: Relay Type and
Transistor Type. For Output
Port in Transistor Type, It is
OU2
OU3
IN1
Both Input Ports are Valid
When Inputting a Low Level
(DC24V-) Signal.
IN2
TCL
TEDS Clock
TDA
TEDS Data
AO+
Analog Signal +
AO-
Analog Signal -

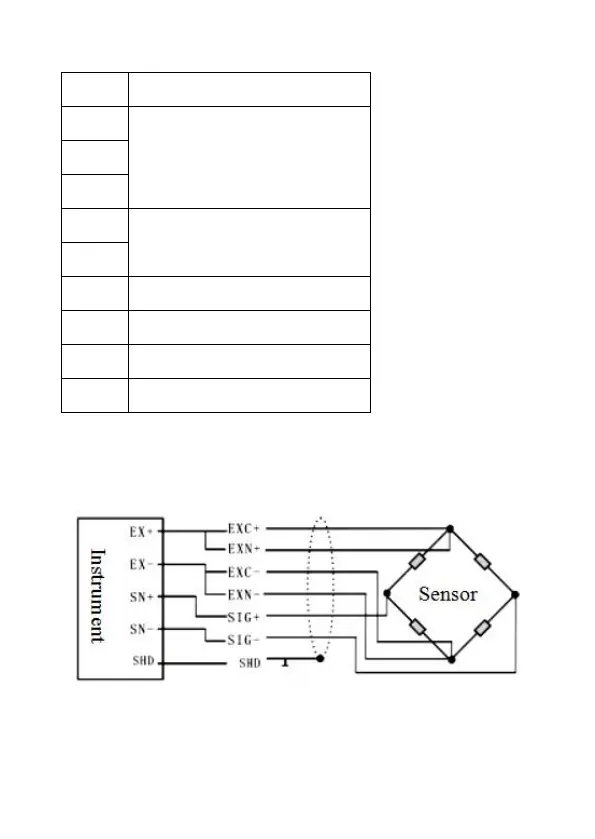

3.1.2 Wiring Diagram
Connecting Method of Six-wire Sensor
