NMEA Bridge Operation and Installation Handbook

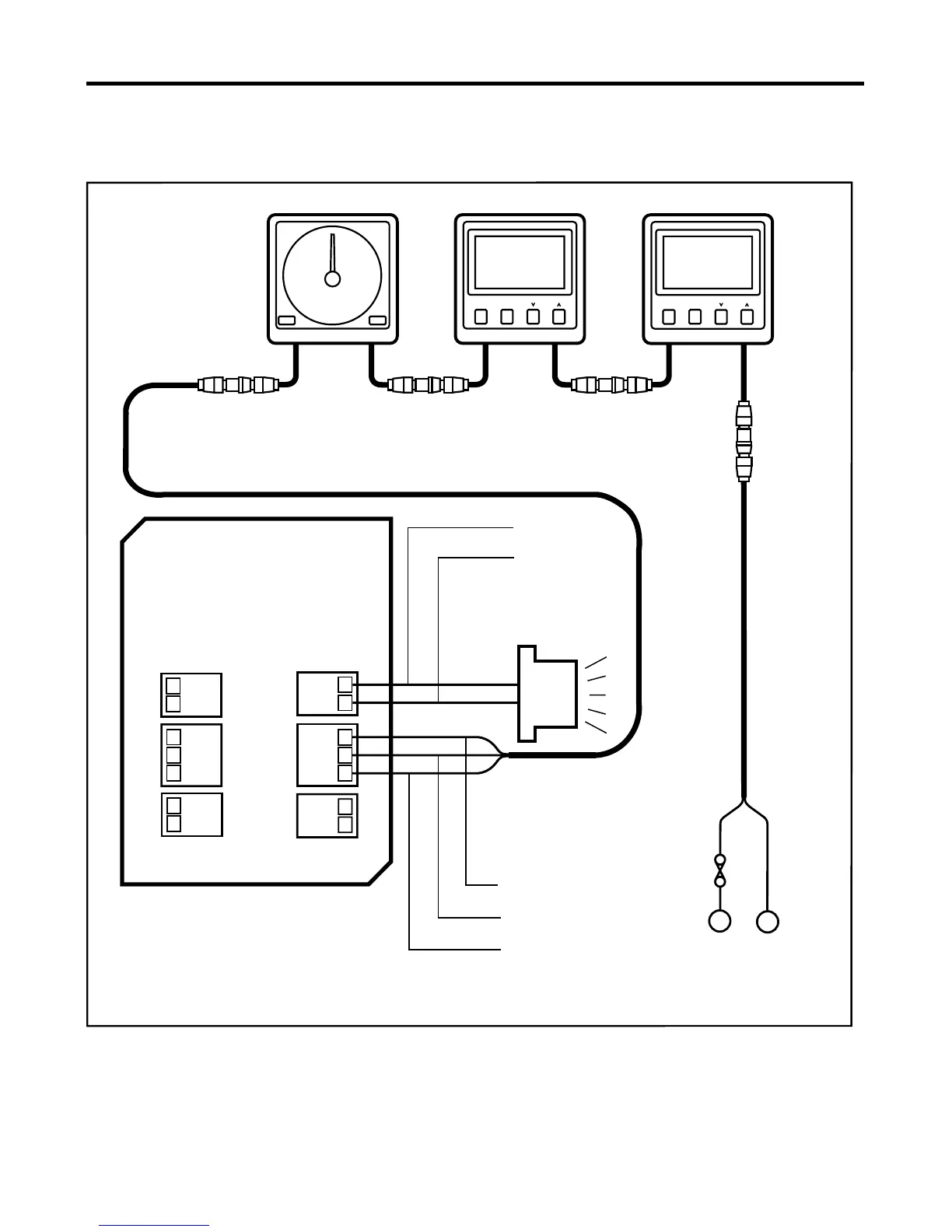

The Main Alarm should be wired to the NMEA Bridge as follows:

D1769-1

NMEA

SEATALK

ALARM

OUT

+ –

Screen (0v)

Yellow (Data)

Red (v+)

Red

(v+)

Screen

(0v)

Power

Main Alarm

Z035

+ –

OUT

+ –

RS232

SEATALK

NMEA

+ –

Red

Black

3.4 Connecting a Personal Computer

The NMEA Bridge can be used to send or receive NMEA data to

or from a personal computer via the "RS232 OUT and NMEA
