primary harness (H1), 8-pin connector

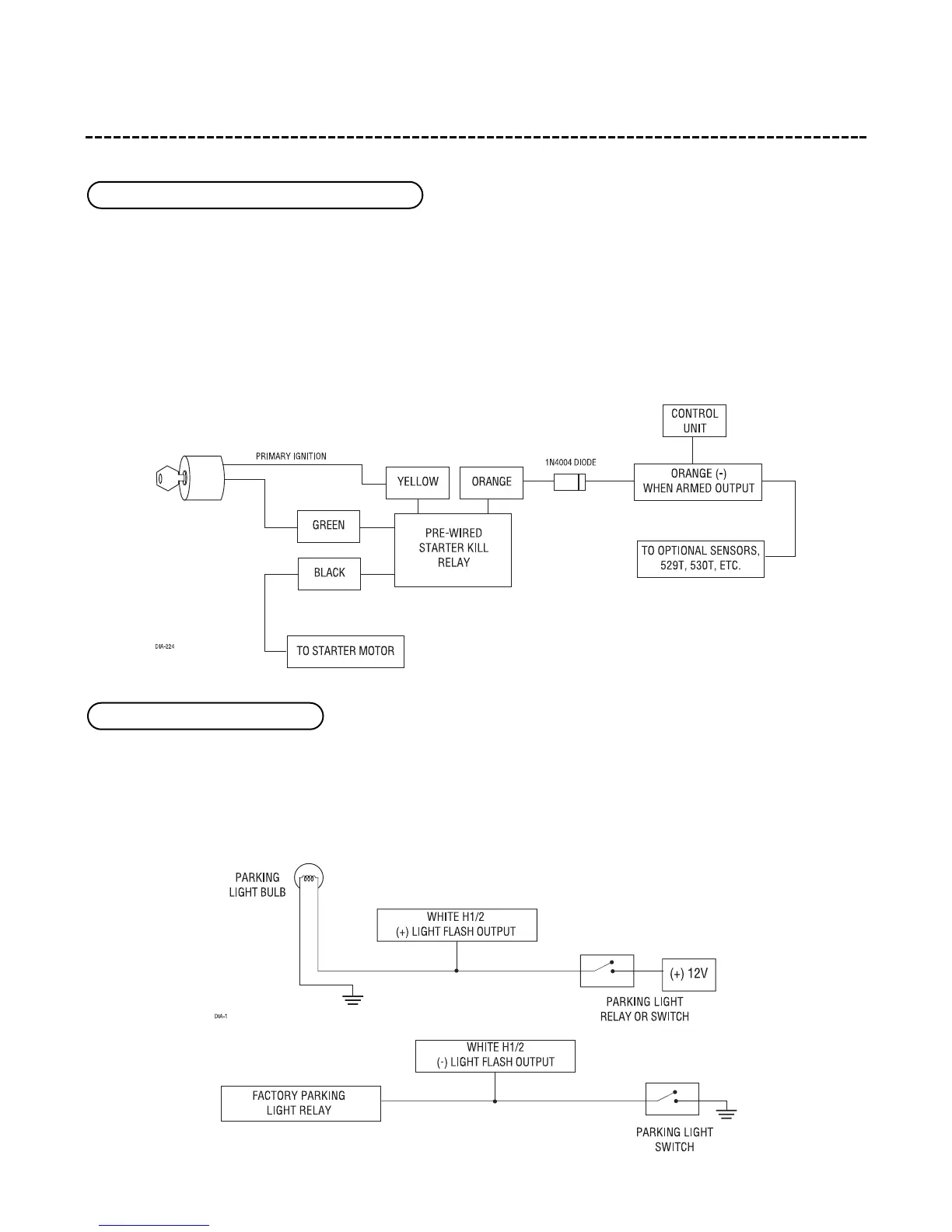

This wire supplies a (-) 500 mA ground as long as the system is armed. This output ceases as soon as the system
is disarmed. The orange wire is pre-wired to control the 8618 starter kill relay.
NOTE: If connecting the orange wire to control another module, such as a 529T or 530T window
controller, a 1 amp diode (type 1N4004) will be required. Insert the diode as shown below.
IMPORTANT! Never interrupt any wire other than the starter wire.
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper under
the sliding door is moved to the opposite position (see Internal Programming Jumpers section), this wire sup-
plies a (-)200 mA output. This is available for driving (-) light control wires in Toyota, Lexus, BMW, some
Mitsubishi, some Mazda, and various other models.
H1/2 WHITE light flash output
H1/1 ORANGE (-) ground-when-armed output
