© 1999 Directed Electronics, Inc. Vista, CA 23

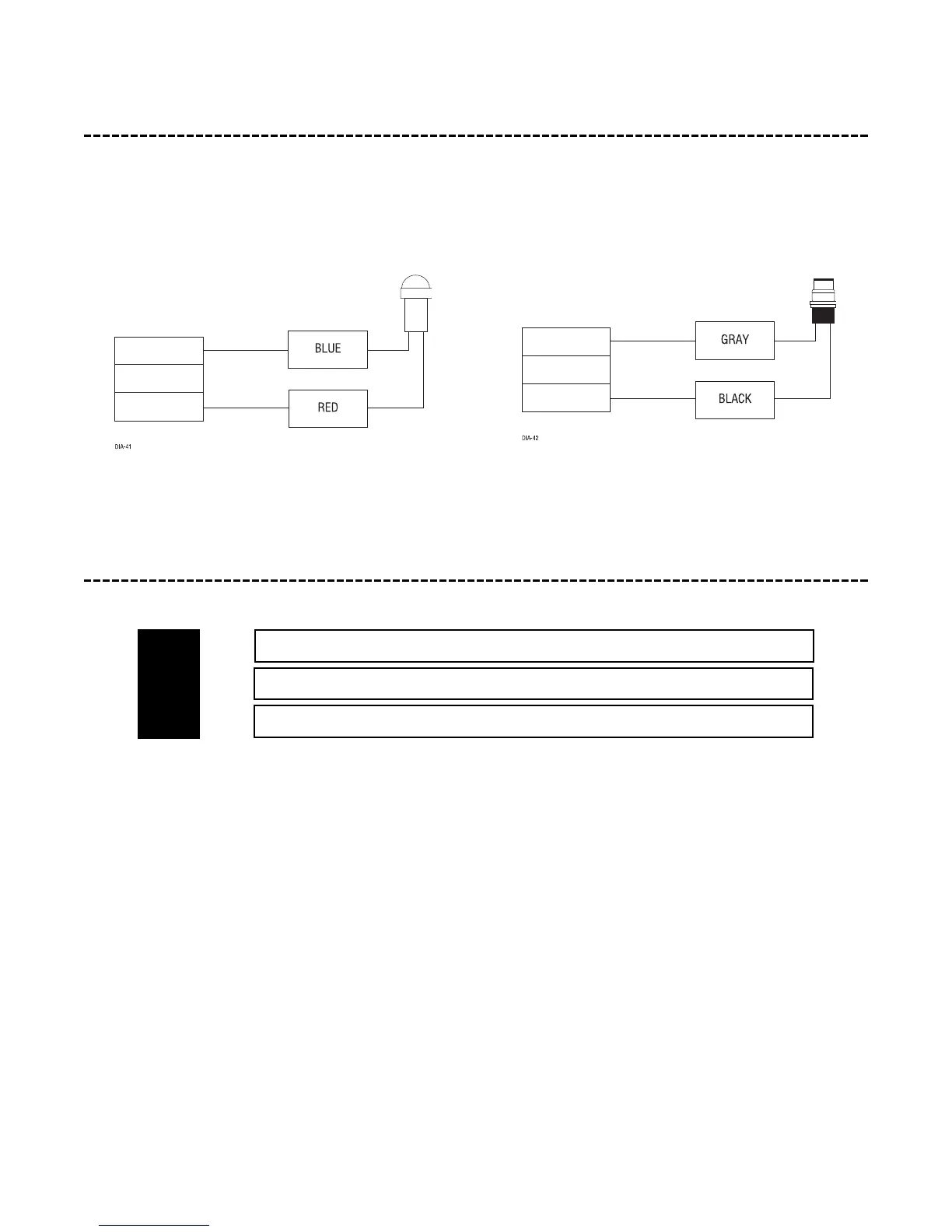

plug-in LED and valet/program switch
These plug into the module. The status LED plugs into the small two-pin socket, while the Valet®/Program switch
should be plugged into the larger blue two-pin connector. The status LED fits in a
9
/32-inch hole.
Status LED Valet®/Program Switch
harness 4, (+/-) door lock outputs
______
______
______
This system can control two common power door lock types without any additional parts! With certain vehicles,
or if an actuator is to be installed, either a 451M Door Lock Relay Satellite or two relays will be required.
IMPORTANT! If you mistake a Type C direct-wired system for a Type A positive-pulse system, the
module will be damaged!
BLUE (-) UNLOCK, (+) LOCK OUTPUT
EMPTY UNLESS USING 451M
GREEN (-) LOCK, (+) UNLOCK OUTPUT
H4/A
H4/B
H4/C
