When the measured present value PV is less than or
equal to the set value SV1 Output 1will turn ON.
When the measured PV is greater than SV1 Output 1
will turn OFF.
When the measured present value PV is less than or
equal to the set value SV2 Output 2 will turn ON.
When the measured PV is greater than SV2 Output 2
will turn OFF.
2Lo1Hi
When the measured present value PV is greater than
or equal to the set value SV1 Output 1 will turn ON.
When the measured PV is less than SV1 Output 1 will
turn OFF.
When the measured present value PV is less than or
equal to the set value SV2 Output 2 will turn ON.
When the measured PV is greater than SV2 Output 2
will turn OFF.
2Hi1Lo
When the measured present value PV is less than or
equal to the set value SV1 Output 1will turn ON. When
the measured PV is greater than SV1 Output 1 will turn
OFF.
When the measured present value PV is greater than
or equal to the set value SV2 Output 2 will turn ON.
When the measured PV is less than SV2 Output 2 will
turn OFF.

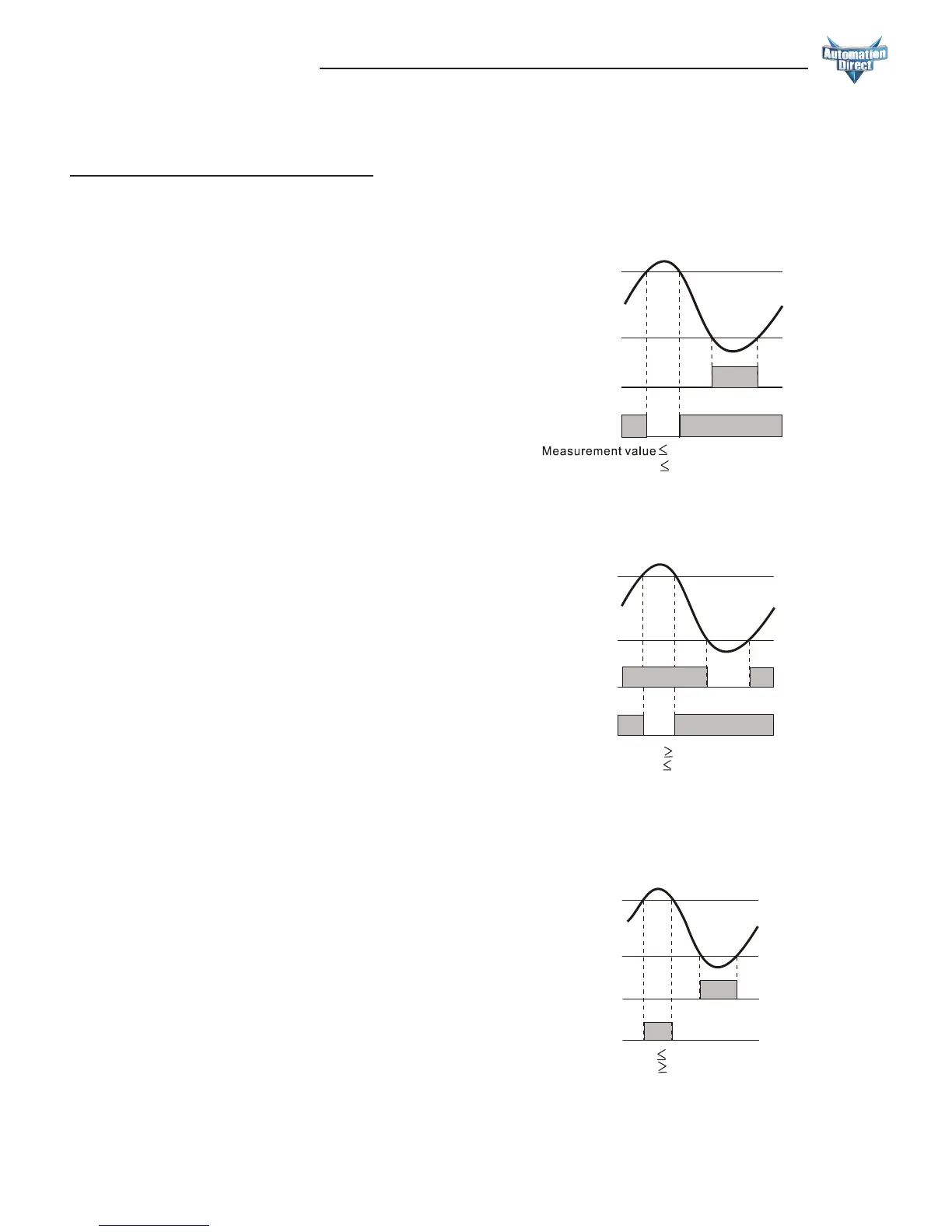

oL1oL2
OUT2 set value
M
easurement value
OUT1 set value
OUT1
OUT2
OUT1 set value : OUT1 ON
Measurement value
OUT2 set value : OUT2 ON
(LO-LO)
iH1oL2
OUT2 set value
Measurement
value
OUT1 set value
OUT1
OUT2
Measurement value
OUT1 set value : OUT1 ON
Measurement value
OUT2 set value : OUT2 ON
(LO-HI)
oL1iH2
OUT2 set value
M
easurement value
OUT1 set value
OUT1
OUT2
(HI-LO)
Measurement value
OUT1 set value : OUT1 ON
Measurement value
OUT2 set value : OUT2 ON
Tachometer Output Modes
