DL06 Micro PLC User Manual, 3rd Edition, Rev. E
3-32
Chapter 3: CPU Specifications and Operation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

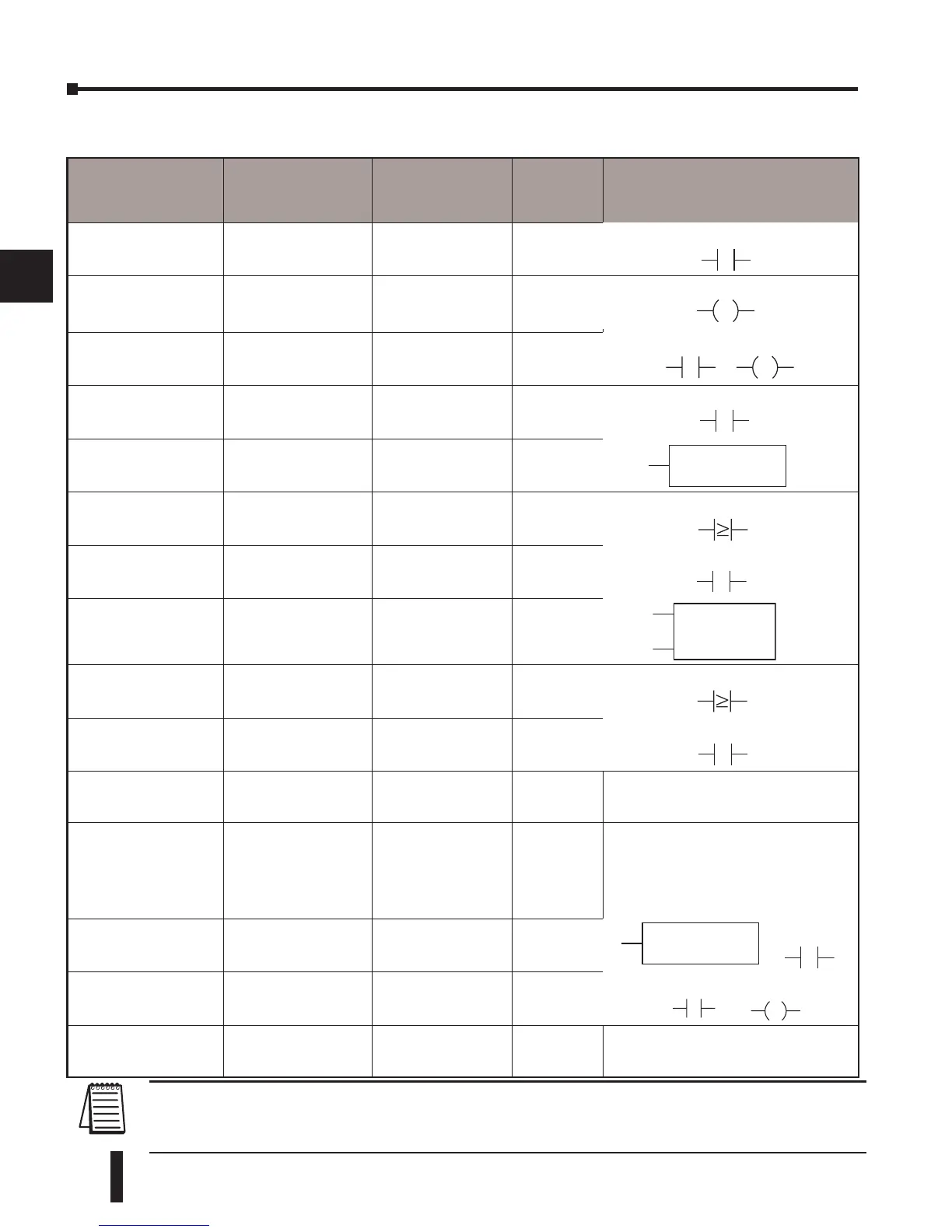

DL06 Memory Map
Memory Type
Discrete Memory
Reference
(octal)
Word Memory
Reference
(octal)
Decimal Symbol
Input Points X0 – X777 V40400 - V40437 512
X0
Output Points Y0 – Y777 V40500 – V40537 512
Y0
Control Relays C0 – C1777 V40600 - V40677 1024
C0C0
Special Relays SP0 – SP777 V41200 – V41237 512
SP0
Timers T0 – T377 V41100 – V41117 256
TMR
K100
T0
Timer Current Values None V0 – V377 256
V0 K100
Timer Status Bits T0 – T377 V41100 – V41117 256
T0
Counters CT0 – CT177 V41140 – V41147 128
CNT
K10
CT0
Counter
Current Values
None V1000 – V1177 128
V1000 K100
Counter Status Bits CT0 – CT177 V41140 – V41147 128
CT0
Data Words
(See Appendix F)
None
V400-V677
V1200 – V7377
V10000 - V17777
192
3200
4096
None specific, used with many
instructions.
Data Words
EEPROM
(See Appendix F)
None V7400 – V7577 128
None specific, used with many
instructions.
May be non-volatile if MOV inst. is used.
Data can be rewritten to EEPROM at least
100,000 times before it fails.
Stages S0 – S1777 V41000 – V41077 1024
SP0
SG
S001
Remote I/O (future use)
(See Note 1)
GX0-GX3777
GY0-GY3777
V40000-V40177
V40200-V40377
2048
2048
GX0
GY0
System parameters None
V700-V777
V7600 – V7777
V36000-V37777
64
128
1024
None specific, used for various purposes
NOTE 1: This area can be used for additional Data Words.
NOTE 2: The DL06 systems have 20 fixed discrete inputs and 16 fixed discrete outputs, but the total
can be increased by up to 64 inputs or 64 outputs, or a combination of both.
