Network Master Operation (using MRX and MWX
Instructions)

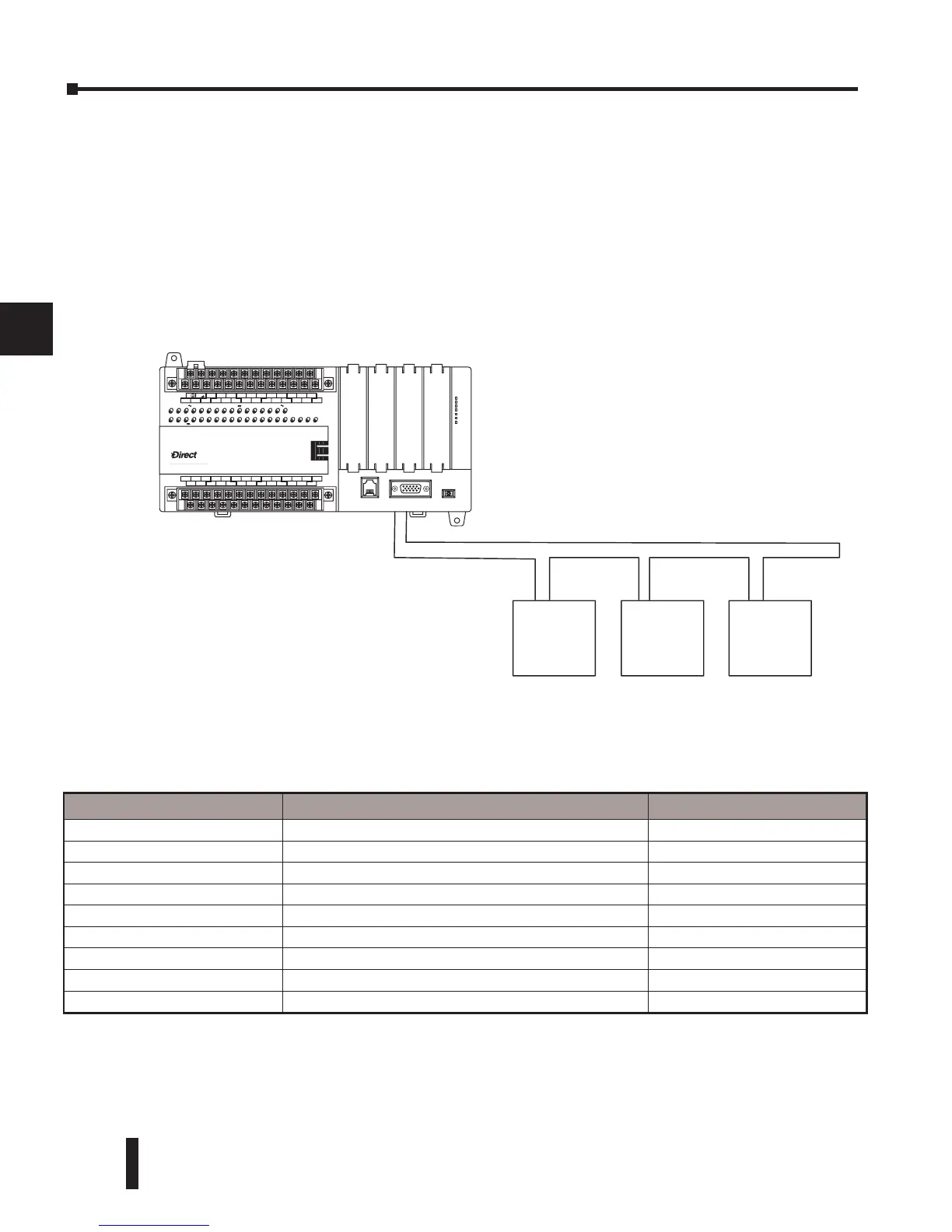

This section describes how the DL06 can communicate on a MODBUS RTU network as a
master using the MRX and MWX read/write instructions. These instructions allow you to
enter native MODBUS addressing in your ladder logic program with no need to perform octal
to decimal conversions. MODBUS is a single master/multiple slave network. The master is the
only member of the network that can initiate requests on the network. This section teaches you
how to design the required ladder logic for network master operation.
MODBUS Function Codes Supported
The MODBUS function code determines whether the access is a read or a write, and whether
to access a single data point or a group of them. The DL06 supports the MODBUS function
codes described below.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
a
b
c
D
MODBUS Function Code Function DL06 Data Types Available
01 Read a group of coils Y, CR, T, CT
02 Read a group of inputs X, SP
05 Set / Reset a single coil (slave only) Y, CR, T, CT
15 Set / Reset a group of coils Y, CR, T, CT
03, 04 Read a value from one or more registers V
06 Write a value into a single register (slave only) V
07 Read Exception Status V
08 Diagnostics V
16 Write a value into a group of registers V
