DL06 Micro PLC User Manual, 3rd Edition, Rev. E
5-15
Chapter 5: Standard RLL Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

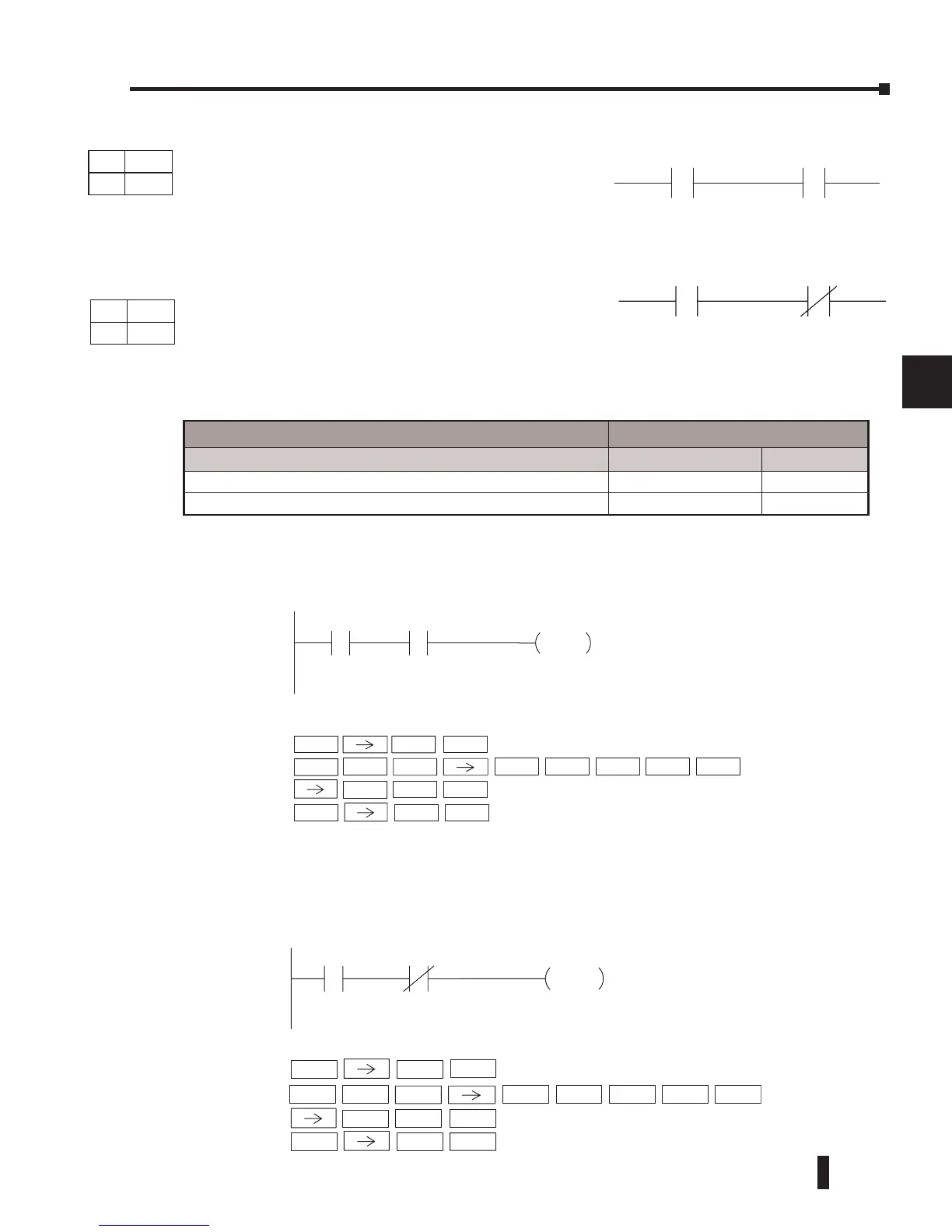

In the following And Bit-of-Word example, when input X1 and bit 4 of V1400 is on output
Y5 will energize.
In the following And Not Bit-of-Word example, when input X1 is on and bit 4 of V1400 is
off output Y5 will energize.
Aaaa.bb
Aaaa.bb
Operand Data Type DL06 Range
A
aaa bb
V-memory B See memory map 0 to 15
Pointer PB See memory map 0 to 15
Y5
OUT
X1 B1400.4
DirectSOFT32
OUT 5
ENT
Handheld Programmer Keystrokes
V 1SHFT 4 0 0
4 ENT
K
B
STR 1
ENT
AND
X1
Y5
OUT
B1400.4
DirectSOFT32
STR 1
Handheld
Programmer Keystrokes
OUT 5
ANDN
V 1SHFT 4 0 0
4 ENT
K
B
ENT
ENT
DS Implied
HPP Used
DS Implied
HPP Used
DirectSOFT
DirectSOFT
AND Bit-of-Word (AND)
The And Bit-of-Word instruction logically ands
a normally open contact in series with another
contact in a rung. The status of the contact will be
the same state as the bit referenced in the associated
memory location.
AND Not Bit-of-Word (ANDN)
The And Not Bit-of-Word instruction logically
ands a normally closed contact in series with
another contact in a rung. The status of the contact
will be opposite the state of the bit referenced in the
associated memory location.
