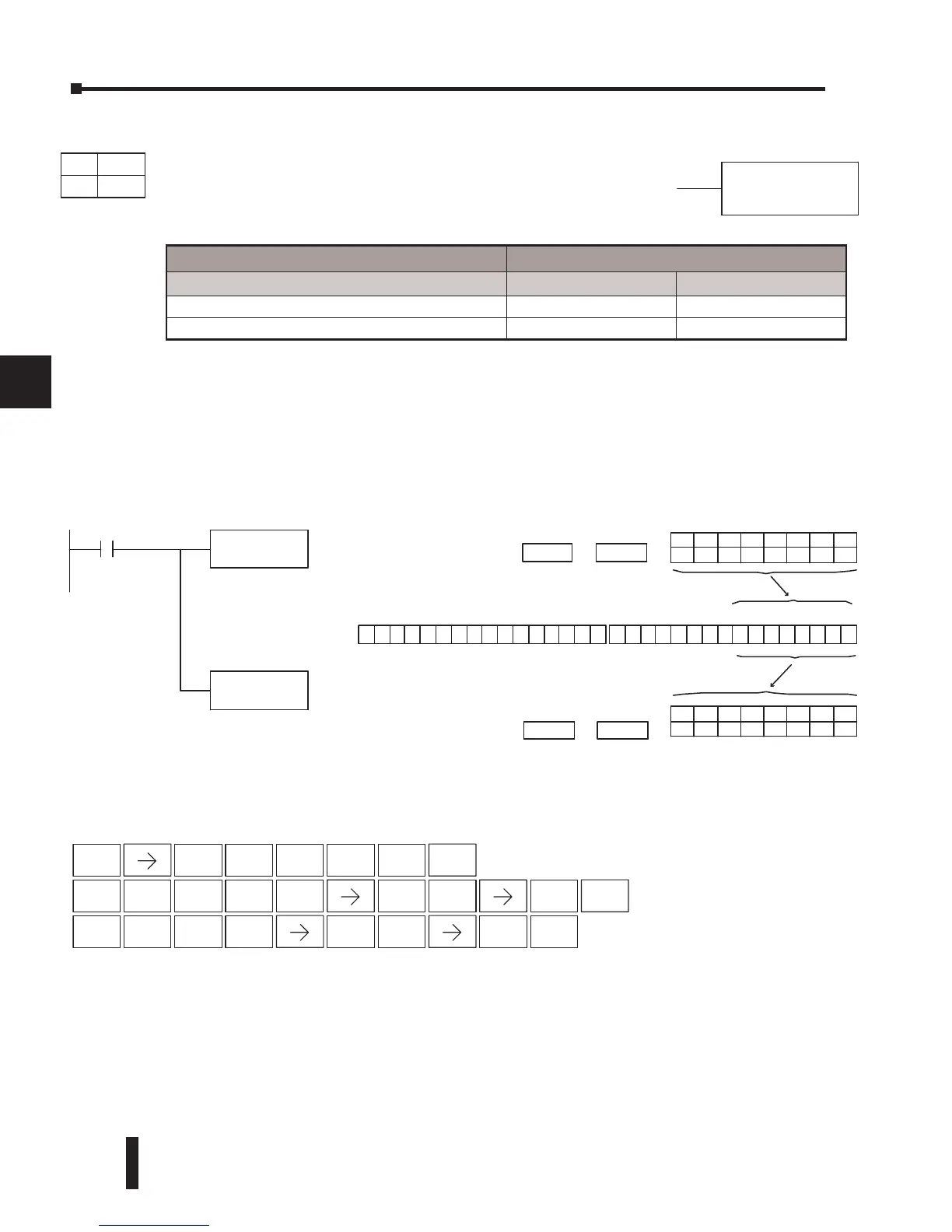

Load Immediate Formatted (LDIF)
The Load Immediate Formatted instruction loads a 1–32 bit
binary value into the accumulator. The value reflects the current
status of the input module(s) at the time the instruction is executed.
Accumulator bits that are not used by the instruction are set to zero.
In the following example, when C0 is on, the binary pattern of X10–X17 will be loaded
into the accumulator using the Load Immediate Formatted instruction. The Out Immediate
Formatted instruction could be used to copy the specified number of bits in the accumulator
to the specified outputs on the output module, such as Y30–Y37. This technique is useful to
quickly copy an input pattern to outputs (without waiting for the CPU scan).
K bbb
Xaa
aLDIF
LDIF X10
K8
C0
Load thevalue of 8
consecutivelocationintothe
accumulatorstarting with
X1
0
OUTIFY30
K8
Copy thevalue of thelower
8bitsofthe accumulatorto
Y30--Y37
K8
X10
LocationConstant
00000000101101
01
0000000000000000
15 14 13 12 11 10 98765 4 321031 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1631 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
Acc.
K8Y30
LocationConstant
X10
X11X12X13X14X15X16X17
ONOFFONOFFONONOFFON
Y30Y31Y32Y33Y34Y35Y36Y37
ONOFFONOFFONONOFFON
DirectSOFT32
Unused accumulatorbits
areset to zero
