DL06 Micro PLC User Manual, 3rd Edition, Rev. E
5-106
Chapter 5: Standard RLL Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
NOTE: Status flags are valid only until another instruction uses the same flag.
In the following example, when X6 is on, the BCD value formed by discrete locations
X0–X3 is loaded into the accumulator using the LDF instruction. The BCD value formed
by discrete locations C0–C3 is added to the value in the accumulator using the ADDF
instruction. The value in the lower four bits of the accumulator is copied to Y10–Y13 using
the OUTF instruction.
bbbK
ADDF A aaa
Discrete Bit Flags Description
SP63 On when the result of the instruction causes the value in the accumulator to be zero.
SP66 On when the 16-bit addition instruction results in a carry.
SP67 On when the 32 bit addition instruction results in a carry.
SP70 On anytime the value in the accumulator is negative.
SP73 On when a signed addition or subtraction results in an incorrect sign bit.
SP75 On when a BCD instruction is executed and a NON-BCD number was encountered.
Operand Data Type DL06 Range
A
aaa bbb
Inputs X 0–777 ––
Outputs Y 0–777 ––
Control Relays C 0–1777 ––
Stage Bits S 0–1777 ––
Timer Bits T 0–377 ––
Counter Bits CT 0–177 ––
Special Relays SP 0-137 320-717 ––
Global I/O GX 0-3777 ––
Constant K –– 1–32
DirectSOFT
LDF X0
K4
X6
Load the BCD value represented
by discrete locations X0–X3
into the accumulator
ADDF C0
K4
Add the BCD value in the
accumulator with the value
represented by discrete
location C0–C3
OUTF Y10
K4
Copy the lower 4 bits of the
accumulator to discrete
locations Y10–Y13
+
0000000 8
(C0-C3)
(Accumulator)
3
X0X1X2X3
OFFOFF
OFF
ON
C0C1C2C3
ONONOFFOFF
Y10Y11Y12Y13
ONOFFOFFOFF
The unused accumulator
bits are set to zero
Acc.
Handheld Programmer Keystrokes
STR
$
SHFT
3
D
3
D
OUT
GX
SHFT
5
F
0
A
4
E
ENT
6
G
ENT
1
B
4
E
0
A
ENT
SHFT
ANDST
L
3
D
0
A
4
E
ENT
5
F
5
F
0
A
NEXT NEXT NEXTNEXT
0 110 0 0 0 0
DS Used
HPP Used

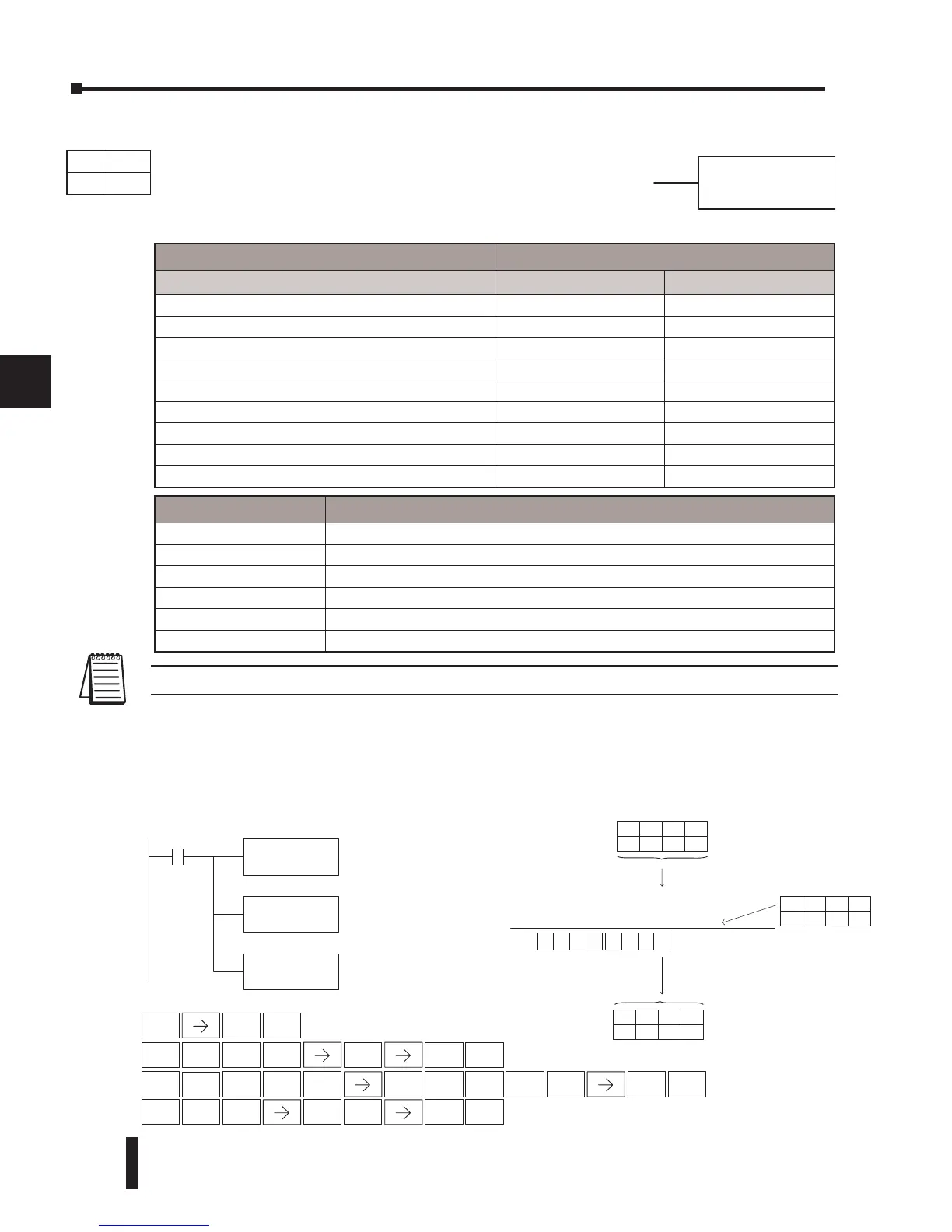

Add Formatted (ADDF)
Add Formatted is a 32-bit instruction that adds the BCD value
in the accumulator with the BCD value (Aaaa) which is a range
of discrete bits. The specified range (Kbbb) can be 1 to 32
consecutive bits. The result resides in the accumulator.
