DL06 Micro PLC User Manual, 3rd Edition, Rev. E
Chapter 1: Getting Started
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
1-4

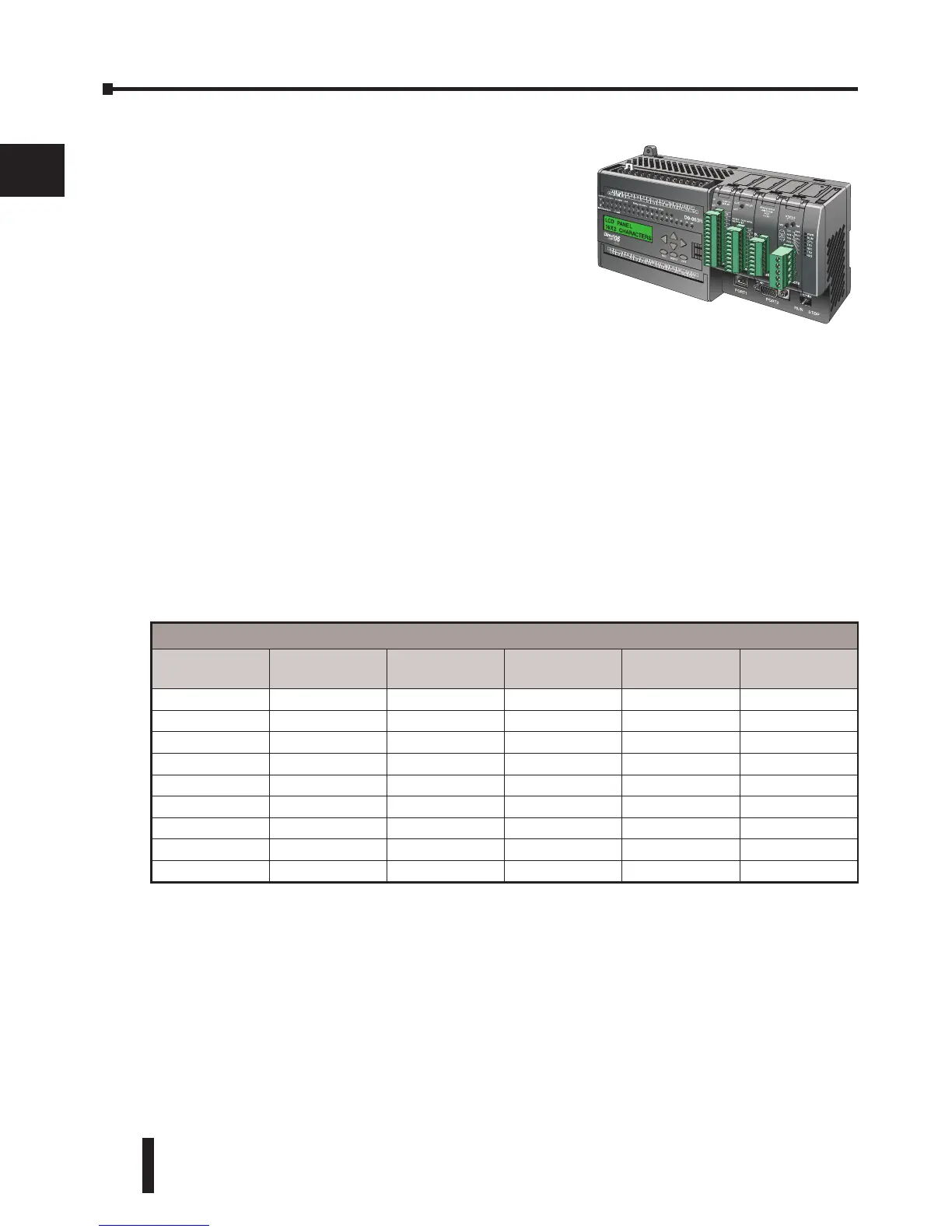

DL06 Micro PLC Overview
The DL06 PLC Features
The DL06 Micro PLC family includes nine different versions. All have the same appearance
and CPU performance. The CPU offers an instruction set very similar to our powerful new
DL260 CPU including new easy to use ASCII and MODBUS instructions. All DL06 PLCs
have two built-in communications ports that can be used for programming, operator interface,
networking, etc.
Units with DC inputs have selectable high-speed input features on four input points. Units
with DC outputs offer selectable pulse output capability on the first and second output points.
Details of these features and more are covered in Chapter 3, CPU Specifications and Operation.
There are nine versions of the DL06 PLC. The most common industrial I/O types and power
supply voltages are available. Consult the following table to find the model number of the PLC
that best fits your application.
DirectSOFT Programming for Windows™
The DL06 Micro PLC can be programmed with DirectSOFT, a Windows-based software
package that supports familiar features such as cut-and-paste between applications, point-and-
click editing, viewing and editing multiple application programs at the same time, floating
views, intelligent boxes, etc. Firmware version 2.10 is needed in order to use the intelligent
boxes.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
a
b
c
D
DL06 Micro PLC Family
DL06 Part
Number
Discrete Input
Type
Discrete Output
Type
External Power
High-Speed
Input
Pulse Output
D0–06AA
AC AC 95–240 VAC No No
D0–06AR
AC Relay 95–240 VAC No No
D0–06DA
DC AC 95–240 VAC Yes No
D0–06DD1
DC DC Sinking 95–240 VAC Yes Yes
D0–06DD2
DC DC Sourcing 95–240 VAC Yes Yes
D0–06DR
DC Relay 95–240 VAC Yes No
D0–06DD1–D
DC DC Sinking 12–24 VDC Yes Yes
D0–06DD2–D
DC DC Sourcing 12–24 VDC Yes Yes
D0–06DR–D
DC Relay 12–24 VDC Yes No
The DL06 micro PLC family is a versatile product
line that combines powerful features and a very
compact footprint. The DL06 PLCs offer expandable
I/O, high-speed counter, floating point, PID, etc.
There are a number of communication options and
an optional LCD display.
