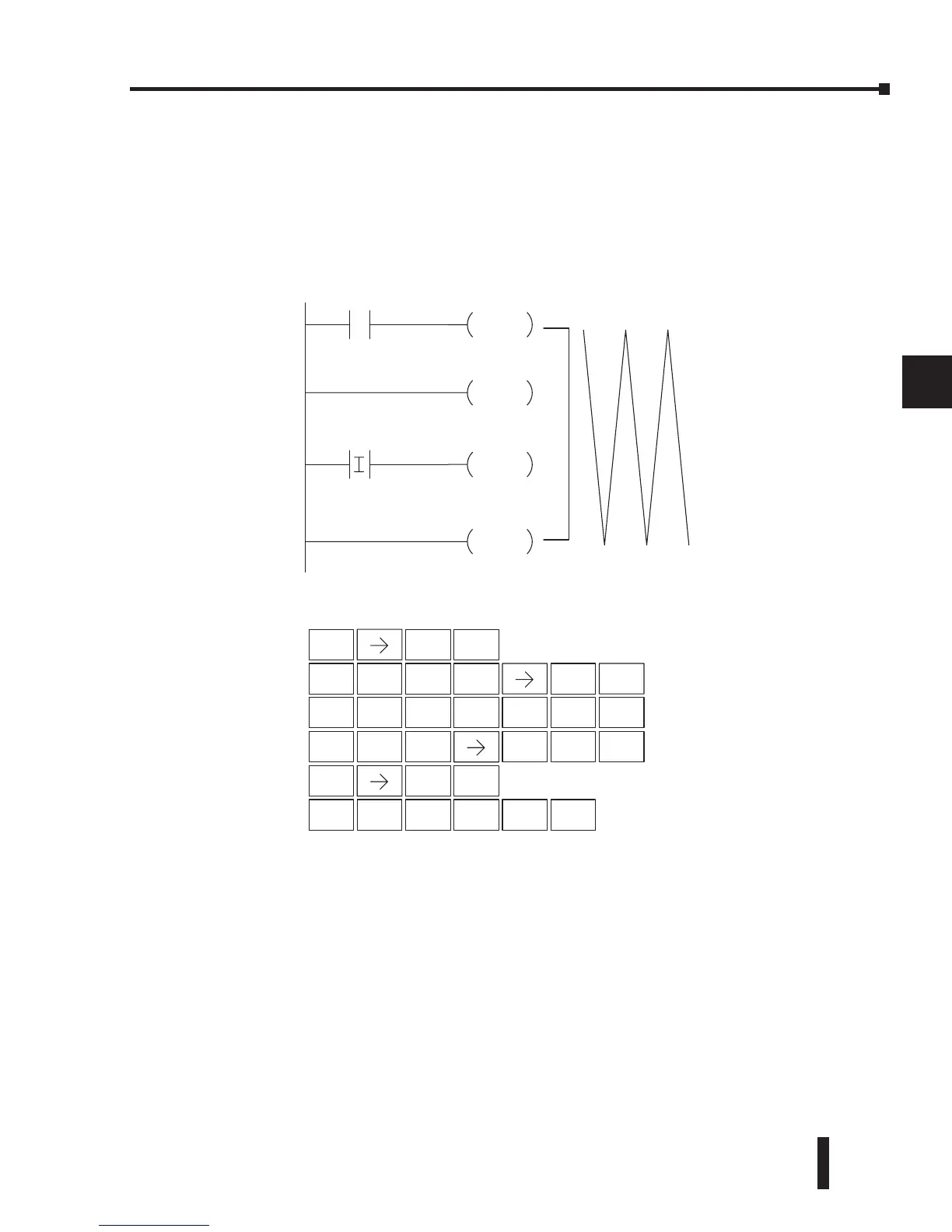

In the following example, when X1 is on, the application program inside the For / Next loop
will be executed three times. If X1 is off, the program inside the loop will not be executed. The
immediate instructions may or may not be necessary, depending on your application. Also,
The RSTWT instruction is not necessary if the For / Next loop does not extend the scan time
beyond the Watch Dog Timer setting. For more information on the Watch Dog Timer, refer
to the RSTWT instruction.
X1
