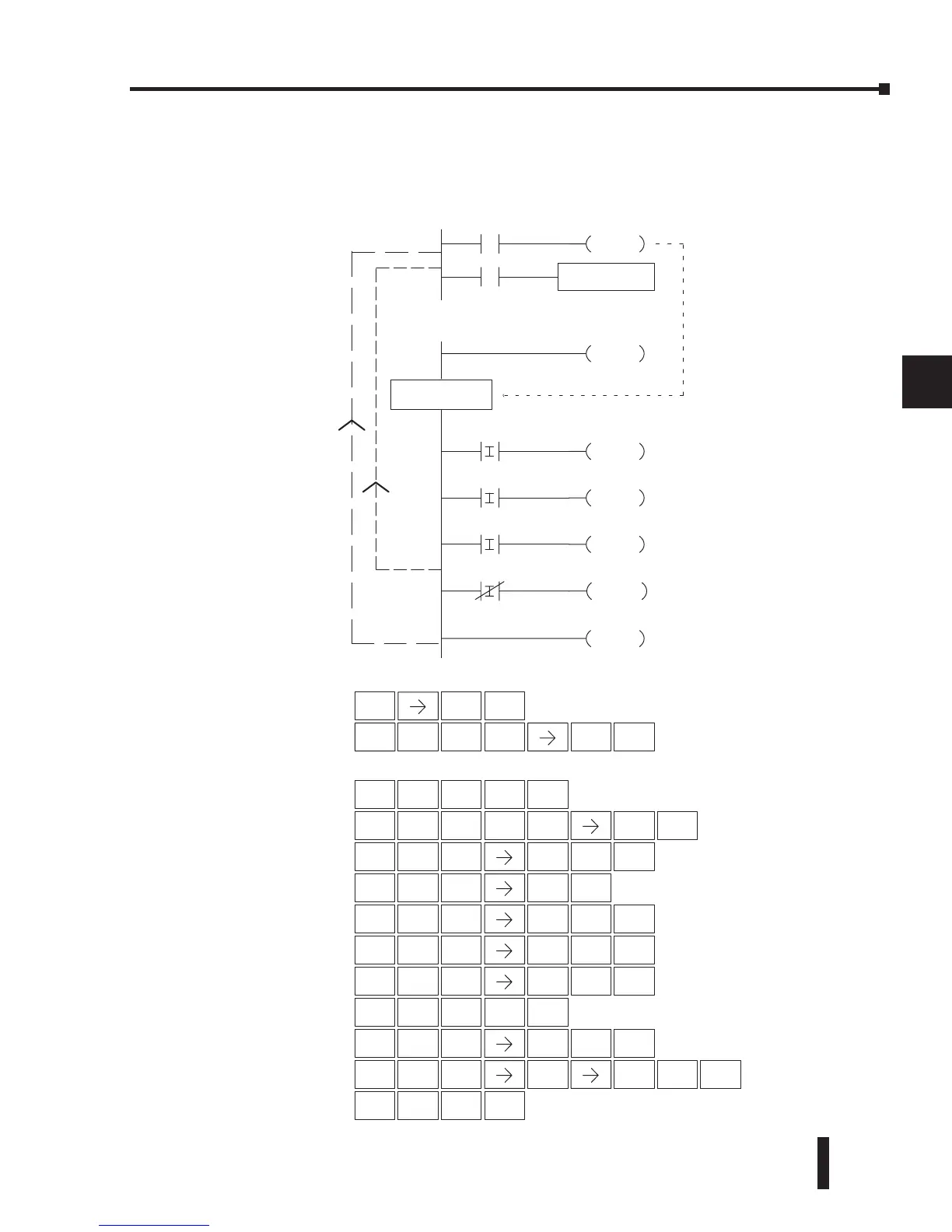

In the following example, when X1 is on, Subroutine K3 will be called. The CPU will jump to
the Subroutine Label K3 and the ladder logic in the subroutine will be executed. If X35 is on,
the CPU will return to the main program at the RTC instruction. If X35 is not on, Y0–Y17
will be reset to off and the CPU will return to the main body of the program.
