Chapter 5: Standard RLL Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Parameter
Data Destination All V–memory
Fixed Length K1–128
Bits: Busy, Complete,
Timeout Error, Overflow
C0–3777

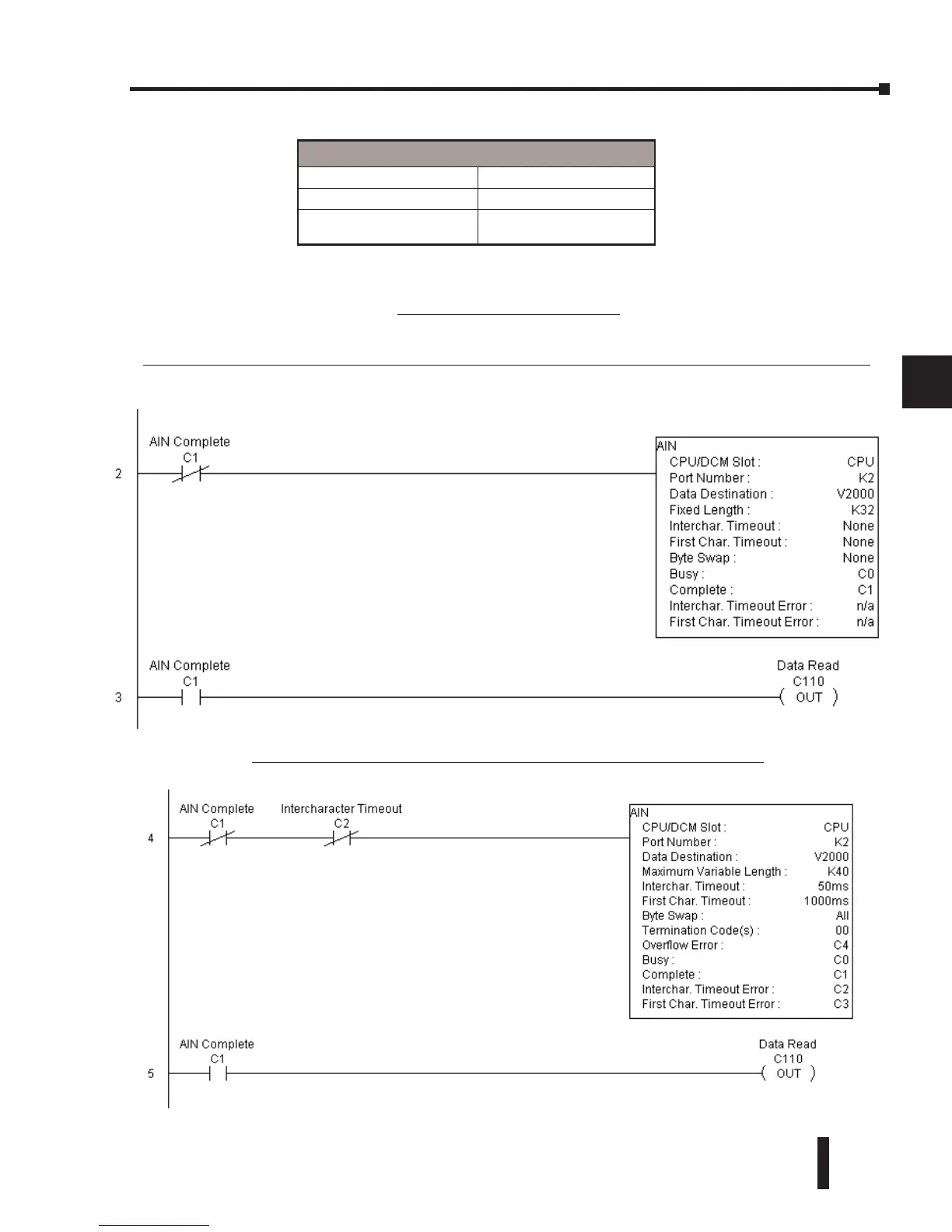

AIN Fixed Length Examples
Fixed Length example when the PLC is reading the port continuously and timing is not critical
Fixed Length example when character to character timing is critical
To Next Page
